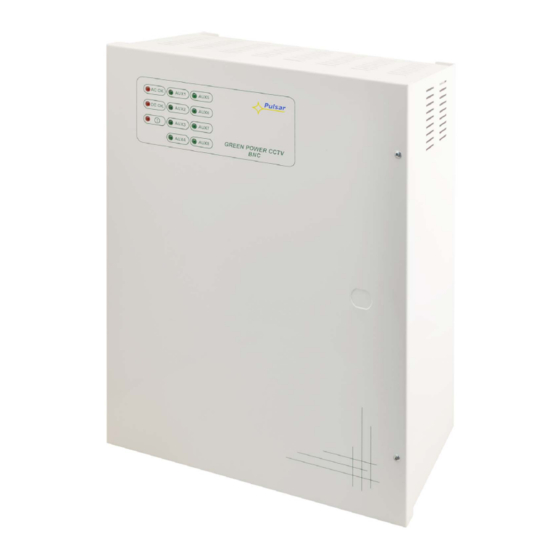

- Page 1 BNC08128C v.1.0 BNC 13,8V/8x1A/17Ah Switch mode buffer power supply unit for CCTV. EN** Edition: 1 from 26.11.2013 Supersedes the edition: ------...
-
Page 2: Table Of Contents
GREEN POWER CCTV BNC www.pulsar.pl BNC08128C PSU features: • • DC 13,8V/8x1A uninterruptible power supply Voltage control at the AUX1 ÷ AUX8 outputs • • battery housing for one 17Ah/12V battery FPS technical output – indication of the • output fuse activation– relay and OC type wide range of supply voltage: 176÷264V AC... -
Page 3: Block Diagram
GREEN POWER CCTV BNC www.pulsar.pl BNC08128C 1.2. Block diagram. Figure 1. Block diagram of the PSU. 1.3. The description of components and connectors of the PSU. Table 1. Component No. Description [Figure 2] LED optical indication: green L – indication of voltage at the IN input... - Page 4 GREEN POWER CCTV BNC www.pulsar.pl BNC08128C Figure 2. Components arrangement. Figure 3. The view of the PSU. Component No. Description [Figure 3] The module of the switch mode PSU LED light indicating correct operation of the switch mode PSU ADJ potentiometer – regulation of the power supply output voltage...
-
Page 5: Technical Parameters
GREEN POWER CCTV BNC www.pulsar.pl BNC08128C TAMPER – microswitch (contacts) of antisabotage protection (NC) Connectors for connecting the batteries: +BAT = red, - BAT = black Table 2. Components of the PSU (see Figure 3). 1.4. Technical parameters. - electrical parameters (Table 3) -
Page 6: Installation
GREEN POWER CCTV BNC www.pulsar.pl BNC08128C Safety of use (Table 5). Protection class PN-EN 60950-1:2004 I (first) Protection grade PN-EN 60529: 2002 (U) IP20 Insulation electrical strength: - between input (network) circuit and the output circuits of the PSU (I/P-O/P) 3000 V/AC min. -
Page 7: Installation Procedure
GREEN POWER CCTV BNC www.pulsar.pl BNC08128C 2.2. Installation procedure. 1. Before installation, cut off the voltage in the 230V power-supply circuit. 2. Mount the PSU in a selected location and lead the connecting cables. 3. Connect the power cables (230V AC) to L-N terminals of the PSU. Connect the ground wire to the terminal marked with grounding symbol: . -
Page 8: Power Supply Operation Indication
GREEN POWER CCTV BNC www.pulsar.pl BNC08128C Selection jumper for charging current: Ibat =1 A Ibat =4 A Description: jumper on, jumper off. Factory setting: Ibat =1A (jumper on). Figure 5. Selection jumper for charging current. 9. Connect the battery according to the color markings:... -
Page 9: Technical Outputs
GREEN POWER CCTV BNC www.pulsar.pl BNC08128C 3.2. Technical outputs. The PSU has the following indication outputs: • FPS – technical output of the PSU status: - OC type output indicating failure (short-circuit, overload). During normal operation, shorted to ground – L state (0V). - Page 10 GENERAL WARRANTY CONDITIONS 1. Pulsar K. Bogusz Sp.j. (manufacturer) grants a two-year quality warranty for the equipment, starting from the production date. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (selected by the manufacturer) if the malfunction is due to the manufacturer.
