- Page 1 BNC04124 v.1.0 BNC 12V/4x1A Switch mode power supply unit for CCTV. EN** Edition: 1 from 26.11.2013 Supersedes the edition: ------...
-
Page 2: Table Of Contents
GREEN POWER CCTV BNC www.pulsar.pl BNC04124 PSU features: • • supply output 4x1A/12V DC LED optical indication • • output voltage adjustment 12V÷15V DC FPS technical output – indication of the • output fuse activation– relay and OC type wide range of supply voltage: 176÷264V AC •... -
Page 3: Description Of Components And Connectors Of The Psu
GREEN POWER CCTV BNC www.pulsar.pl BNC04124 1.3. The description of components and connectors of the PSU. Table 1. Component No. Description [Figure 2] LED optical indication: [1], [11] green L – indication of voltage at the IN input red L –FPS failure indication... -
Page 4: Technical Parameters

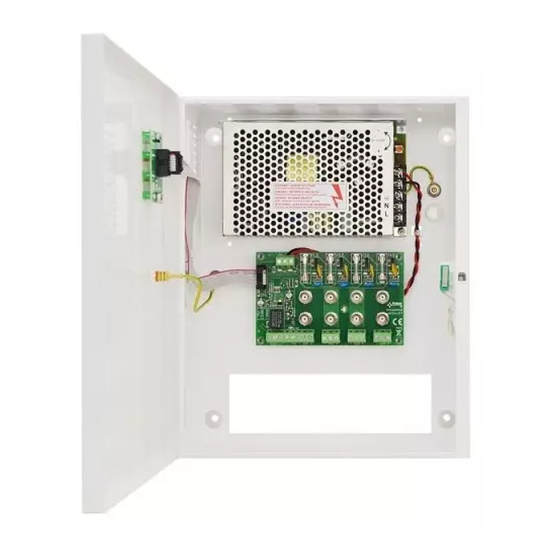

GREEN POWER CCTV BNC www.pulsar.pl BNC04124 Figure 3. The view of the PSU. Component No. Description [Figure 3] The module of the switch mode PSU LED light indicating correct operation of the switch mode PSU ADJ potentiometer - regulation of the power supply output voltage in the range of 12V÷15V DC... -
Page 5: Installation
GREEN POWER CCTV BNC www.pulsar.pl BNC04124 - TAMPER output indicating enclosure opening - microswitch, NC contacts (enclosure closed), 0,5A@50V DC (max.) Optical indication of operation: YES – LED lights Technical outputs: - FPS technical output indicating output fuse - OC type, 50mA max. -
Page 6: Installation Procedure
GREEN POWER CCTV BNC www.pulsar.pl BNC04124 assigning an appropriate fuse in the fuse box). The electrical system shall be made in accordance with applicable standards and regulations. 2.2. Installation procedure. 1. Before installation, cut off the voltage in the 230V power-supply circuit. -
Page 7: Technical Outputs
GREEN POWER CCTV BNC www.pulsar.pl BNC04124 RED LED: • on – DC voltage at the output of the switch mode PSU • off – no DC voltage at the output of the switch mode PSU RED LED: • on – fuse failure at one of the AUX1…AUX4 outputs •... -
Page 8: Service And Operation
GENERAL WARRANTY CONDITIONS 1. Pulsar K. Bogusz Sp.j. (manufacturer) grants a two-year quality warranty for the equipment, starting from the production date. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (selected by the manufacturer) if the malfunction is due to the manufacturer.
