T
STILL Button
ON/OFF Button: Activates/deactivates still picture mode.
CAPTURE Button: Captures still picture.
NOTE: This function deactivates when selecting MULTI
PICTURE MODE, TEXT TICKER, SCREEN SAVER, POINT
ZOOM, IMAGE FLIP except for NONE, SUPER in INPUT
CHANGE, TILE MATRIX.
CLOSED CAPTION is not available when STILL is active.
If input signal is OPTION, this button's actions depend on
which option board you are using.
IMAGE FLIP Button
Toggle switches between [H FLIP], [V FLIP], [180° ROTATE]
and [NONE]. See page 34.
ACTIVE PICTURE Button
Selects active picture.
MULTI PICTURE Button
ON/OFF Button: Toggle switches between ON and OFF.
MODE Button: Selects a mode from PIP (picture in picture)
or PBP (picture by picture).
CHANGE Button: Swaps images between two pictures.
PICTURE ASPECT Button: Selects active picture frame
aspect.
NOTE: Enable to change each multi picture size by pressing
SET/POINT ZOOM button during multi picture mode.
REMOTE ID Button
Activates the REMOTE ID function. See page 46.
MTS Button*
1
Button*
1
Activates closed captioning.
NOTE: VIDEO input only.
*1: This button's action depends on which option board you are using.
Refer to the option board's user's manual for further information.
NOTE:
The buttons with no explanation do not function.
See page 46.
English-13

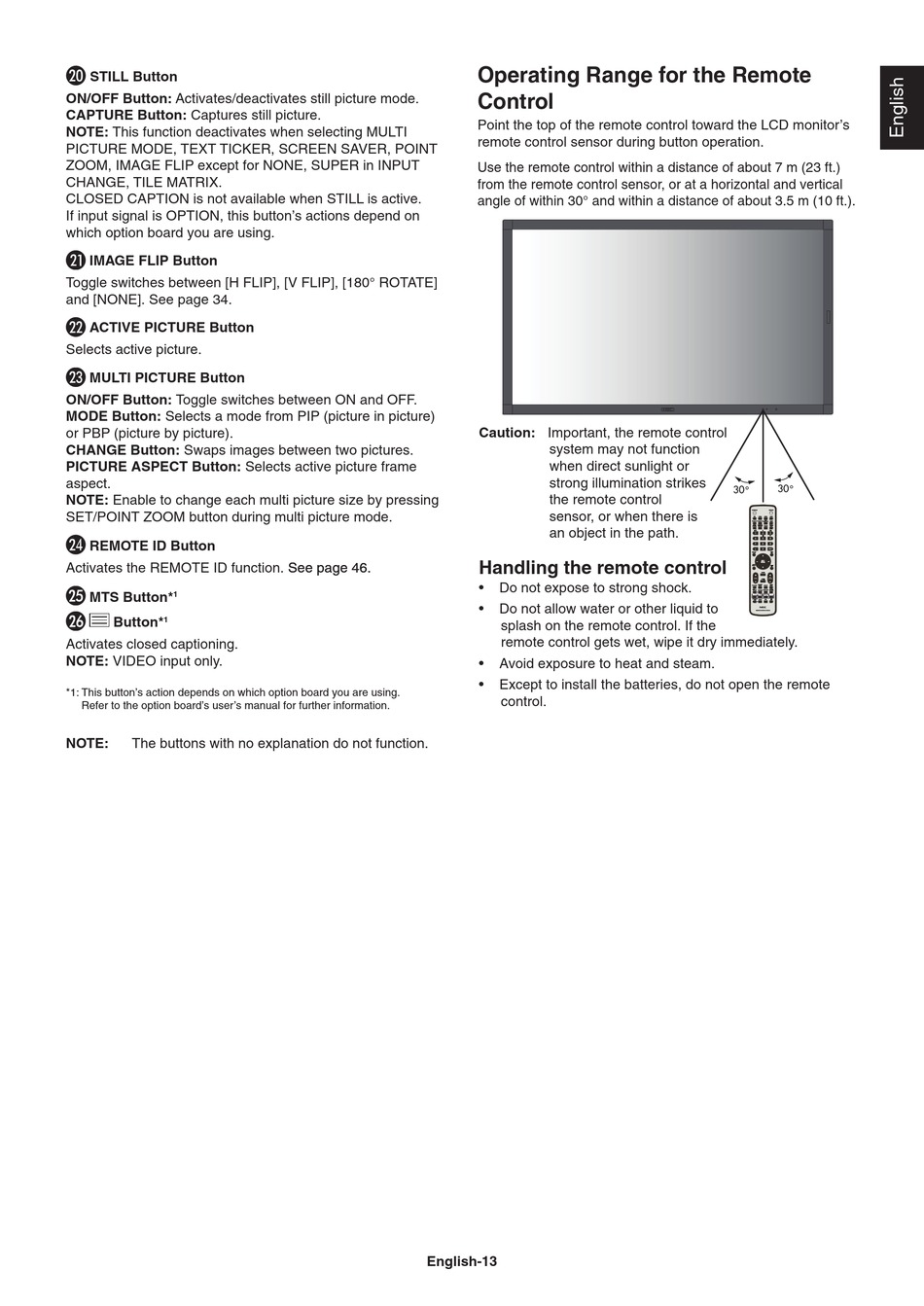

Operating Range for the Remote
Control
Point the top of the remote control toward the LCD monitor's
remote control sensor during button operation.
Use the remote control within a distance of about 7 m (23 ft.)
from the remote control sensor, or at a horizontal and vertical
angle of within 30° and within a distance of about 3.5 m (10 ft.).
Caution: Important, the remote control
system may not function
when direct sunlight or
strong illumination strikes
the remote control
sensor, or when there is
an object in the path.
Handling the remote control
• Do not expose to strong shock.
• Do not allow water or other liquid to
splash on the remote control. If the
remote control gets wet, wipe it dry immediately.
• Avoid exposure to heat and steam.
• Except to install the batteries, do not open the remote
control.
