AUTO DIMMING*
1
AUTO BRIGHTNESS
DVI, DisplayPort1, DisplayPort2,
VGA (RGB), MP, OPTION*
inputs only
3
ROOM LIGHT
SENSING
HUMAN SENSING*
2
DISABLE
AUTO OFF
CUSTOM
POWER INDICATOR
POWER INDICATOR
SCHEDULE
INDICATOR
NETWORK FUNCTIONS
*1: If SPECTRAVIEW ENGINE is ON, this function is grayed out.
*2: The function is available only when connecting the optional sensor unit.
*3: When you select OPTION for signal input, this function depends on which option board you are using.
Adjusts the backlight of the LCD automatically depending on the amount of ambient light.
Adjusts the brightness level according to the input signal.
NOTE: Do not select this function when ROOM LIGHT SENSING is MODE1 or MODE2.
The backlight of the LCD screen can be set to increase or decrease depending on the amount of ambient light
within the room. If the room is bright, the monitor becomes correspondingly bright. If the room is dim, then the
monitor will dim accordingly. The purpose of this function is to make the viewing experience more comfortable to
the eye in a variety of lighting conditions.
NOTE: When ROOM LIGHT SENSING is set, BACKLIGHT, AUTO BRIGHTNESS and BACKLIGHT in SCREEN
SAVER functions are disabled.
Do not cover the room light sensing sensor when you use MODE1 or MODE2.
AMBIENT parameter setting
ROOM LIGHT SENSING in OSD, select MODE1 or MODE2 and set MAX LIMIT, IN BRIGHT and IN DARK in
each mode.
MAX LIMIT: This is the max level of backlight, which you set.
IN BRIGHT: This is the backlight level that the monitor will go up to when the ambient light level is highest.
IN DARK: This is the level of backlight that the monitor will go down to when the ambient light level is low.

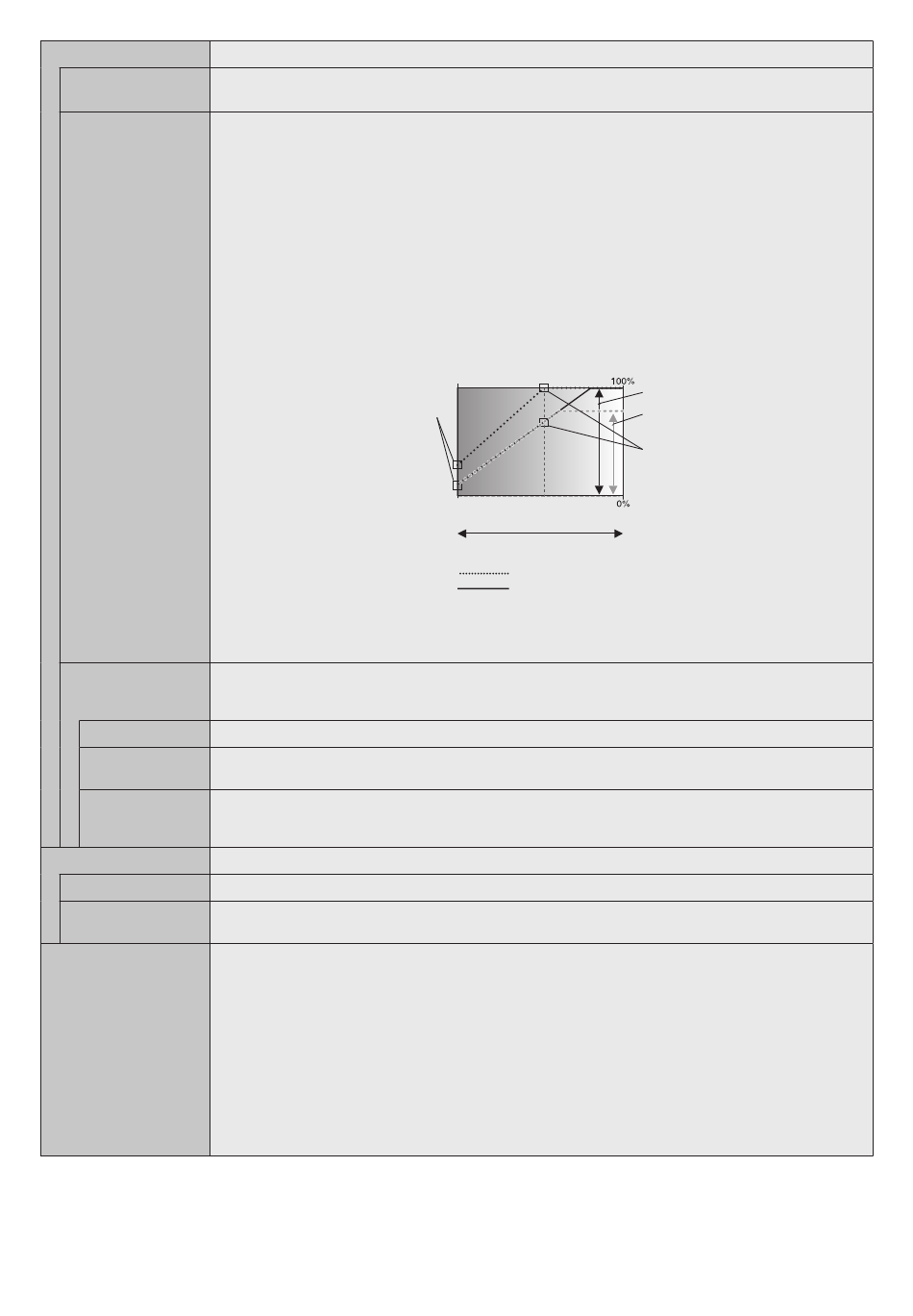

When the ROOM LIGHT SENSING is enabled the Backlight level of the screen changes automatically according
to the lighting conditions of the room (see figure below).
BACKLIGHT level set for
the monitor to use when
ambient lighting level is
low.
MAX LIMIT: BACKLIGHT level is limited to your set level.
IN DARK: BACKLIGHT level set for the monitor to use when ambient lighting level is low.
IN BRIGHT: BACKLIGHT level set for the monitor to use when ambient lighting level is high.
HUMAN SENSING has three settings.
NOTE: POWER SAVE is disabled when AUTO OFF or CUSTOM is selected in HUMAN SENSING.
HUMAN SENSING is released if INPUT DETECT is set while HUMAN SENSING is active.
No human sensing.
At the preset time, when no person is detected, BACKLIGHT and VOLUME automatically go into OFF. When a
person comes near the monitor again, the monitor will automatically return to normal mode.
BACKLIGHT and VOLUME automatically shift to the set value when detecting no person. When a person comes
near the monitor again, the monitor automatically returns to normal mode and reproduces the input signal
selected in INPUT SELECT.
Turns the LED on or off. If OFF is selected, the LED will not glow when the LCD monitor is in active mode.
Turns the LED on or off depending on a schedule activity which is set at "SCHEDULE SETTINGS". If OFF is
selected, the LED will not glow even if a schedule is in active mode.
Individually enable or disable the networking component for these monitor functions:
DISPLAY: Enables or disables the network function for controlling the monitor remotely.
When disabled, these functions do not work: External Control, Mail, Daisy chain functions, HTTP server, SNMP,
Crestron, AMX, PJLink.
NOTE: If you disable DISPLAY, monitor control in a daisy chain configuration is not available. Please be aware of
the impact in multi-monitor installations before disabling it.
COMPUTE MODULE: Enables or disables the network function for the Compute Module Interface Board only.
MEDIA PLAYER: Enables or disables the network function for the Media Player only.
When disabled, these functions do not work: SHARED FOLDER SETTINGS and SHARED SD CARD
SETTINGS.
Under APPLY, Highlight YES then press SET to save your selection. If you do not press SET when YES is
highlighted, your selections are not saved.
NOTE: To apply a firmware version update over the network, DISPLAY and MEDIA PLAYER must be enabled.
Factory Setting
IN DARK
IN BRIGHT
room bright condition
dark
Screen Backlight value by MODE1
Screen Backlight value by MODE2
English-42
BACKLIGHT range
BACKLIGHT range when
set to MAX LIMIT.
BACKLIGHT level set
for the monitor to use
when ambient lighting
level is high.
bright
