Summary of Contents for Ronstan Andersen 18ST FS

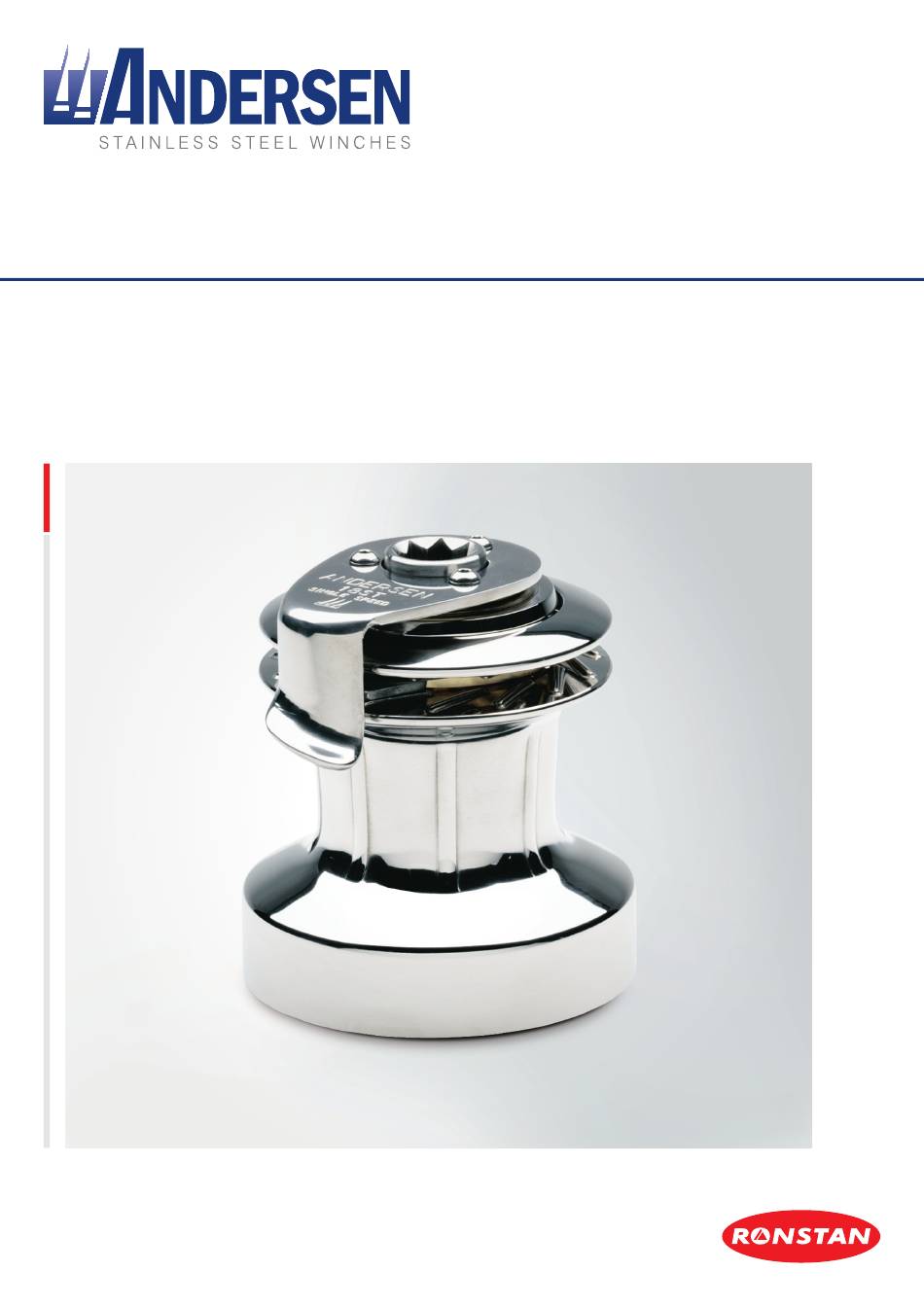

- Page 1 PRODUCT MANUAL 18ST FS (V.1.0.F) RON-WPM-710218-18STFS-Rev.2...
- Page 2 18ST FS (V.1.0.F) EXPLODED VIEW POS. 3 - 537551 POS. 3 - 537511...
- Page 3 18ST FS (V.1.0.F) PARTS LIST ITEM NO. QTY. DESCRIPTION PART NO. Screw ISO 7380-A4-M5x12 Self-tailing arm 786100 Self-tailing top complete 537551 Model ST Self-tailing top complete 537511 Model ST FS Circlip 726400U Top ring 782100 Screw 781811 Disc 726310 Model ST (537551 only) Drum complete 773600 Drive shaft complete...
- Page 4 18ST FS (V.1.0.F) MOUNTING INSTRUCTIONS Installing the winch is easy, if you follow these instructions. The numbers in ( ) refer to the position numbers in the parts list. Tools required for the installation: • Allen key (3 mm) • 6 x M6 (1/4”) countersunk head screws and corresponding • Allen key (5 mm) nuts (length depending on deck thickness).
- Page 5 18ST FS (V.1.0.F) SERVICE INSTRUCTIONS Tools required for service: • Screwdriver (large) • Allen key (3 mm) • Screwdriver (small) • ANDERSEN winch grease • Winch handle 1. Remove screws (1). 2. Remove self-tailing arm (2). 3. Remove drum (4). 4. Pull up the drive shaft (5) gently, using the winch handle. 5.
- Page 6 18ST FS (V.1.0.F) GENERAL INFORMATION Due to the best choice of materials and high precision in manufacturing, we recommend, for normal use, only to dismantle, clean and lubricate the winch once every second year. Under extensive use, such as racing, charter or blue water sailing, we recommend to lubricate the winch once every year.
- Page 7 18ST FS (V.1.0.F) SAFETY NOTICES ALL WINCHES Read All Safety Notices and Product Manuals Do not install or operate this winch before reading and fully understanding the contents of this Product Manual. Stay Alert When Operating Andersen winches are very powerful and have the potential to cause significant damage and/or serious injury if used improperly or without due caution and vigilance.
- Page 8 PRODUCT MANUAL 18ST FS (V.1.0.F) WORLDWIDE DISTRIBUTION & SERVICE Visit www.andersenwinches.com WARRANTY Visit www.ronstan.com/warranty Manufactured by Ronstan Denmark ApS. Jægervænget 36 - 7100 Vejle - Denmark office@ronstan.dk - www.andersenwinches.com...
