Summary of Contents for Ronstan Andersen 34ST

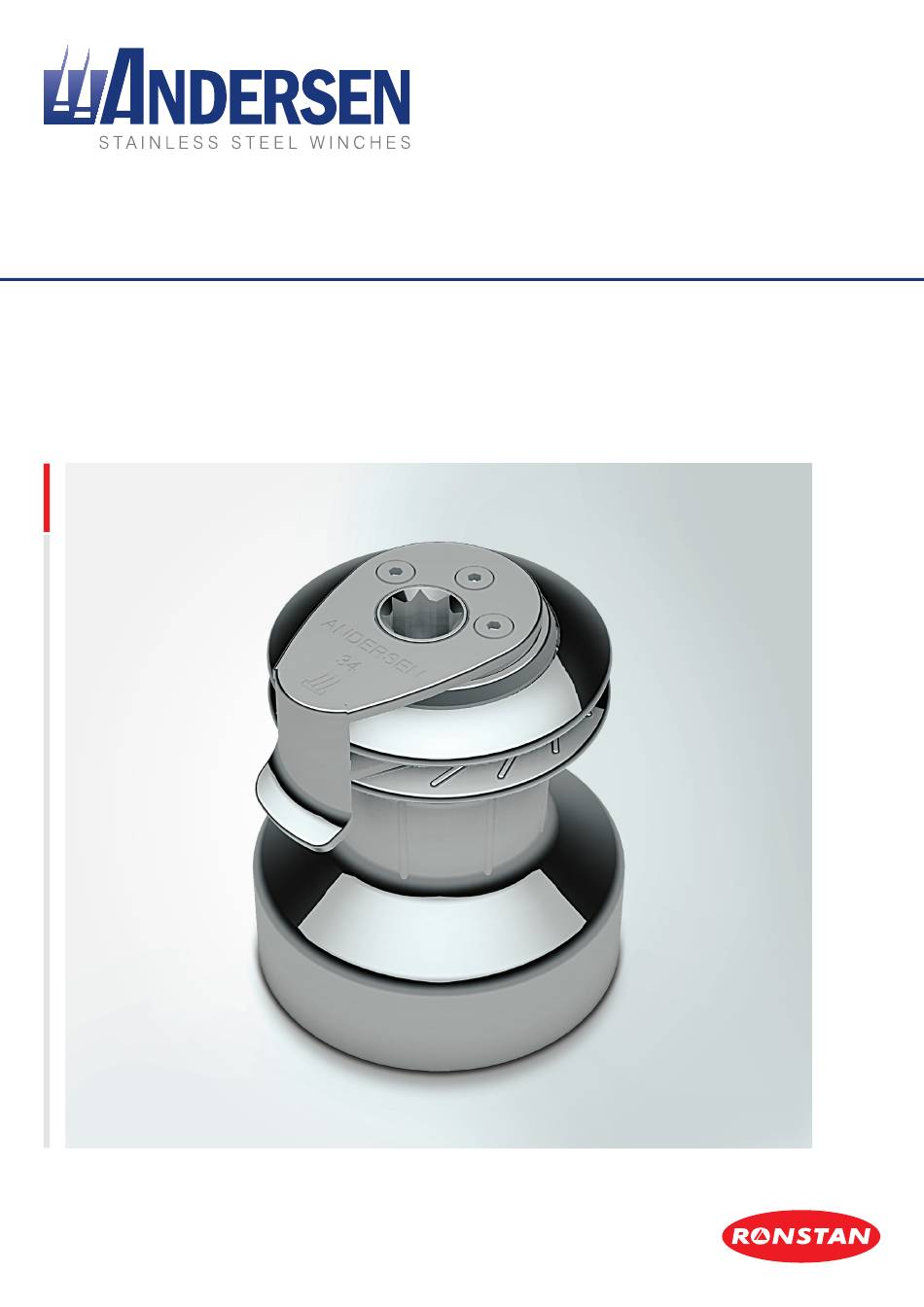

- Page 1 PRODUCT MANUAL 34ST (V.2.0) 34ST FS (V.2.0.F) RON-WPM-710229-34ST/34STFS-Rev.3...
- Page 2 34ST (V.2.0) 34ST FS (V.2.0.F) EXPLODED VIEW ITEM. 3 ITEM. 3 MODEL ST - PART No. 537551 MODEL ST FS - PART No. 537511 ITEM. 11 ITEM. 5 - PART No. 729021 MODEL STE - PART No. 534210...
- Page 3 34ST (V.2.0) 34ST FS (V.2.0.F) PARTS LIST ITEM NO. QTY. DESCRIPTION PART NO. Screw 543311 Self-tailing arm 596751 Self-tailing top complete 537551 Model ST Self-tailing top complete 537511 Model ST FS Circlip 726400U Top ring 782100 Screw 781811 Disc 726310 Model ST (537551 only) Drum complete 729110...
- Page 4 34ST (V.2.0) 34ST FS (V.2.0.F) MOUNTING INSTRUCTIONS Installing the winch is easy, if you follow these instructions. The numbers in ( ) refer to the position numbers in the parts list. Tools required for the installation: • Allen key (4 mm) • 5 x M6 (1/4”) countersunk head screws and corresponding • Allen key (5 mm) nuts (length depending on deck thickness) • Ø6.5 mm (1/4”) drill...
- Page 5 34ST (V.2.0) 34ST FS (V.2.0.F) SERVICE INSTRUCTIONS Tools required for service: • Allen key (4 mm) • Winch handle • Screwdriver (small) • ANDERSEN winch grease 1. Remove screws (1). 2. Remove self-tailing arm (2) and drum (4). 3. Insert a winch handle. Pull up the drive shaft (5) gently, while turning gear wheel (10) and ratchet gear (9) carefully.
- Page 6 34ST (V.2.0) 34ST FS (V.2.0.F) GENERAL INFORMATION Due to the best choice of materials and high precision in manufacturing, we recommend, for normal use, only to dismantle, clean and lubricate the winch once every second year. Under extensive use, such as racing, charter or blue water sailing, we recommend to lubricate the winch once every year.
- Page 7 34ST (V.2.0) 34ST FS (V.2.0.F) SAFETY NOTICES ALL WINCHES Read All Safety Notices and Product Manuals Do not install or operate this winch before reading and fully understanding the contents of this Product Manual. Stay Alert When Operating Andersen winches are very powerful and have the potential to cause significant damage and/or serious injury if used improperly or without due caution and vigilance.
- Page 8 PRODUCT MANUAL 34ST (V.2.0) 34ST FS (V.2.0.F) WORLDWIDE DISTRIBUTION & SERVICE Visit www.andersenwinches.com WARRANTY Visit www.ronstan.com/warranty Manufactured by Ronstan Denmark ApS. Jægervænget 36 - 7100 Vejle - Denmark office@ronstan.dk - www.andersenwinches.com...
