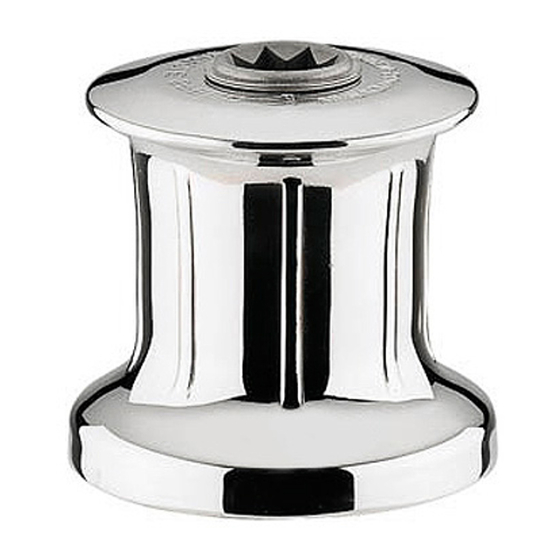

Summary of Contents for Ronstan ANDERSEN Classic 10

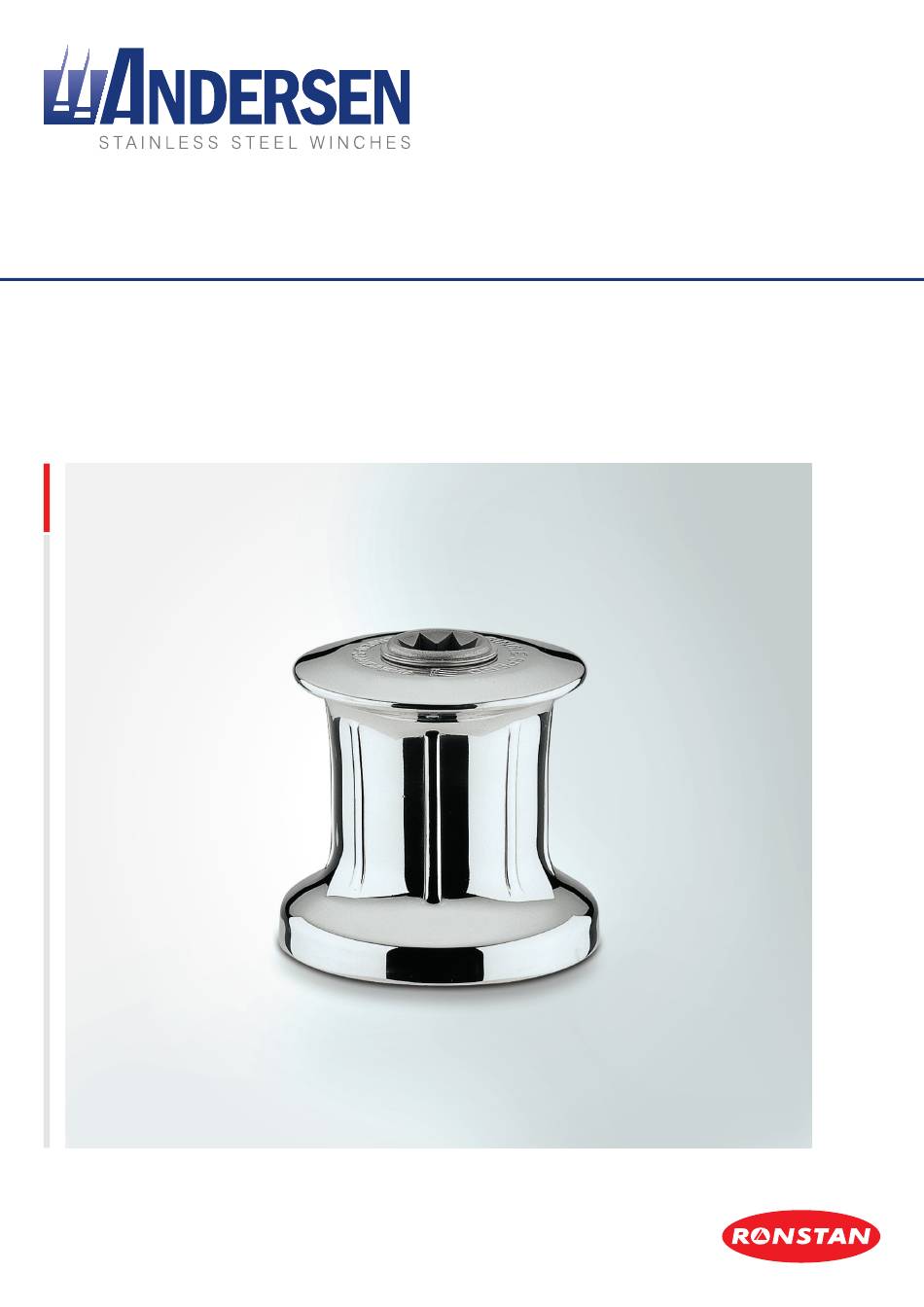

- Page 1 PRODUCT MANUAL Classic 10 (V.3.0) RON-WPM-710210C-Classic10-Rev.3...
-
Page 2: Exploded View
Classic 10 (V.3.0) EXPLODED VIEW... -
Page 3: Parts List
Classic 10 (V.3.0) PARTS LIST ITEM NO. QTY. DESCRIPTION PART NO. Circlip 712800 Drum 775210 Gliding washer 718400 Drive shaft 712702 Pawl 713200 Pawl spring 713300 Bearing 713103 Winch base 713102 Screw DIN912-A4-M4x40 Winch mounting dimension template RD100505 Service kit No.4 (not included) RA710004... -
Page 4: Mounting Instructions
Classic 10 (V.3.0) MOUNTING INSTRUCTIONS Installing the winch is easy, if you follow these instructions. The numbers in ( ) refer to the item numbers in the parts list and exploded view diagram. Tools required for the installation: • Small flat screwdriver. • 4 x Ø6 mm (1/4”) countersunk head screws and • Ø6.5 mm (1/4”) drill. - Page 5 Classic 10 (V.3.0) SERVICE INSTRUCTIONS Maintenance interval 1-2 years, depending on operation conditions. Tools required for service: • White spirits/mineral spirits (no solvents). • Small flat screwdriver. • Hot soapy water. • Large flat screwdriver. • Small brush for cleaning. • 3mm Allen key. • Small paint brush for applying winch grease. • Lock-in winch handle. • ANDERSEN winch grease. Use Service Kit No.4 - Product No. RA710004 1. Remove circlip (1), using small flat screwdriver.
-
Page 6: General Information
Classic 10 (V.3.0) GENERAL INFORMATION Due to the best choice of materials and high precision in manufacturing, we recommend, for normal use, only to dismantle, clean and lubricate the winch once every second year. Under extensive use, such as racing, charter or blue water sailing, we recommend to lubricate the winch once every year. -
Page 7: Safety Notices
Classic 10 (V.3.0) SAFETY NOTICES Read All Safety Notices and Product Manuals Do not install or operate this winch before reading and fully understanding the contents of this Product Manual. Stay Alert When Operating Andersen winches are very powerful and have the potential to cause significant damage and/or serious injury if used improperly or without due caution and vigilance. -
Page 8: Product Manual
PRODUCT MANUAL Classic 10 (V.3.0) WORLDWIDE DISTRIBUTION & SERVICE Visit www.andersenwinches.com WARRANTY Visit www.ronstan.com/warranty Manufactured by Ronstan Denmark ApS. Jægervænget 36 - 7100 Vejle - Denmark office@ronstan.dk - www.andersenwinches.com...
