Summary of Contents for Ronstan Andersen 40ST

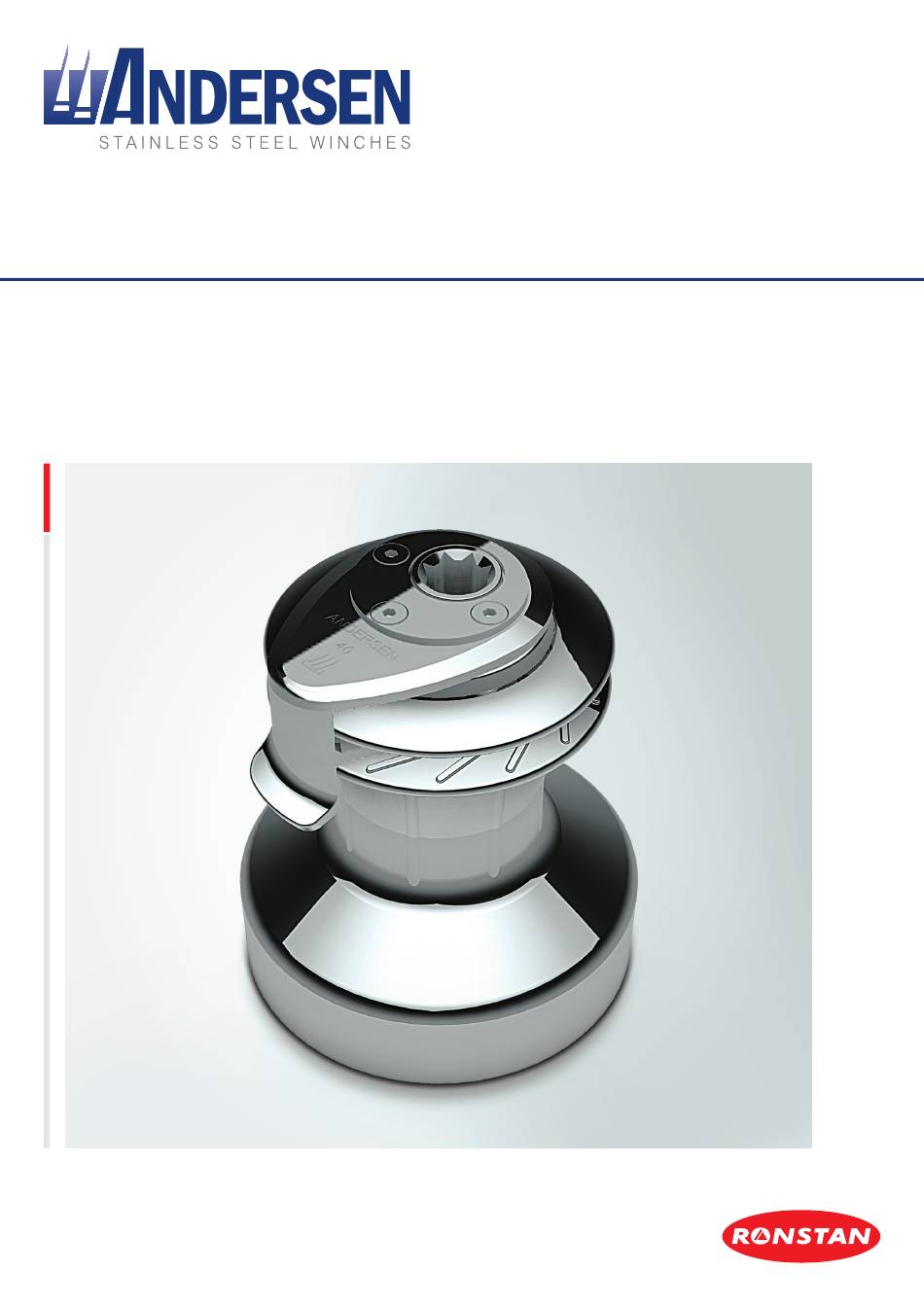

- Page 1 PRODUCT MANUAL 40ST (V.6.0) 40ST FS (V.6.0.F) RON-WPM-710240-40ST/40STFS-Rev.6...
- Page 2 40ST (V.6.0) 40ST FS (V.6.0.F) EXPLODED VIEW ITEM. 4 ITEM. 4 MODEL ST - PART No. 537452 MODEL ST FS - PART No. 537412 ITEM. 13 Version 3.4 > MODEL STE/STE BD - PART No. 532860 ITEM. 6 - PART No. 535321 MODEL STE AD - PART No.
- Page 3 40ST (V.6.0) 40ST FS (V.6.0.F) PARTS LIST ITEM NO. QTY. DESCRIPTION PART NO. Screw 543311 Top cap 535104 Self-tailing arm 535220 Self-tailing top complete 537452 Model ST Self-tailing top complete 537412 Model ST FS Circlip 590300U Top ring 782211 Screw 781811 Disc - Model ST (537452 only) 535510...
- Page 4 40ST (V.6.0) 40ST FS (V.6.0.F) MOUNTING INSTRUCTIONS Installing the winch is easy, if you follow these instructions. The numbers in ( ) refer to the position numbers in the parts list. Tools required for the installation: • Hex key (4 mm) • 5 x M6 (1/4”) countersunk head screws and corresponding •...
- Page 5 40ST (V.6.0) 40ST FS (V.6.0.F) SERVICE INSTRUCTIONS Tools required for service: • Hex key (4 mm) • Winch handle • Screwdriver (medium) • ANDERSEN winch grease 1. Remove screw (1) and top cap (2). 2. Remove self-tailing arm (3) and drum (5). 3. Insert a winch handle. Pull up the drive shaft (6) gently, while turning gear wheel (15) and ratchet gear (12) carefully.
- Page 6 40ST (V.6.0) 40ST FS (V.6.0.F) GENERAL INFORMATION Due to the best choice of materials and high precision in manufacturing, we recommend, for normal use, only to dismantle, clean and lubricate the winch once every second year. Under extensive use, such as racing, charter or blue water sailing, we recommend to lubricate the winch once every year. We strongly recommend always to use ANDERSEN WINCH GREASE, when lubricating your winch. ANDERSEN WINCH GREASE is a high quality silicone/Teflon grease product.
- Page 7 40ST (V.6.0) 40ST FS (V.6.0.F) SAFETY NOTICES ALL WINCHES Read All Safety Notices and Product Manuals Do not install or operate this winch before reading and fully understanding the contents of this Product Manual. Stay Alert When Operating Andersen winches are very powerful and have the potential to cause significant damage and/or serious injury if used improperly or without due caution and vigilance.
- Page 8 PRODUCT MANUAL 40ST (V.6.0) 40ST FS (V.6.0.F) WORLDWIDE DISTRIBUTION & SERVICE Visit www.andersenwinches.com WARRANTY Visit www.ronstan.com/warranty Manufactured by Ronstan Denmark ApS. Jægervænget 36 - 7100 Vejle - Denmark office@ronstan.dk - www.andersenwinches.com...
