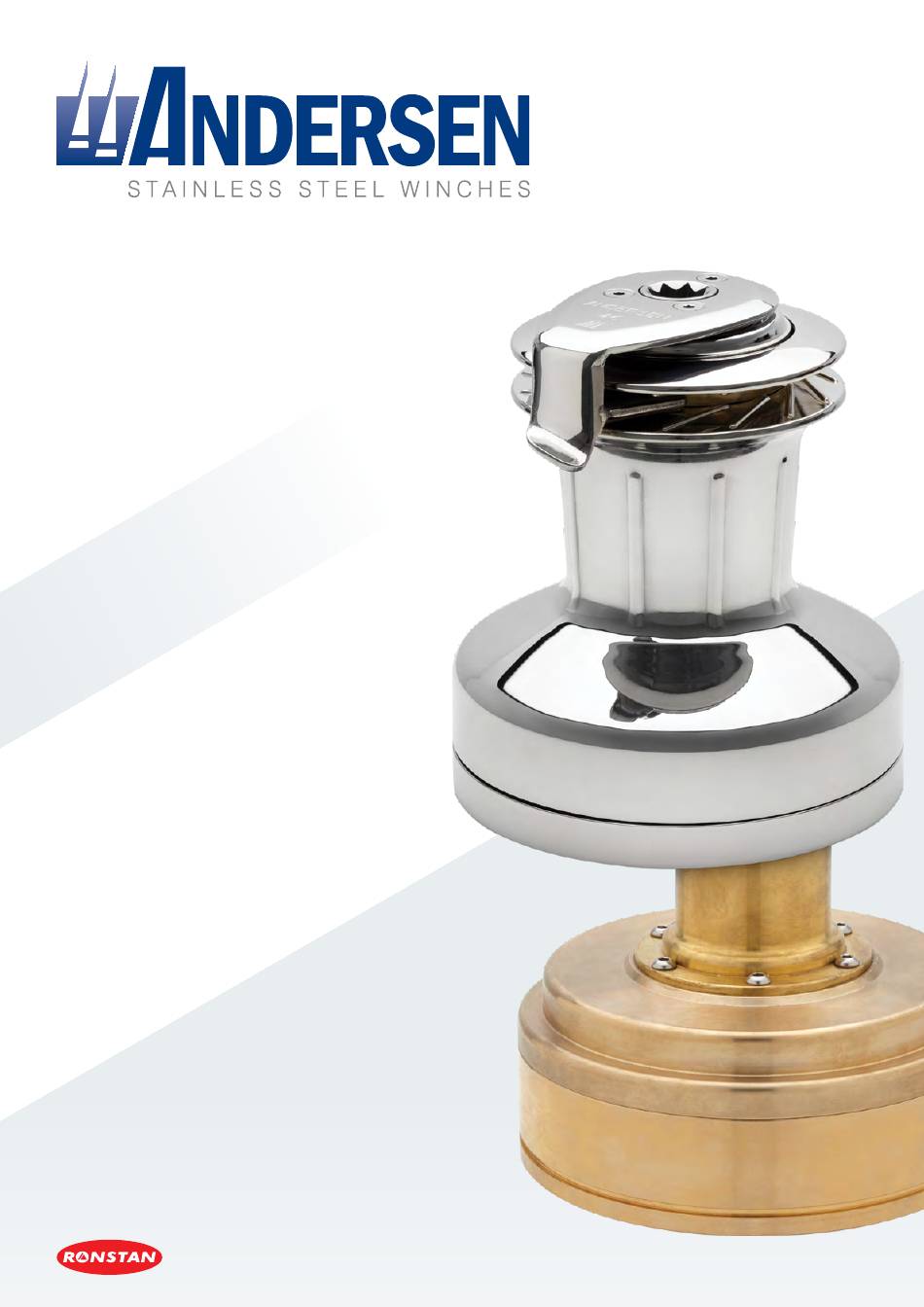

PRODUCT MANUAL
Compact Motor
Below Deck
Electric Winch
46/50ST
FOR USE WITH:
Compact Motor™ Electric Winches
RA2046014100
RA2050014100
RA2046014200
RA2050014200
Compact Motor™ Conversion Kits
RA2046214100
RA2050214100
RA2046214200
RA2050214200
Winch Versions:
46ST ( ≥ V.4.0)
50ST ( ≥ V.1.0)
Your Winch Version No. _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Your Motor Serial No. _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
™
710203 Rev.2
Advertisement
Related Manuals for Ronstan Andersen Compact Motor 46ST
Summary of Contents for Ronstan Andersen Compact Motor 46ST
- Page 1 PRODUCT MANUAL Compact Motor ™ Below Deck Electric Winch 46/50ST FOR USE WITH: Compact Motor™ Electric Winches RA2046014100 RA2050014100 RA2046014200 RA2050014200 Compact Motor™ Conversion Kits RA2046214100 RA2050214100 RA2046214200 RA2050214200 Winch Versions: 46ST ( ≥ V.4.0) 50ST ( ≥ V.1.0) Your Winch Version No. _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Your Motor Serial No.
- Page 2 PRODUCT MANUAL PRODUCT MANUAL 46/50ST Below Deck Compact Motor 46/50ST Below Deck Compact Motor ™ ™ SAFETY NOTICES Contents ANDERSEN Stainless Steel Winches ® Your Andersen winch is made with the care and craftsmanship that PAGE Read All Safety Notices and Product Manuals come from more than sixty years of experience.
- Page 3 PRODUCT MANUAL PRODUCT MANUAL 46/50ST Below Deck Compact Motor 46/50ST Below Deck Compact Motor ™ ™ Exploded View Parts List 46/50ST Below Deck Compact Motor™ 12V/24V ITEM NO. DESCRIPTION PART NO. Motor Compact BD, 12V for 46ST, 50ST RD825300 Motor Compact BD, 24V for 46ST, 50ST RD825500 Circlip RD829670...
- Page 4 PRODUCT MANUAL PRODUCT MANUAL 46/50ST Below Deck Compact Motor 46/50ST Below Deck Compact Motor ™ ™ Installation Instructions Required for installation STEP 1 • Hex keys, metric (included) • Pin spanner, 5mm pins (included) Determine the position of the winch and motor unit •...
- Page 5 PRODUCT MANUAL PRODUCT MANUAL 46/50ST Below Deck Compact Motor 46/50ST Below Deck Compact Motor ™ ™ STEP 2 STEP 3 Install the deck plate Fit the motor unit to the deck plate 2.1 Refer to the product manual for your 46 or 50ST winch. Correct alignment of the motor during assembly is essential.
- Page 6 PRODUCT MANUAL PRODUCT MANUAL 46/50ST Below Deck Compact Motor 46/50ST Below Deck Compact Motor ™ ™ STEP 4 Important Notes - Electrical Installation Fit drain tube Incorrect electrical installation will result in permanent damage 4.1 Remove the plastic plug from the drain port fitting and push the to the motor and invalidation of the warranty.
- Page 7 PRODUCT MANUAL PRODUCT MANUAL 46/50ST Below Deck Compact Motor 46/50ST Below Deck Compact Motor ™ ™ Wiring Diagram Motor Detail The positive cable (+RED) must be connected to positive terminal of PUSH BUTTON the motor. [A1] INCORRECT POLARITY WILL CAUSE PERMANENT DAMAGE TO WARNING THE MOTOR AND INVALIDATE THE WARRANTY!
- Page 8 PRODUCT MANUAL PRODUCT MANUAL 46/50ST Below Deck Compact Motor 46/50ST Below Deck Compact Motor ™ ™ STEP 6 STEP 8 Prepare the power cables Connect power and push button cables 6.1 Choose the shortest and most direct route possible for the cables, in order to minimise voltage drop between the 8.1 NEGATIVE (–) BLACK connection from motor to battery: battery and the motor.
- Page 9 PRODUCT MANUAL PRODUCT MANUAL 46/50ST Below Deck Compact Motor 46/50ST Below Deck Compact Motor ™ ™ STEP 9 STEP 10 Check installation Winch Installation 9.1 The PCB at the rear of the circuit breaker is fitted with 3 LED 10.1 Use a hex key to remove the screws at the top of the winch, indicators, located along its edge as indicated in the photo.
- Page 10 PRODUCT MANUAL PRODUCT MANUAL 46/50ST Below Deck Compact Motor 46/50ST Below Deck Compact Motor ™ ™ Troubleshooting Troubleshooting Guide Compact Motor™ electric winches have built-in monitoring and protection features to enhance safety and avoid permanent FAULT POSSIBLE CAUSE ACTION damage to the electronic and mechanical components of the motor and winch. Drive shaft housing not mating Ensure proper assembly with deck plate, and Excessive vibration or noise...
- Page 11 PRODUCT MANUAL PRODUCT MANUAL 46/50ST Below Deck Compact Motor 46/50ST Below Deck Compact Motor ™ ™ LED Status Codes / Diagnostics Service and Maintenance Proper care and maintenance of your Andersen products will ensure many years of reliable service. For your Compact In normal operation the green LED illuminates continuously for the first 5 minutes after Motor™...
- Page 12 Contact Andersen Stainless Steel Winches are manufactured by Ronstan Denmark ApS. ® Jægervænget 36, 7100 Vejle Denmark info@andersenwinches.com WORLDWIDE DISTRIBUTION & SERVICE Visit www.andersenwinches.com WARRANTY Visit www.andersenwinches.com Andersen Stainless Steel Winches is a registered trademark of Ronstan Denmark ApS ®...
