Summary of Contents for Ronstan Andersen 12ST

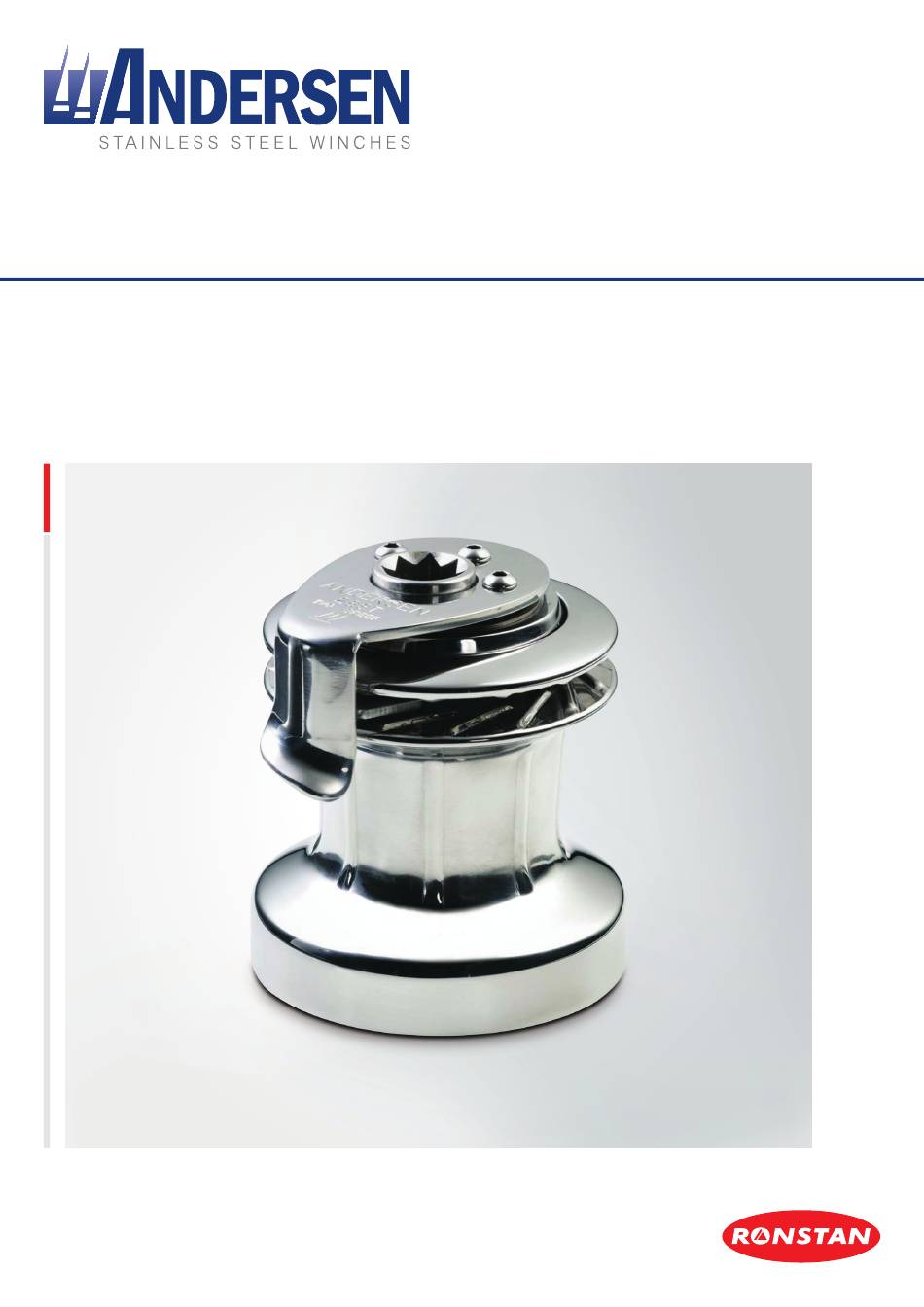

- Page 1 PRODUCT MANUAL 12ST (V.3.0) 12ST FS (V.1.0.F) RON-WPM-710212-12ST/12STFS-Rev.2...
- Page 2 12ST (V.3.0) 12ST FS (V.1.0.F) EXPLODED VIEW ITEM No. 3 - 537551 ITEM No. 3 - 537510...
- Page 3 12ST (V.3.0) 12ST FS (V.1.0.F) PARTS LIST ITEM NO. QTY. DESCRIPTION PART NO. Screws ISO 7380-A4-M6x12 Self-tailing arm 596711 Self-tailing top 537551 Model ST Self-tailing top 537510 Model ST FS Circlip 726400U Top ring 782100 Disc 726310 Model ST (537550 only) Drum complete 726811 Drive shaft complete...
- Page 4 12ST (V.3.0) 12ST FS (V.1.0.F) MOUNTING INSTRUCTIONS Installing the winch is easy, if you follow these instructions. The numbers in ( ) refer to the position numbers in the parts list. Tools required for the installation: • Screwdriver (large) • Ø6,5 mm. (1/4”) drill • 6 pcs. M6 (1/4”) countersunk head screws • Ring spanner to match nuts 1.
- Page 5 12ST (V.3.0) 12ST FS (V.1.0.F) SERVICE INSTRUCTIONS Tools required for service: • Screwdriver (large) • Winch handle • Screwdriver (small) • ANDERSEN winch grease 1. Remove screws (1). 2. Remove self-tailing arm (2) and drum (4). 3. Insert a winch handle. Pull up the drive shaft (5) gently, while turning ratchet gear (15) carefully.
- Page 6 12ST (V.3.0) 12ST FS (V.1.0.F) GENERAL INFORMATION Due to the best choice of materials and high precision in manufacturing, we recommend, for normal use, only to dismantle, clean and lubricate the winch once every second year. Under extensive use, such as racing, charter or blue water sailing, we recommend to lubricate the winch once every year.
- Page 7 12ST (V.3.0) 12ST FS (V.1.0.F) SAFETY NOTICES ALL WINCHES Read All Safety Notices and Product Manuals Do not install or operate this winch before reading and fully understanding the contents of this Product Manual. Stay Alert When Operating Andersen winches are very powerful and have the potential to cause significant damage and/or serious injury if used improperly or without due caution and vigilance.
- Page 8 PRODUCT MANUAL 12ST (V.3.0) 12ST FS (V.1.0.F) WORLDWIDE DISTRIBUTION & SERVICE Visit www.andersenwinches.com WARRANTY Visit www.ronstan.com/warranty Manufactured by Ronstan Denmark ApS. Jægervænget 36 - 7100 Vejle - Denmark office@ronstan.dk - www.andersenwinches.com...
