- Page 1 VIDAR Vacuum tester User’s Manual Art No. ZP-BR01E Doc. BR0150GE V02a 2015...
-
Page 2: Table Of Contents
Contents 1 Safety ............. 4 1.1 Symbols on the instrument ......4 1.2 Safety instructions ........4 2 Introduction ............. 6 2.1 General ............6 2.2 Flashover threshold voltage ......6 3 Instrument description ............. 8 4 Operating instructions ............10 4.1 Connecting ..........10 4.2 Conducting a test ........10 5 Troubleshooting ............ - Page 3 © 2013-2015, Megger Sweden AB. All rights reserved. The contents of this manual are the property of Megger Sweden AB. No part of this work may be reproduced or transmitted in any form or by any means, except as permitted in written license agreement with Megger Sweden AB. Megger Sweden AB has made every reasonable attempt to ensure the completeness and accuracy of this document.
-
Page 4: Safety
Always comply with local safety regula- tions. Protective conductor terminal. Warning WEEE, Waste Electrical and Electronic People with pacemakers must not use the VIDAR Equipment. Please utilize your local since a pacemaker can be disturbed by the electrical WEEE collection facilities in the dispo- discharges. - Page 5 Do not expose the instrument to rain or moisture. Refer all servicing to Megger authorized personnel. If you need to return the instrument, please use either the original crate or one of equivalent strength...
-
Page 6: Introduction
2.1 General 2.2 Flashover threshold voltage the VIDAR vacuum tester is used to test the ability of the breaking chamber in a vacuum circuit breaker to the curve shown in Fig. 1 illustrates the relationship inhibit flashover. the rugged, lightweight, compact between a vacuum chamber’s internal pressure and... - Page 7 3 INStRUMENt DESCRIPtION BR0150GE ZP-BR01E VIDAR...
-
Page 8: Instrument Description

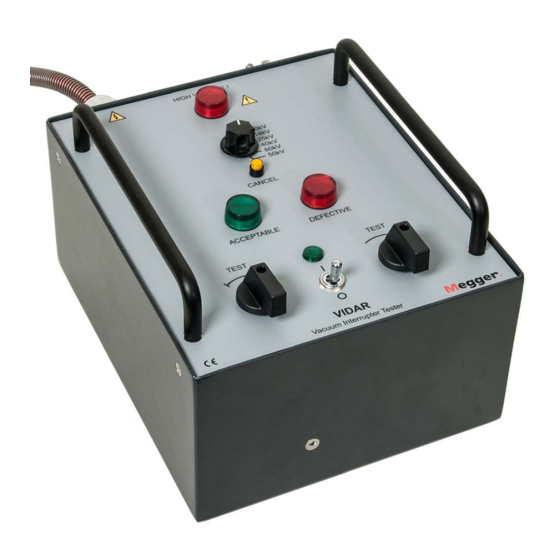

Red HIGH-VOLtAGE warning lamp. Shows that the ▪ the flashover threshold voltage is too low. high voltage is applied. test voltage selector. Five standard voltages and one customized voltage, determined at the factory. Protective earth (ground) terminal. VIDAR ZP-BR01E BR0150GE... - Page 9 4 OPERAtING INStRUCtIONS BR0150GE ZP-BR01E VIDAR...
-
Page 10: Operating Instructions
Check that the master ON/OFF switch on the Using both hands, turn the two SAFETY VIDAR is in OFF position and that the red CONTROL knobs to their respective end limits HIGH-VOLTAGE warning lamp is not flashing. - Page 11 4 OPERAtING INStRUCtIONS When the test is completed turn the power ON/OFF switch on the VIDAR to its OFF posi- tion. Note The yellow indicator lamp lights if the test lasts longer than 1 minute. If you want to conduct a full time 1 minute test after that, there must be a 2 minutes pause before starting next test.
-
Page 12: Troubleshooting
(Halogen 12 V, 5 W BA9 type, Megger Sweden art. no. is 34-00020). Insert the light bulb in the socket, push the lamp down, then twist slightly clockwise. - Page 13 BR0150GE ZP-BR01E VIDAR...
-
Page 14: Specifications
6 SPECIFICAtIONS Specifications Specifications VIDAR Specifications are valid at nominal input voltage and an ambi- ent temperature of +25°C, (77°F). Specifications are subject to change without notice. Environment Application field the instrument is intended for use in medium and high-voltage substations and industrial environments. - Page 15 6 SPECIFICAtIONS BR0150GE ZP-BR01E VIDAR...
