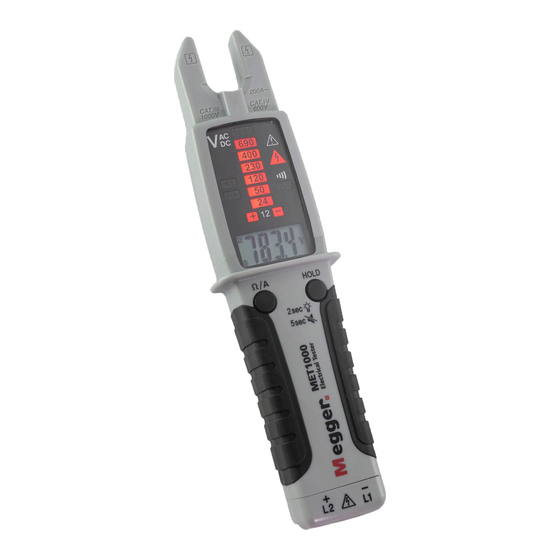

- Page 1 MET1000 All in One True RMS Electrical Tester User Guide Authorized Distributor: WESCHLER INSTRUMENTS phone: 800-903-9870 440-378-6580 fax: 800-903-9590 440-238-0660 www.weschler.com info@weschler.com...
- Page 2 English Megger Ltd reserves the right to alter the specification of its products from time to time without notice. Although every effort is made to ensure the accuracy of the information contained within this document it is not warranted or represented by Megger Ltd. to be...
-
Page 3: Declaration Of Conformity
Declaration of Conformity Hereby, Megger Instruments Limited declares that radio equipment manufactured by Megger Instruments Limited described in this user guide is in compliance with Directive 2014/53/EU. Other equipment manufactured by Megger Instruments Limited described in this user guide is in compliance with Directives 2014/30/EU and 2014/35/EU where... -
Page 4: Safety Information
Safety Information Safety Information To ensure safe operation and service of the meter, follow these instructions. Failure to observe warnings can result in severe injury or death. „ If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. - Page 5 Safety Information Symbols as marked on the Meter and Instruction manual Symbol Explanation Risk of electric shock See instruction manual DC measurement AC measurement Both direct and alternating current Equipment protected by double or reinforced insulation Battery Earth Conforms to EU directives Application around and removal from hazardous live conductors Do not discard this product or throw away...
- Page 6 Voltage/Continuity/Single Pole Mode Voltage/Continuity/Single Pole Mode Voltage Measurement indicates measured voltage is high than ELV limit (50 VAC and/or 120 VDC). Warning „ When batteries are not fitted or are exhausted, the tester is capable of measuring >45 VAC and/or >35 VDC. „...
- Page 7 Voltage/Continuity/Single Pole Mode Continuity Check...
- Page 8 „ To carry out Single Pole Check test, while firmly holding the MET1000 connect the test lead into a live circuit, this will cause the MET1000 to repeatedly beep and the hazard symbol to illuminate without any voltage being displayed on the screen.
-
Page 9: Phase Rotation Test
Phase Rotation Test Phase Rotation Test Clockwise Phase Sequence L1-L2-L3 (Right) Source Terminal Grip firmly Counter-clockwise Phase Sequence L1-L3-L2 (Left) Source Terminal Grip firmly Warning Phase Rotation Test works only on 3 phase 4 wire systems. The result is unreliable on any other systems. - Page 10 Resistor Mode Resistor Mode...
-
Page 11: Current Mode
Current Mode Current Mode CAT III 1000 V CAT IV 600 V with respect to earth for the jaw Barrier for hand guard Do not hold the meter above the barrier Warning The barrier guard on the meter provides maximum protection when holding the unit in normal use. -
Page 12: Using The Functions
Using the Functions Using the Functions HOLD Press Enable/Disable ELV Warning Voice Press >5sec Voltage/Continuity/Single Pole Mode Voltage/Continuity/Single Pole Mode Press >5sec Press Ω/A button and “HOLD” button at the same time. Powering ON... - Page 13 Using the Functions Torch Press >2 sec Powering ON Self-diagnostic test Press Warning Do not use the tester if a fault is indicated during self-diagnostic test.
- Page 14 Using the Functions Function Button Voltage/Continuity/Single Pole Mode Press Button Press Button >2 sec Resistor Mode Press Button Current Mode...
-
Page 15: Battery Replacement
Battery Replacement Battery Replacement Press here Press here Warning „ Replace the batteries as soon as the low battery indicator starts to flash to avoid false readings. „ Remove test leads from meter before opening the battery cover. -
Page 16: Probe Usage
Probe Usage Probe Usage Press here Press here Press here Warning When using test leads or probes, keep your fingers behind the finger guards. Warning „ For CAT III or CAT IV environments, use the test leads with the probe tip guard cap fixed firmly in place. -
Page 17: Test Lead Assembly
Test lead assembly Test lead assembly Warning Do not attach test leads onto the back of the meter while measuring current. Press here For 19mm power socket For most applications except current measurement. -
Page 18: Specifications
Specifications Specifications Display count : 10,000 counts. Overrange display : « OL » or « -OL » Conversion rate : 3 times per second Dimensions (W x H x D) : 57 x 220 x 35 mm Weight : 200 g Power requirements : AAA size battery x 2 (R03, LR03, 24D, 24A) Battery life :... - Page 19 Specifications Electrical Specifications Accuracy is given as ± (% of reading + counts of least significant digit) at 23°C ± 5°C, with relative humidity less than 80% and is specified for 1 year after calibration. Condition of Auto Power On With batteries fitted :` ƒ...
- Page 20 Specifications Electrical Specification DC Voltage Range Resolution Accuracy With batteries 7.0 V to 999.9 V 0.1 V ±(1.0 % + 2D) Without batteries(1) 35 V to 999.9 V 0.1 V (1) Measurement without batteries is only available for < 35°C, > -15°C. The meter will show “bAtt”...
- Page 21 Specifications Electrical Specification Continuity : The built-in buzzer sounds when measuring resistance less than 1.8 kΩ and up to 2.7 kΩ. LED RX shows at the same time. Continuity Indicator : 2.7 kHz Tone Buzzer and RX LED Response Time of Buzzer : <...
-
Page 22: Maintenance
The crossed out wheeled bin symbol on the instrument and on the batteries is a reminder not to dispose of them with general waste at the end of their life. Megger is registered in the UK as a Producer of Electrical and Electronic equipment. The registration No is;... - Page 23 Warranty (3 years) Warranty (3 years) This meter is warranted to the original purchaser against defects in material and workmanship for 3 year from the date of purchase. During this warranty period, the manufacturer will, at its option, replace or repair the defective unit, subject to verification of the defect or malfunction.
