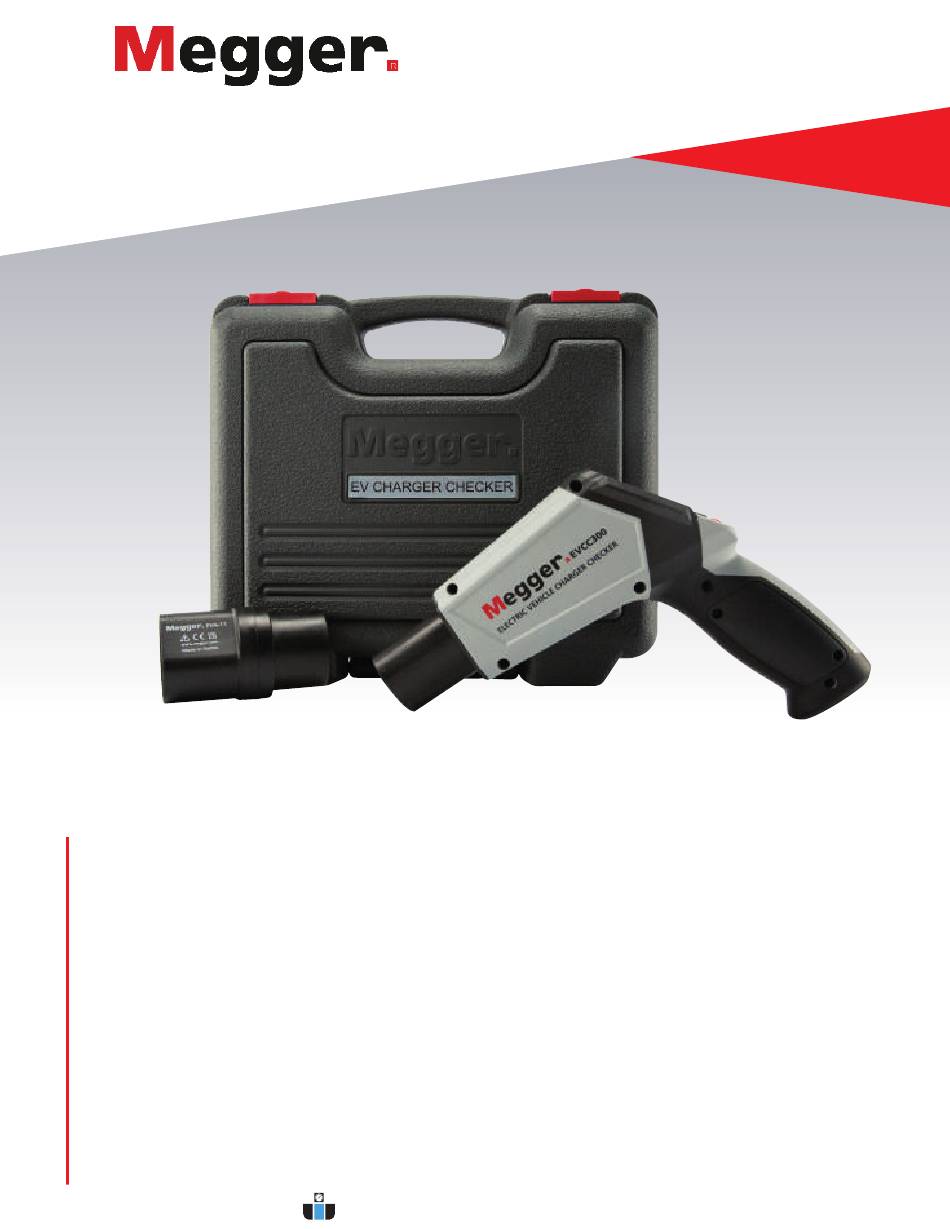

- Page 1 EVCC 300 Electric Vehicle Charger Checker User Guide 1.800.544.2843 www.calcert.com sales@calcert.com...
- Page 2 Hereby, Megger Instruments Limited declares that radio equipment manufactured by Megger Instruments Limited described in this user guide is in compliance with Directive 2014/53/EU. Other equipment manufactured by Megger Instruments Limited described in this user guide is in compliance with Directives 2014/30/EU and 2014/35/EU where they apply.
-
Page 3: Table Of Contents
Contents 1. Introduction Product description ..........................2 Features ..............................2 Applications ..............................3 Company web site ............................3 2. Safety Warnings Warnings, Cautions and Notes ........................4 2.1.1 Warnings ............................... 4 2.1.2 Cautions ..............................4 2.1.3 Notes ..............................4 Safety warnings ............................4 Test lead safety warnings: ........................5 Installation category definitions:......................5 Safety, Hazard and Warning symbols on the instrument ..............6 3. - Page 4 Tests, personal protection check ......................19 5.4.1 Description ............................. 19 5.4.2 How to perform the test ........................20 5.4.3 Interpreting test results ........................... 21 Nuisance trip check...........................24 5.5.1 Description ............................. 24 5.5.2 How to perform the test ........................24 5.5.3 Interpreting test results ........................... 26 Tests, Proximitary check ...........................29 5.6.1 Description .............................
- Page 5 11. Calibration, Repair and Warranty 11.1 Return procedure ...........................45 12. Decommissioning 12.1 WEEE Directive ............................46 12.2 Battery disposal ............................46 13. Notes 1.800.544.2843 www.calcert.com sales@calcert.com...
-
Page 6: Introduction

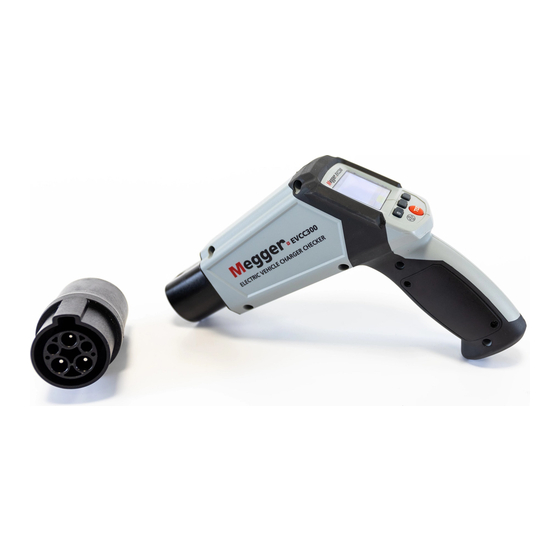

Introduction 1. Introduction This user guide details the operational and functional details of the Megger EVCC300 Electric Vehicle Charger Checker. Please read this user guide fully before attempting to use the EVCC300. Product description The new EVCC300 represents a new concept in electric vehicle charger checking, providing a simple, all in one solution. -
Page 7: Applications
Introduction Applications The EVCC300 can check the safety and operation of single phase mode 3 chargers with type 2 connections and type 1 connections using an adaptor supplied as standard. The instrument is perfect for use in the following situations: „... -
Page 8: Safety Warnings
Safety 2. Safety The safety instructions given in this document are indicative of safe practice and are not to be considered exhaustive. Additionally, they are not intended to replace local safety procedures in the region where the instrument is used. If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. -
Page 9: Test Lead Safety Warnings
Replacement cells must be of the type specified in the instructions. Observe the correct polarity „ „ No user serviceable parts are inside the equipment. Refer repairs to Megger approved service centres. „ At the end of the equipment’s life dispose of it according to local regulations for recycling. Do not dispose of this equipment to landfill. -
Page 10: Safety, Hazard And Warning Symbols On The Instrument
Safety Safety, Hazard and Warning symbols on the instrument This paragraph details the various safety and hazard icons on the instrument’s outer case. Icon Description Warning: HIGH VOLTAGE, Risk of electric shock Caution: Refer to user guide. Equipment complies with current UK legislation EU conformity. -
Page 11: Instrument Overview
Instrument Overview 3. Instrument Overview Instrument layout Item Description Item Description Type 2 EV male connector Test button Touch voltage / PE (protective earth) test Fuse compartment touch pad ON / OFF button 4 mm socket ground / earth bond lead connection Display Battery compartment... -
Page 12: Instrument Display
Instrument Overview Instrument display The EVCC300 display is a 320x240 colour TFT screen. Item Description Item Description Screen title Softkey 2 function Main display area Softkey 3 function Supply and touch voltage settings Battery condition indicator Softkey 1 function Charger connection setting indicator The purpose of the main display area is to show the measurement results. -
Page 13: Instrument Softkey And Test Button Controls
Instrument Overview Instrument softkey and test button controls Item Description Item Description Softkey 1 and ON / OFF button PE touch pad Softkey 2 TEST button Softkey 3 The softkey bar at the bottom of the screen shows the functions of the softkeys. The function of each key is „... -
Page 14: First Use Set Up Of The Evcc300 And Setting
First use set up of the EVCC300 and setting 4. First use set up of the EVCC300 and setting Turning the instrument on and off 1. To turn the EVCC300 ON press and hold softkey (1). 2. To turn the EVCC300 OFF press and hold softkey (1). Before use it is important that the EVCC300 is set up correctly. -
Page 15: Mains Supply And Touch Voltage Test Settings
First use set up of the EVCC300 and setting 4.3.2 Mains supply and touch voltage test settings User preferred voltage options can be selected from here. Selected voltages will be saved and shown on screen in the grey ribbon at all times. These voltages can be changed at a later time if required. 1. -
Page 16: Tests
Tests 5. Tests Introduction 5.1.1 Correct testing sequence The EVCC300 incorporates effectively four safety tests (1.1 to 1.4 in the list below), one test to determine if nuisance tripping of an RCD or GFCI is likely to occur (2.1 in the list below) and two operational (charger output enabled) tests (3.1 to 3.2 in the list below) : Warning: It is important for safety reasons to apply these tests in the order shown below: 1. -
Page 17: Tests, Pe (Protective Earth) Touch Pad Test
Tests Tests, PE (protective earth) touch pad test 5.2.1 Description This is the first test that should be performed when using the EVCC300 to test a mode 2 or 3 vehicle charger. During this test the charger is quickly powered up. If there is a ground / earth connection present the instrument will indicate PROCEED. -
Page 18: Interpreting Test Results
Tests Ensure the connection method indicated in the top left corner of the MENU screen is correct. As a reminder the menu screen connection indicator looks like this. In this screen the EVCC300 is set to direct connection. If the red cross is not present the instrument is set for connection to the charger via a tethered cable or plug in charging cable. - Page 19 Tests When an EV charger’s Earth is incorrectly wired to main neutral such as shown below: „ ƒ EV charger’s L -> L EV charger’s N -> N ƒ ƒ EV charger’s PE -> N Neither the voltage measurements nor the touch pad with detect such fault. Failure to follow test instructions on screen may result in hazardous PE wiring undetected.
-
Page 20: Tests, R Measurement
Tests Tests, R measurement 5.3.1 Description The second test to perform is the R test. In this test a continuity test is performed between the ground / earth pin on the charger socket and the 4 mm socket on the bottom of the instruments handle. This test is used on chargers that have exposed metalwork to check it is connected to the ground / earth pin on the charging socket / plug. -
Page 21: How To Perform The Test
Tests 5.3.2 How to perform the test 1. Switch the instrument ON. 2. Connect the black ground / earth continuity test lead to the 4 mm socket at the bottom of the instruments handle. 3. Plug the EVCC300 into the charger outlet, either directly into a type 2 connector or using the adaptor provided into a type 1 connector. -
Page 22: Interpreting Test Results
Tests 6. Connect the crocodile clip or test probe to any exposed metal. 7. Press and hold the TEST button to start the test. 8. When the test is complete the instrument will display the results in ohms and indicate a PASS or FAIL. 9. - Page 23 Tests 3. Should the test fail a qualified electrician should be consulted to determine the correct action 4. Should the circuit be open circuit, the results will be shown as below 1.800.544.2843 www.calcert.com sales@calcert.com...
-
Page 24: Tests, Personal Protection Check
Tests Tests, personal protection check 5.4.1 Description EV chargers will always be protected by a residual current device (RCD) or a ground fault circuit interrupter (GFCI). Both these devices have the same functions, protecting users from electrocution and preventing fault current causing a fire. -
Page 25: How To Perform The Test
Tests 5.4.2 How to perform the test 1. Switch the instrument ON. 2. Ensure the mains supply to charger is powered up and on. 3. Plug the EVCC300 into the charger outlet, either directly into a type 2 connector or using the adaptor provided into a type 1 connector. -
Page 26: Interpreting Test Results
Tests 8. The EVCC300 can perform testing with either 0° or 180° earth leakage current. This means the current flowing will either start at the positive direction zero cross over, or negative direction zero cross over. 9. When the desired test has been selected press and hold the TEST button 10. - Page 27 Tests c. RCD / GFCI personal protection test result The EVCC300 will apply pre-set test limits depending on the set mains supply and the test performed. There are three conditions that can be indicated to the user. () Green tick – PASS () Orange tick –...
- Page 28 Tests d. The criteria for the result indication is as follows: 230 V Ph to N (UK / Europe tests) 30 mA AC, 0° and 180° „ PASS / FAIL criteria: PASS: () RCD trips within 300 ms ƒ FAIL: No RCD trip in 300 ms „...
-
Page 29: Nuisance Trip Check
Tests Nuisance trip check 5.5.1 Description EV chargers will always be protected by a residual current device (RCD) or a ground fault circuit interrupter (GFCI). These devices have the same function to protect the user from electrocution or to prevent fault current causing a fire. They work by detecting an imbalance in the circuit current, if less current returns from the circuit it must be flowing to to ground. - Page 30 Tests 3. Plug the EVCC300 into the charger outlet, either directly into a type 2 connector or using the adaptor provided into a type 1 connector. Ensure the connection method indicated in the top left corner of the MENU screen is correct. As a reminder the menu screen connection indicator looks like this.
-
Page 31: Interpreting Test Results
Tests 10. The test can take a while to perform. First the EVCC300 will put the charger into a charging mode and measure the output voltage. 11. The EVCC300 will then perform a touch voltage test. This is to ensure that the charger earth or ground will not raise in voltage to a hazardous level during the actual RCD / GFCI test. - Page 32 Tests c. RCD / GFCI nuisance trip test result The EVCC300 will apply pre-set test limits depending on the set mains supply and the test performed. There are three conditions that can be indicated to the user: () Green tick – PASS () Orange tick –...
- Page 33 Tests 120 V Ph to N (USA tests) 6 mA AC current ramp test „ PASS / FAIL criteria: FAIL: RCD trips between 0.5 mA to 3.5 mA ƒ QUESTIONABLE: RCD trips between 4 mA to 4.5 mA () PASS: () RCD trips between 5 mA to 6 mA FAIL:...
-
Page 34: Tests, Proximitary Check
Tests Tests, Proximitary check 5.6.1 Description Proximity circuit on the EVSE (Electric Vehicle Service Equipment) connector provides the EV with a signal so it knows it is connected to a charger. When connected the proximity signal will prevent the EV from moving. When not connected the voltage on the EV proximity pin will be 4.5 V. -
Page 35: Tests, Control Pilot And Charger Output Check
Tests Tests, Control pilot and charger output check 5.7.1 Description The control pilot signal is the communication between the charger and the electric vehicle and cover three main areas of communication. 1. The state of the vehicle / charger a. Disconnected d. - Page 36 Tests 1. Switch the instrument ON 2. Ensure the mains supply to the charger is powered up and turned on 3. Plug the EVCC300 into the charger outlet, either directly into a type 2 connector or using the adaptor provided into a type 1 connector Ensure the connection method indicated in the top left corner of the MENU screen is correct.
-
Page 37: Interpreting Test Results
Tests 8. Press softkey 3 to set a CP short to E to test the chargers response. At this point no measurements are taken, only the CP code applied to the charger. 9. Press and hold softkey 3 to use the BACK function that will exit the EVSE interface screen 10. -
Page 38: Auto Test Sequence
Tests Auto test sequence 5.8.1 Description The autotest function is a great time saver. The user can select which tests they would like to perform and then the EVCC300 will run through all of the tests one by one automatically 5.8.2 Test selection 1. -
Page 39: Interpreting Test Results
Tests 5.8.4 Interpreting test results 1. As each test in performed the result will simply be indicated by either a green tick (test PASS), orange question mark (test with a QUESTIONABLE RESULT) or a red cross (test FAIL) 2. As the tests proceed the result indications will appear. When performing a RCD / GFCI test the user will be prompted to reset the device following a trip test. -
Page 40: Settings
Settings 6. Settings General settings 6.1.1 Description. The settings screen allows the user to select the VTOUCH test limit and the VMAINS or mains / line supply type. Prior to performing a RCD or GFCI test the instrument will perform a test to determine what the earth or ground voltage will rise to during the test. - Page 41 Settings 10. To select the desired mains / supply voltage select the settings screen again, highlight the required VMAINS setting and press select 11. Press softkey 1 or 3 (arrows) to highlight the desired setting 12. Press softkey 2 to SELECT. When the required supply setting is selected the EVCC300 will immediately return to the main menu screen.
-
Page 42: Maintenance
Maintenance 7. Maintenance Note: There are no user replaceable parts within the EVCC300, other than the battery cells and the fuses. General maintenance „ Ensure the unit is kept clean and dry after use. Close all covers when not in use. „... -
Page 43: Battery And Fuse Replacement
Maintenance Battery and fuse replacement Warning: Switch off the instrument and remove any connection before removing the battery cover. Caution: Batteries should not be left in the instrument if remaining unused for an extended period. Caution: Ensure the new battery cells are replaced in the correct polarity as indicated on the cells and battery compartment. -
Page 44: Specifications
Specifications 8. Specifications EVCC specifications Specification Detail ESVE STANDARD IEC 61851-1:2017 ESVE SUPPLY OPTIONS (set in settings) 1. 230 V single phase 2. 120 V single phase 3. 208 V two phase 4. 240 V tow phase SUPPLY MEASUREMENT Voltage range 5 V to 300 V Voltage resolution Voltage accuracy... - Page 45 Specifications PERSONAL PROTECTION TESTS, 230 V SINGLE PHASE: 1. RCD 30 mA AC TEST Test current: 31.5 mA AC (5% above nominal trip current) Max. test time: 300 ms Polarity selection: 0° and 180° of an input sine wave 2. RCD 6 mA DC TEST Test current ramp up at rate of 6 mA in 2.5 s, then held at 6 mA DC Ramp polarity...
- Page 46 Specifications TOUCH CONTACT PAD TEST Conditions for the voltage measurements Fail conditions UK and EU 230 V IF ((LE <= 0.9*230 V) and (NE >= 0.1*230 V)) OR ((LE >= 0.1*230 V) and (NE <= 0.9*230 V)) US 120 V 1Ph IF ((LE <= 0.9*120 V) and (NE >= 0.1*120 V)) US 208 V 2Ph IF (LE - NE >= 10 V)
-
Page 47: Type 1 Adaptor Specifications
Specifications Type 1 adaptor specifications Specification Detail CONNECTIONS Type 1 female - CAT II 300 V 1.800.544.2843 www.calcert.com sales@calcert.com... -
Page 48: Accessories And Equipment
Accessories and Equipment 9. Accessories and Equipment Item Order No. Continuity/earth bond lead 1001-233 Blow moulded case EVCC300 1014-480 EVA-T1 Type 2 to Type 1 connector adaptor 1014-481 1.800.544.2843 www.calcert.com sales@calcert.com... - Page 49 3. Pack the instrument carefully to prevent damage in transit. 4. Before the instrument is sent to Megger, freight paid, make sure that the returns label is attached or that the RA number is clearly marked on the outside of the package and on any correspondence. For items being returned outside of the UK and USA please send copies of the original purchase invoice and packing simultaneously by airmail to expedite clearance through customs.
- Page 50 11.1 WEEE Directive The crossed out wheeled bin symbol placed on Megger products is a reminder not to dispose of the product at the end of its life with general waste. Megger is registered in the UK as a Producer of Electrical and Electronic Equipment. The Registration No is WEE / HE0146QT.
