Table 3. A description of the buttons and LEDs of the LED panel.
•
FLt - PSU fault memo (30 last events)
•
Io - AUX output current measurement [A]
•
Uo - AUX output voltage measurement [V]
Resolution for voltage measurement amounts to 0.1V, for current measurement: 0.1A. Displayed
voltage and current rates are only approximate. For higher accuracy, a multimeter shall be used.
PSBEN10A12C
- parameter selection
- selection approval
- red LED – indicates presence of the AC voltage
- red LED – indicates overload of the PSU
- red LED – indicates failure of the PSU
- red LED – indicates battery failure
- green LED – indicates power at the AUX output of the PSU
- three yellow LEDs – indicate battery charging level

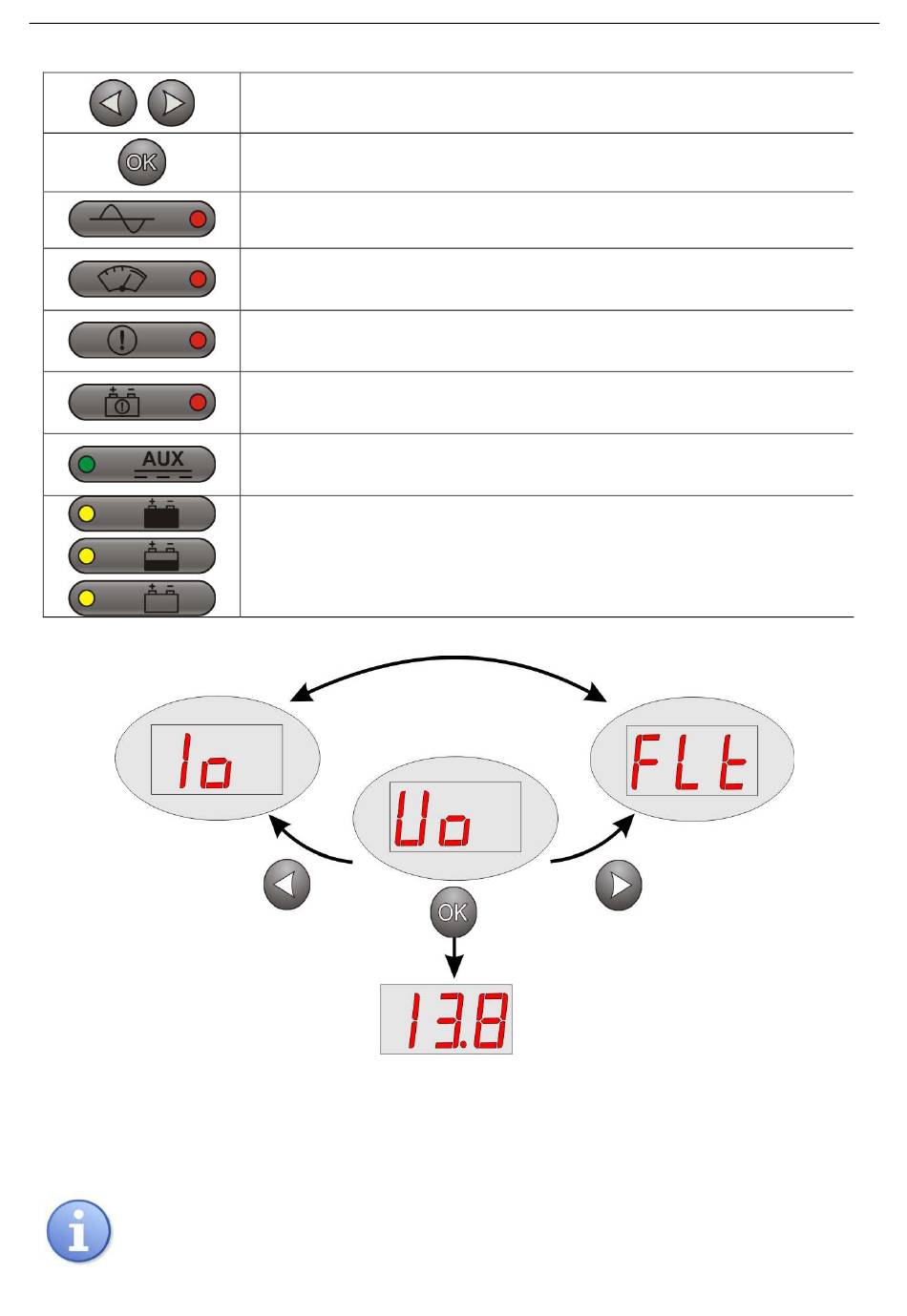

Fig. 5. Menu of the display.
