2. Technical description.

2.1. General description.

The buffer power supply has been designed in accordance with the requirements of the PN-EN 50131-6
standard, grade 1÷3 and II environmental class. It is intended for an uninterrupted supply to alarm system devices
requiring stabilized voltage of 12V/DC (+/-15%).
Depending on a required protection level of the alarm system in the installation place, the PSU efficiency
and the battery charging current ought to be measured as follows:
* Grade 1, 2 - standby time 12h
** Grade 3 - standby time 30h if the faults of the main power source are reported to the Alarm Receiving
Centre - ARC (in accordance with 9.2 – PN-EN 50131-1).
- standby time 60h if the faults of the main power source are reported to the Alarm Receiving
Centre - ARC (in accordance with 9.2 – PN-EN 50131-1).
*** General use – if the PSU is not mounted within an installation which is PN-EN-50131 compliant, the
acceptable current efficiency amounts to:
In case of power decay, a battery back-up is activated immediately. The PSU is housed in a metal
enclosure (colour: RAL 9005 - black) which can accommodate a 17Ah/12V battery. It features micro switches that
indicate unwanted door opening (faceplate) and detaching from the mounting surface.

2.2. Block diagram.

The PSU has been manufactured based on a high-duty system of DC/DC converter. It features a
microprocessor-based
parameters.
PSBEN10A12C
Output voltage 1,4A + 3A battery charge
Output voltage 0,56A + 3A battery charge
Output voltage 0,28A + 3A battery charge
1. Output voltage 10A + 0,6A battery charge
2. Output voltage 9,1A + 1,5A battery charge
3. Output voltage 8,4A + 2,2A battery charge
4. Output voltage 7,6A + 3A battery charge
Total current of the receivers + battery: 10,6A max.
operation control, responsible

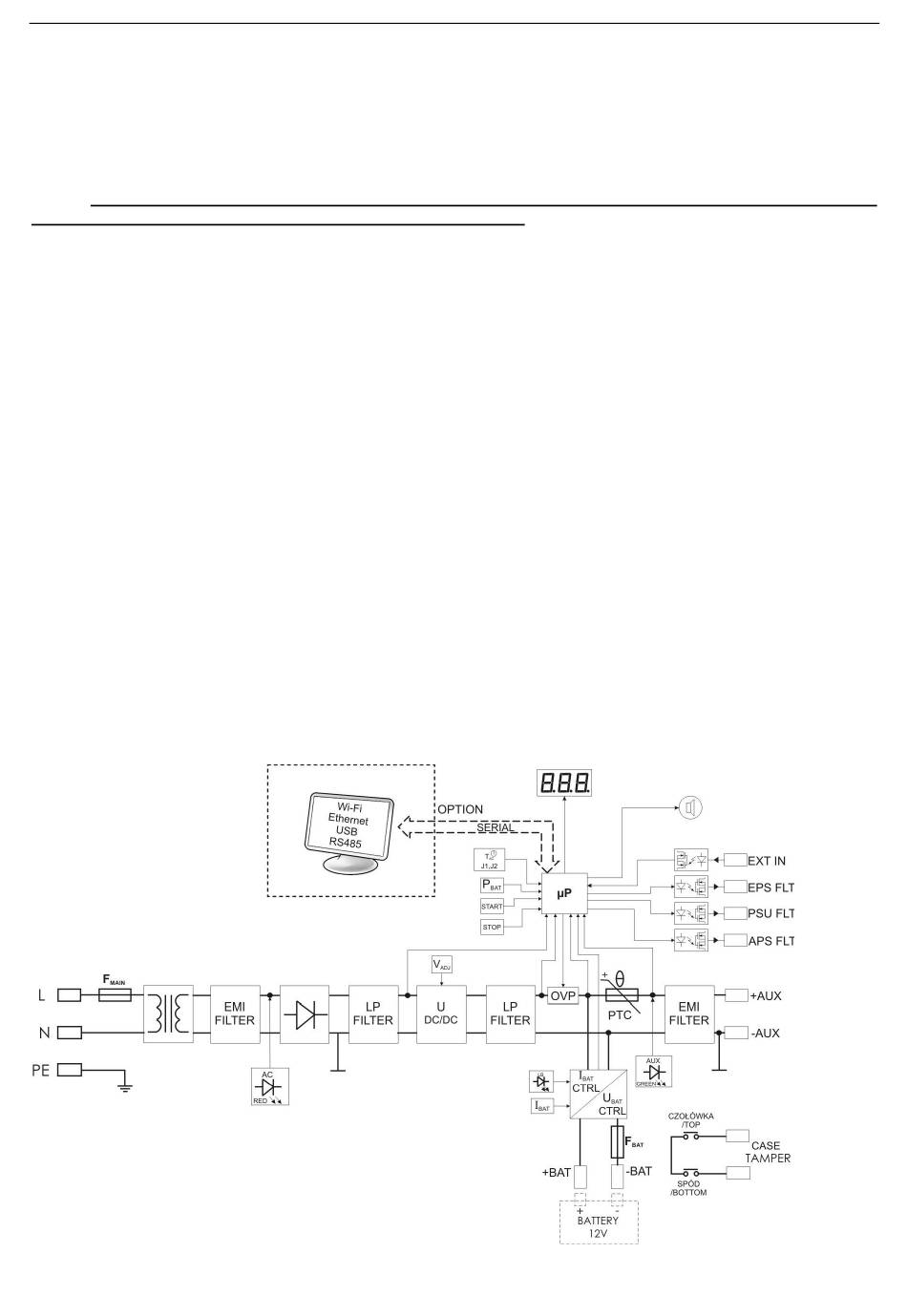

Fig. 1. Block diagram of the PSU.
for full diagnostics
4
of the PSU and battery
