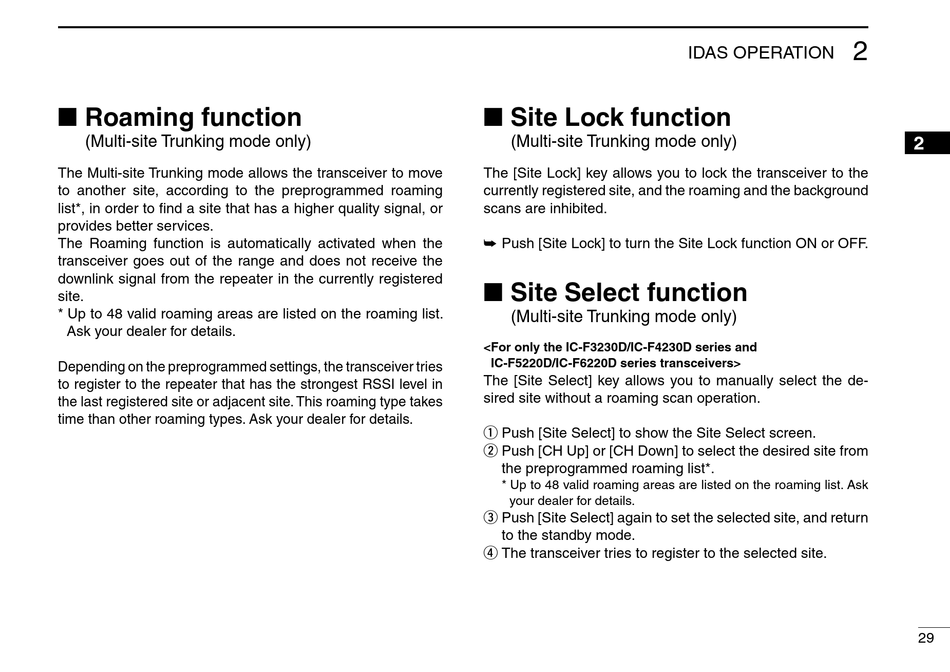

Roaming function
■
(Multi-site Trunking mode only)
The Multi-site Trunking mode allows the transceiver to move
to another site, according to the preprogrammed roaming
list*, in order to find a site that has a higher quality signal, or
provides better services.
The Roaming function is automatically activated when the
transceiver goes out of the range and does not receive the
downlink signal from the repeater in the currently registered
site.
* Up to 48 valid roaming areas are listed on the roaming list.
Ask your dealer for details.
Depending on the preprogrammed settings, the transceiver tries
to register to the repeater that has the strongest RSSI level in
the last registered site or adjacent site. This roaming type takes
time than other roaming types. Ask your dealer for details.
Site Lock function
■
(Multi-site Trunking mode only)
The [Site Lock] key allows you to lock the transceiver to the
currently registered site, and the roaming and the background
scans are inhibited.
Push [Site Lock] to turn the Site Lock function ON or OFF.
➥
Site Select function
■
(Multi-site Trunking mode only)
< For only the IC-F3230D/IC-F4230D series and
IC-F5220D/IC-F6220D series transceivers>
The [Site Select] key allows you to manually select the de-
sired site without a roaming scan operation.
q Push [Site Select] to show the Site Select screen.
w Push [CH Up] or [CH Down] to select the desired site from
the preprogrammed roaming list*.
* Up to 48 valid roaming areas are listed on the roaming list. Ask
your dealer for details.
e Push [Site Select] again to set the selected site, and return
to the standby mode.
r The transceiver tries to register to the selected site.
2
