Summary of Contents for GIA GIA-MCF-18M01

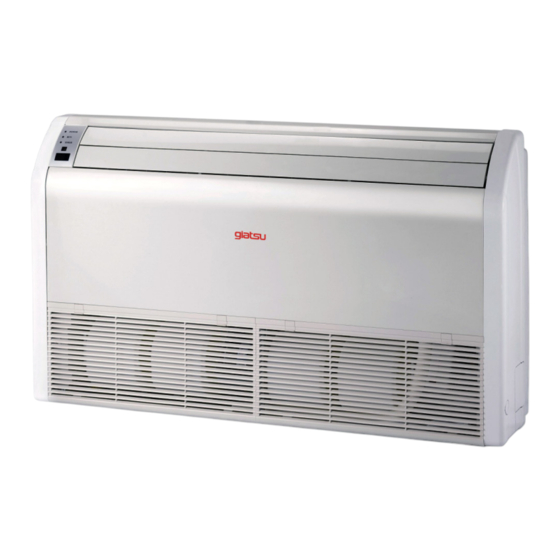

- Page 1 OWNER’S AND INSTALLATION MANUAL FLOOR AND CEILING INDOOR MULTI GIA-MCF-18M01 | GIA-MCF-24M01 Thanks for choossing our product. Please, read carefully this manual before using the product...
- Page 2 User Notice ◆ When operating, the entire capacity of the cooperating indoor unit should be not larger than 150% of outdoor unit. Otherwise, it will cause the shortage of cooling (heating) capacity. ◆ The power supply of the entire unit must be the power supply of outdoor unit. And disconnect the main power of outdoor units before cleaning.
- Page 3 persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
-
Page 4: Table Of Contents
Contents Ⅰ SAFETY INFORMATION ..................1 Ⅱ SELECTION OF INSTALLATION LOCATION AND PRECAUTIONS ......3 ....3 ELECTION OF NSTALLATION OCATION FOR ONDITIONER .............. 3 ELECTION OF NSTALLATION OCATION AUTION FOR INSTALLATION WHERE AIR CONDITIONER TROUBLE IS LIKELY TO ........................3 OCCUR Ⅲ... -
Page 5: Ⅰ Safety Information
Unitary Duct Split Unitary Duct Split Ⅰ Safety Information Please read this manual carefully before use this unit, and operate it correctly according to the guide in this manual. Please take specially note to the meaning of these two marks： Warning! This mark means that it may cause casualty or badly hurt if the operation is incorrect. - Page 6 Unitary Duct Split Unitary Duct Split ◆ Please turn off the main power of the whole unit before cleaning the conditioner, otherwise electric shock or harm may be happened. ◆ Chemical sprayer should be placed 1m or more away from the unit, otherwise fire or explode may be caused.
-
Page 7: Ⅱ Selection Of Installation Location And Precautions
Unitary Duct Split Unitary Duct Split Ⅱ Selection of Installation Location and Precautions 1Selection of Installation Location for Air Conditioner Unit The installation of air conditioner unit must be in accordance with national and local safety codes. Installation quality will directly affect the normal use of air conditioner unit. The user is prohibited from installation by himself. -
Page 8: Important Notice
Unitary Duct Split Unitary Duct Split The space around the unit is adequate for ventilation. (Refer to Fig.1) Fig.1 2 Important notice a. The unit must be installed by the professional personnel according to this install instruction to ensure the well use. Please contact the local GIATSU special nominated repair department before installation. - Page 9 Unitary Duct Split Unitary Duct Split ＊Press the fixing knob of the air intake grills, the grilles will be opened wider and then pull them out from the indoor. ＊Remove the side panel fixing screw and pull to the front direction (arrow direction) to remove.
- Page 10 When installing the indoor unit, you can refer the paper pattern for installation, and make sure that the drainage side must be 10mm lower than the other side in order to drain the condensation water fluently. Model GIA-MDI-012M01 GIA-MDI-018M01 1220 1158...
-
Page 11: Electrical Wiring
Unitary Duct Split Unitary Duct Split 4 Electrical wiring Caution: The power of every indoor unit should be connected in outdoor unit. a. Open surface panel. b. Remove the electrical box cover. c. Route the power connection cord from the back of the indoor unit and pull it toward the front through the wiring hole upward. - Page 12 Unitary Duct Split Unitary Duct Split...
-
Page 13: Install The Drainage Pipe
Unitary Duct Split Unitary Duct Split GWHD(36)NK3AO Caution！ ①. The incorrect of wiring connecting would lead malfunction of some of the electric elements. ②. Make sure that the lead between the connect end and the clamp end has some need space after the wire is fixed. ③. -
Page 14: Install The Connection Pipes
Unitary Duct Split Unitary Duct Split Fig.10 Fig.11 Fig.12 Fig.13 Fig.14 6 Install the connection pipes Connect the connect pipe with the two relative leading pipe, tie the nut on tie–in of the connect pipe tightly. Caution！ ＊Be careful in bending the connection pipes, or you will damage the pipes. ＊If the tightening torque is too great in tightening the flare nut, leakage will happen. -
Page 15: Ⅳ Constitutes And Names Of Every Part Of Floor And Ceiling Type Indoor Unit
Unitary Duct Split Unitary Duct Split Ⅳ Constitutes and Names of Every Part of Floor And Ceiling Type Indoor Unit Suitable model: GIA-MCF-12M01 GIA-MCF-18M01 GIA-MCF-24M01 Note:The appearances will be same by the different models of air conditioners. -
Page 16: Ⅴ Working Temperature Range
Unitary Duct Split Unitary Duct Split Ⅴ Working Temperature Range Working Temperature Range Indoor side state Outdoor side state Dry bulb Wet bulb Dry bulb Wet bulb temp. ℃ temp. ℃ temp. ℃ temp.℃ Rated. Cooling Max. cooling — Min. cooling Rated. -
Page 17: T The Start Of The Season
Unitary Duct Split Unitary Duct Split 3 At the start of the season ＊Check if there is blockage in inlet or outlet vent of air conditioner. ＊Check if the earth wire had earthed reliably by professional. ＊Check if the batteries in wireless remote controller had been exchanged. ＊Check if the air filter had been install well by professional. -
Page 18: Ⅶ Operating Instructions
Unitary Duct Split Unitary Duct Split Ⅶ Operating Instructions... - Page 19 Unitary Duct Split Unitary Duct Split...
-
Page 20: Ⅷ Malfunction Analyzing
Unitary Duct Split Unitary Duct Split Ⅷ Malfunction Analyzing Warning！ Do not repair air conditioner by yourself for the incorrect repair would lead electric shock or fire. Please contact service center and had the unit repaired by specialized personnel. Check the following item before contacting to repair could save your time and cost. -
Page 21: After-Sales Service
Unitary Duct Split Unitary Duct Split ＊Harsh sound heard when running. ＊The fuse or protector cut frequently. ＊Substance or water pulled in the unit involuntary. ＊Water leakage in room. ＊Over heat of power cord. ＊Odor is given out when running. 2 After-sales Service When having quality or other problems when purchasing air conditioner, please contact the local. - Page 22 C./ Industria, 13 l Polígono Industrial El Pedregar 08160 Montmeló Barcelona (Spain) Phone: (0034) 93 390 42 20 Fax: (0034) 93 390 42 05 info@giatsu.com www.giatsu.com...
