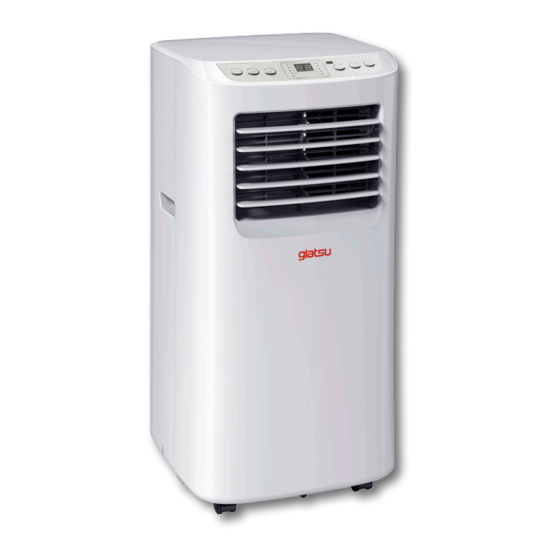

- Page 1 OWNER’S MANUAL PORTABLE GIA-PC-07P14 Thanks for choossing our product. Please, read carefully this manual before using the product...
-
Page 3: Table Of Contents
P14 Series Content I. Notes ..............................II. Features and Components ......................III. Installation and Adjustment ......................IV. Control Setting ..........................V. Drainage Instructions ........................VI. Maintenance ..........................VII. Troubleshooting ..........................VIII. Appendix ............................Thank you for choosing the luxurious and elegant mobile air conditioning. Please keep the ma- nual for later review, and read the manual carefully before use. -
Page 4: Notes
Notes * The air conditioning is only suitable for indoor use, and is not suitable for other applications. * Follow local grid interconnection rules while installing the air conditioning and ensure that it is properly grounded. If you have any question on electrical installation, follow the instructions of the manufacturer, and if necessary, ask a professional electrician to install it. -
Page 5: Features And Components
Features and Components 1. Features New look, compact structure, streamlined machine, aristocratic atmosphere. With cooling,dehumidification and fan function, Continuous Water Drainage Functions. LED displays the control panel. The machine is beautiful and elegant. High-quality remote control is equipped to facilitate operation. It adopts a user-friendly remote control design. Outdoor interface is set high to facility assembly and keep the smooth flow of the heat pipe. - Page 6 EVA Filter Front Housing Continuous Handle drainage hole Air Vent CON Filter Rear Housing Drainage Hole Exhaust Pipe Assembly Window Seating Plate Asembly...
-
Page 7: Installation And Adjustment
Installation and Adjustment 1. Installation: Warning: before using the mobile air conditioning, keep it upright for at least two hours. The air conditioning can be easily moved in the room. In the moving process, ensure that the air conditioning is in the upright position and the air conditioning should be placed on a flat surface. - Page 8 2) Elongate the exhaust pipe and snap the flat end of the exhaust pipe joints into the hole of the window sealing plate assembly (as shown in Fig.5 and Fig.6) . Notes: 1. the flat end of the exhaust pipe joints must be snapped into place. 2.
-
Page 9: Control Setting
Control Panel Setting I. Operating instructions: LED Control Panel is as follows: 1. Timer Key 2. Fan Speed Selection Key 3. Up Key 4. Display Window 5. Down Key 6.Mode Selection Key 7. Power Key 1. When the machine is powered on for the first time, the buzzer will play power-on music, and then the machine will get into standby status. - Page 10 II. Operating Instructions of the Remote Control The remote control Panel is as follows: Instructions of key operation of the high-quality remote control are as follows: 1. Power: Press the key to turn on or turn off the machine. 2. Timer: press the key to set timing.
-
Page 11: Drainage Instructions
Drainage Instructions 1. Manual drainage: 1) When the machine stops after the water is full, turn off the machine power and unplug the power plug. Notes: Please move the machine carefully, so as not to spill the water in the water pan at the bottom of the body. -
Page 12: Maintenance
Maintenance Cleaning: before cleaning and maintenance, turn off the machine and unplug the plug. 1. Clean the surface Clean with surface of machine with a wet soft cloth. Don’t use chemicals, such as benzene, alcohol, gasoline, etc.; otherwise, the surface of the air conditioning will be damaged or even the whole machine will be damaged. -
Page 13: Troubleshooting
Troubleshooting Do not repair or disassemble the air conditioning by yourself. Unqualified repair will lead to failure of the warranty card, and may cause damage to users or their properties. Problems Reasons Solutions Turn it on after connecting it to a There is no electricity. -
Page 14: Appendix
Appendix Fuse Parameters Type: FSD or 50F Voltage: 250V Current: 3.15A Schematic diagram All the technical and specific parameters,please refer to product nameplate. Due to continuous improvement,we reserve the right to change some design without any no- tice. Treatment: Don’t put the abandoned machine with other unsorted waste together. Such waste shall be placed separately for other special use. - Page 15 C./ Industria, 13 l Polígono Industrial El Pedregar 08160 Montmeló Barcelona (Spain) Phone: (0034) 93 390 42 20 Fax: (0034) 93 390 42 05 info@giatsu.com www.giatsu.com...
