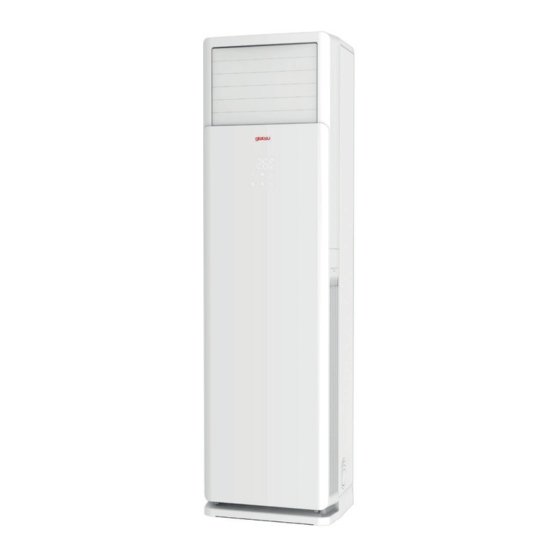

- Page 1 OWNER’S AND INSTALLATION MANUAL INDOOR UNIT COLUMN AIR CONDITIONER JÓNICA GIA-FSI-48JON Thanks for choosing our product. Please, read carefully this manual before using the product.
-
Page 2: Table Of Contents
Content Operation Precautions ......................1 Parts name ......................5 Clean and maintenance ..................6 Malfunction analysis ..................8 Installation drawing ..................11 Installation Installation prepare ..................12 Installation of indoor unit ................15 Check after installation ................... 18 Test operation ....................18 Attachment Configuration of connection pipe.............. -
Page 3: Precautions
Precautions WARNING Operation and Maintenance This appliance can be used by children aged of 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Page 4 Precautions WARNING Operation and Maintenance Do not block air outlet or air inlet. It may cause malfunction. Do not spill water on the remote controller, otherwise the remote controller may be broken. When below phenomenon occurs, please turn off air conditioner and disconnect power immediately, and then contact the dealer or qualified professionals for service.
- Page 5 Precautions WARNING Attachment Air Conditioner should be properly grounded. Incorrect grounding may cause electric shock. Don't use unqualified power cord. Make sure the power supply matches with the requirement of air conditioner.Unstable power supply or incorrect wiring or malfunction. Please install proper power supply cables before using the air conditioner.
- Page 6 Precautions Attachment WARNING All wires of indoor unit and outdoor unit should be connected by a professional. If the length of power connection wire is insufficient, please contact the supplier for a new one. Avoid extending the wire by yourself. For the air conditioner with plug, the plug should be reachable after finishing installation.
-
Page 7: Parts Name
Parts name Indoor unit Display and Buttons Swing Louver Air outlet ON/OFF button Cooling button Front Panel Heating button Fan button Increase button Decrease button NOTE：After connecting the power, Press " " and " " simultaneously to turn on or turn off panel child lock function. -
Page 8: Clean And Maintenance
Clean and maintenance WARNING ■ Turn off the air conditioner and disconnect the power before cleaning the air conditioner to avoid electric shock. ■ Do not wash the air conditioner with water to avoid electric shock. ■ Do not use volatile liquid to clean the air conditioner. Clean surface of indoor unit When the surface of indoor unit is dirty, recommended to use a soft dry cloth or wet cloth to wipe it. - Page 9 Clean and maintenance NOTE: The filter should be cleaned every three months. If there is much dust in the operation environment, clean frequency can be increased. After removing the filter,do not touch fins to avoid injury. Do not use fire or hair dryer to dry the filter to avoid deformation or fire hazard. Checking before use-season 1.
-
Page 10: Malfunction Analysis
Malfunction analysis General phenomenon analysis Please check below items before asking for maintenance. If the malfunction still can't be eliminated,please contact local dealer or qualified professionals. Phenomenon Check items Solution Whether it's interfered severely Pull out the plug. Reinsert the plug (such as static electricity, stable after about 3min, and then turn on voltage)? - Page 11 Malfunction analysis Phenomenon Check items Solution Because indoor air is cooled rapidly. Mist is emitted Is indoor temperature and After a while, indoor temperature and from indoor unit’s humidity high? humidity will be decrease and mist air outlet. will disappear. Temperature can’t be adjusted under Is unit operating under auto auto mode.
- Page 12 Malfunction analysis Error Code When air conditioner status is abnormal, temperature indicator on indoor unit will blink to dispiay corresponding error code. Please refer to below list for identification of error code. Below listed error codes are only part error codes. Please refero to error code list in serive manual for more information.
-
Page 13: Installation Drawing
Installation drawing Indoor unit Space to the ceiling Space to the At least 10cm obstruction Space to the obstruction... -
Page 14: Installation Prepare
Installation prepare Tools 1 Level meter 2 Screw driver 3 Impact drill 4 Drill head 5 Pipe expander 6 Torque wrench 7 Open-end wrench 8 Pipe cutter 9 Leakage detector 10 Vacuum pump 11 Pressure meter 12 Universal meter 13 Inner hexagon spanner 14 Measuring tape Selection of location Basic requirement... - Page 15 Installation prepare Safety precaution 1. Must follow the electric safety regulations when installing the unit. 2. According to the local safety regulations, use qualified power supply circuit and circuit break. 3. Make sure the power supply matches with the requirement of air conditioner. Unstable power supply or incorrect wiring or malfunction.
- Page 16 Installation prepare NOTES FOR ELECTRIC WIRING 1.Special circuit must be used for power supply. 2.The circuit must be installed by special serviceman. 3.Please do the wiring according to the following wiring disgram.the screws must be tightly fastened,the slippery screws must be changed,the tapping screw cannot be used for electric wiring.
-
Page 17: Installation Of Indoor Unit
Installation of indoor unit Step 1: Choosing installation location Recommend the installation location to the client and then confirm it with the client. Step 2: Open piping hole 1. Choose the position of piping hole according to the direction of outlet pipe. The position of piping hole should be a little lower than the wall-mounted frame, shown as below. - Page 18 Installation of indoor unit 3.Choose the direction of outlet pipe according to the position of air conditioner. Drain pipe Small connecting nozzle Big connecting nozzle Right outlet Left outlet Rear outlet 4.Connecting the drain pipe and connecting pipe. NOTICE: Connect the pipe of indoor unit (1).
- Page 19 Installation of indoor unit Step 4: Connect wire of indoor unit 1.Open the panel, remove the screw on the wiring cover and then take down the cover. N(1) 2 yellow- blue black brown (gray) green Outdoor unit 2. Make the power connection wire go through the cable-cross hole at the back of indoor unit and then pull it out from the front side.
-
Page 20: Check After Installation
Check after installation Check according to the following requirement after finishing installation. Items to be checked Possible malfunction Has the unit been installed firmly? The unit may drop, shake or emit noise. Have you done the refrigerant leakage It may cause in sufficient cooling(heating) test? capacity. -
Page 21: Configuration Of Connection Pipe
Configuration of connection pipe 1. Standard length of connection pipe ● 5m, 7.5m, 8m. 2. Min. length of connection pipe is 3m. 3. Max. length of connection pipe and max. high difference. Max length Max length Cooling Max height Cooling Max height of connection of connection... -
Page 22: Pipe Expanding Method
Pipe expanding method Improper pipe expanding is the main cause of refrigerant leakage. Please expand the pipe according to the following steps: A: Cut the pipe E: Expand the port Confirm the pipe length according to the Expand the port with expander. distance of indoor unit and outdoor unit. - Page 23 C./ Industria, 13 l Polígono Industrial El Pedregar 08160 Montmeló Barcelona (Spain) Phone: (0034) 93 390 42 20 Fax: (0034) 93 390 42 05 info@giatsu.com www.giatsu.com...
