Servo assignment to receiver channels:
1. Throttle
2. Roll (ailerons)
3. Pitch (elevator)
4. Yaw (rudder)
5. Mode (multicopter mode channel)
Before you begin creating a model, make sure that you have setup
the correct transmitter mode in „Main menu -> System ->
Configuration -> MODE 1-4". The basic, standardized, assignment
of transmitter inputs to flight controls are based upon this selection.
First it is necessary to create a model in the transmitter and then bind
the DC/DS transmitter with the receiver which will control the given
model. See chapter 9.3: „Receiver->Binding"
Note:
For safety reasons we strongly recommend removing the
propellers when working with a multicopter model.

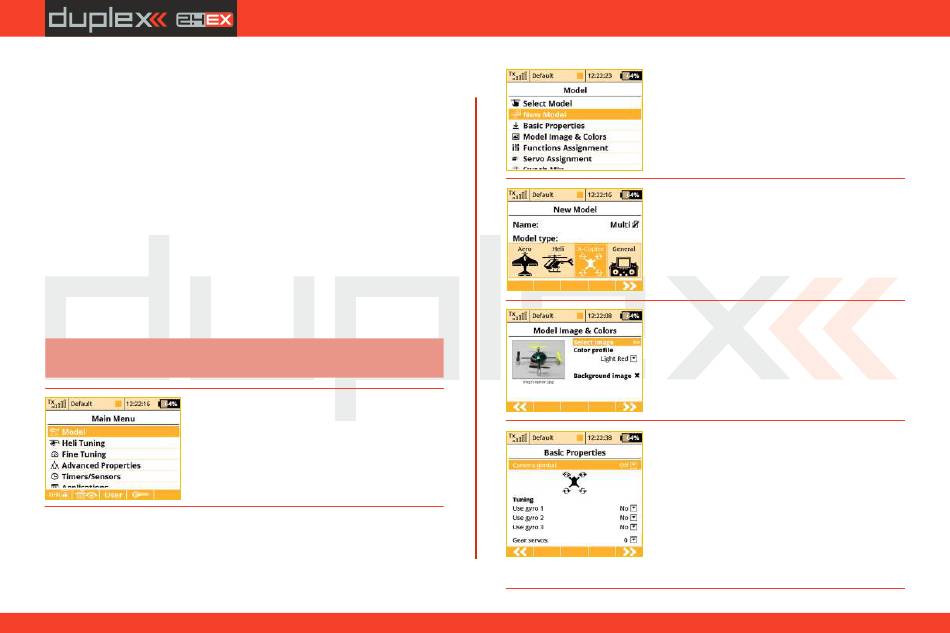

1. Switch-on the transmitter. In the main
display push the key „menu". Select the
item „Model" and push the „3D button".
computer radio control system
50
2. Select the item „New model" and push
the „3D button".
3. Enter the name of your model and press
„F5(OK)" (Note: you must enter a model
name to proceed.) Then select the model
type „X-Copter". Confirm by pushing the
„F5(Next)" button.
4. Choose an optional model image and
color profile according to your personal
preferences. The images must be loaded to
the internal SD card before you use them.
You can skip this step by pressing „F5
(Next)" button.
5. Select the basic properties of your
multicopter, i.e. type of camera gimbal (off,
two axes or three axes), number of gyro
tuning functions and gear servos.
