4.3.6 Changing the transmitter mode

The transmitter is equiped with universal multimode gimbals. Both
gimbals are identical and can be adjusted mechanically for modes 1-
5. After mechanical adjustment it is necessary to set a specific
transmitter mode in the menu System – Configuration – Stick mode
1-4.
To change the quad sticks settings, unscrew the back cover of the
transmitter and disconnect the battery connector.

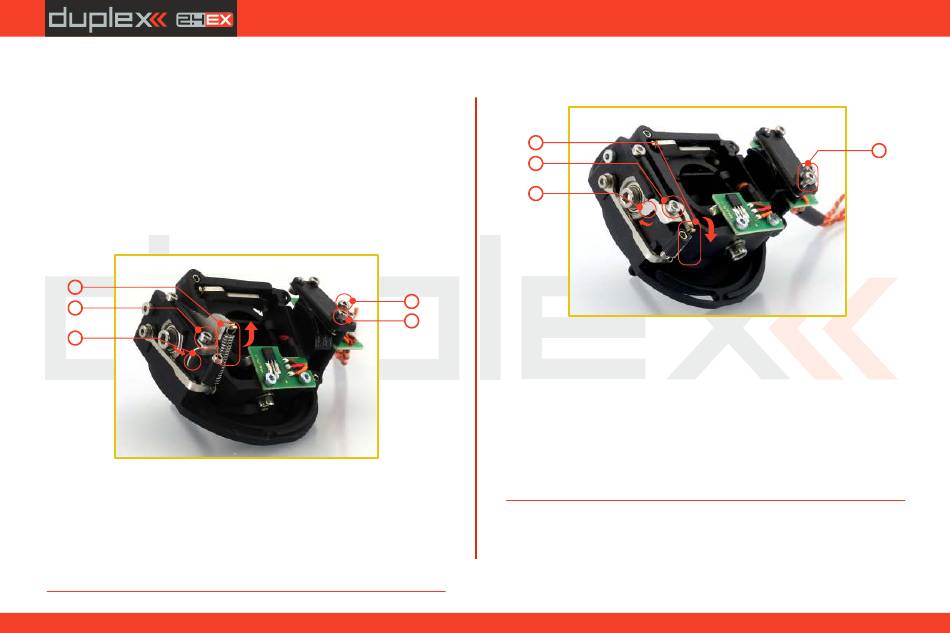

A. Setting the multi-mode gimbal into the mode without
locking the middle position - gas
2
1
A
3
C
1. Loosen the screw A.
2. Lift the lever B so as it is possible to arrest the lock
3. Turn the lock C 90° in the direction of the arrow and arrest the
lever in the upper position. B
4. Tighten the screw A.
5. Tightening the the screws D
steps and smooth brake.
computer radio control system
E
5
B
5
D
C.
and sets the desired tension with E
B. Setting the multi-mode gimbal into the mode with locking
the middle position - elevator
2
1
3
1. Loosen the screw A.
2. Slightly lift the lever B.
3. Turn the lock in the direction of the arrow and arrest the lever C
in the upper position.
4. Move the lever in the direction of the arrow to release the lever C
B.
5. Tighten the screw A.
6. Loosen the screws E and D in a position so that tension is removed
from the stick.
29
E
D
A
C
B
