16. Connect the control stick assembly wires to the Tx board
connector (4 wires X, Y, S
lengths. Connect the longest wire as the first one from the
outside of the transmitter (4 connectors
17. Secure the stick assembly wires into their holders.
18. Mount the "T" plate back into place. First insert the connectors
of the "T" printed circuit board into the body of transmitter and
then carefully insert the "T" plate into its connectors on the
main board. Be careful while handling the wires underneath the
"T" plate to avoid any resistance when installing the "T" plate. If
the wires cause any resistance or if the wires are pinched or
stressed in any way, please re-route the wires and try the "T"
board installation again.
19. Reinstall the "T" plate mounting screws.
20. Reconnect transmitter battery pack and reinstall radio back
cover and cover screws.
After the switch has been installed into the stick assembly you have
to re-configure and enable it in the transmitter software before it will
function properly. This can be done in the transmitter menu "Main
menu->Advanced setup->Sticks/ switches setup", (see Installation
and Configuration of Gimbals Switches )
computer radio control system
). Pay close attention to the wire
X, Y, S ).

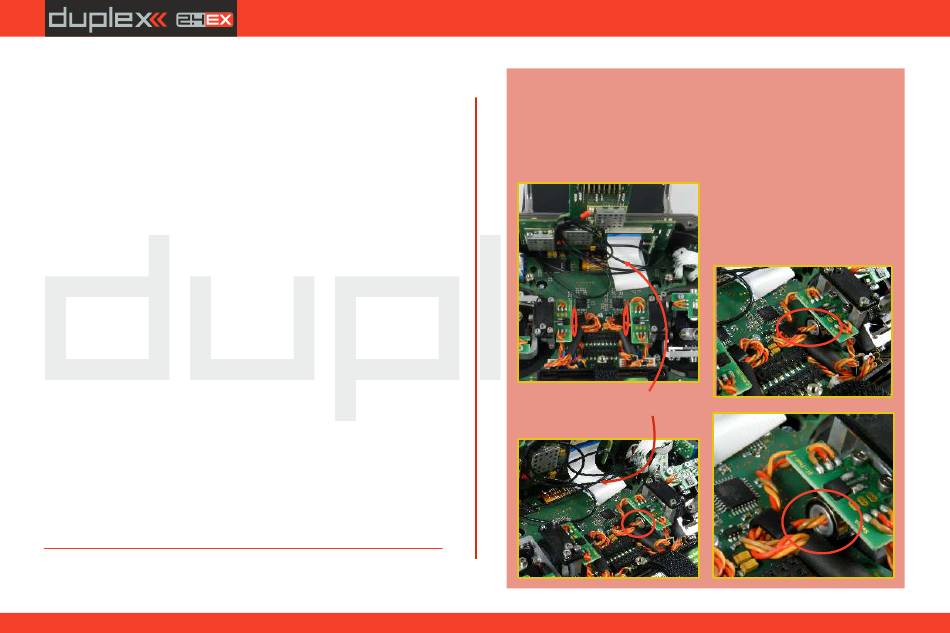

Warning:
You should keep the wire placement as shown in the
picture. The wires must be placed as far as possible
from the magnetic element
permanent contact of the wire with the magnetic
element. It could damage the insulation of the wires.
a)
a)
Proper arrangement
of the display flat,
flexible cable.
a)
