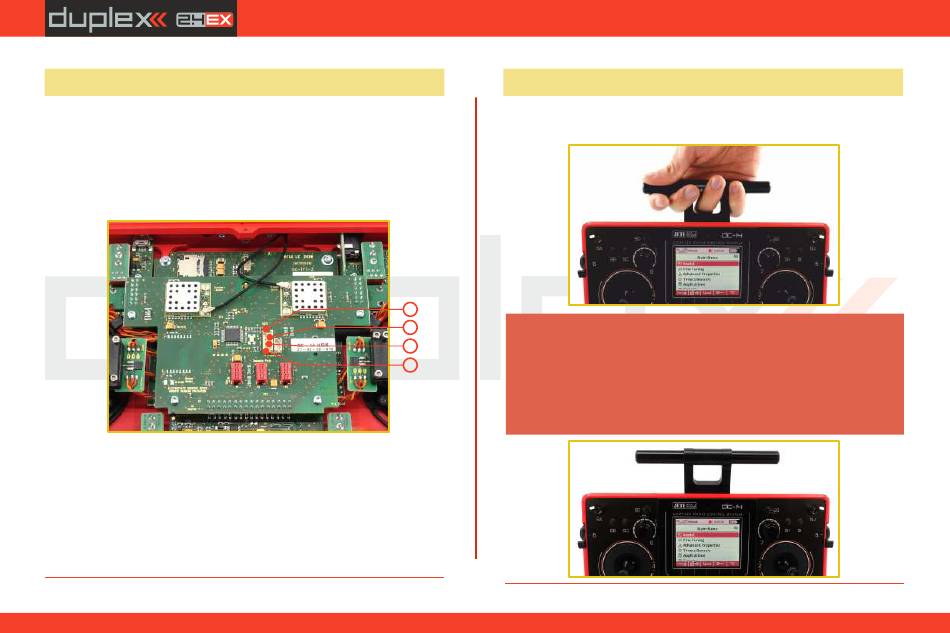

3.7 PPM Input/Output Connector
The PPM output is accessible via internal connector labeled "B". This
connector features a non-stabilized battery voltage output in the
range of 3.2V - 4.2V (max. 1A) which can be used as a power supply
for the connected HF module as well as for the PPM signal output.
The transmitter output functions are in the form of a standard PPM
signal.
1. PPM input (3V logics)
2. Positive (+) pin
3. Negative (-) pin
4. PPM signal output (3V logics, configurable in „System
->Configuration")
computer radio control system
1
2
3
4

3.8 Handling

The DC-14 II transmitter can be comfortably carried by the antenna
cover/handle as shown in the image below.
Before each flying session, and especially with a new
Warning:
model, it's important to perform a range check. If you
are operating a model with a DC-14 II transmitter do
not shield and avoid contact of the transmitter
antenna with your body. This might increase
likelihood of range problem.
