4.5 Digital Trims

Transmitter gimbals are used for controlling the basic flight
functions like throttle, roll(aileron), pitch(elevator), and yaw(rudder).

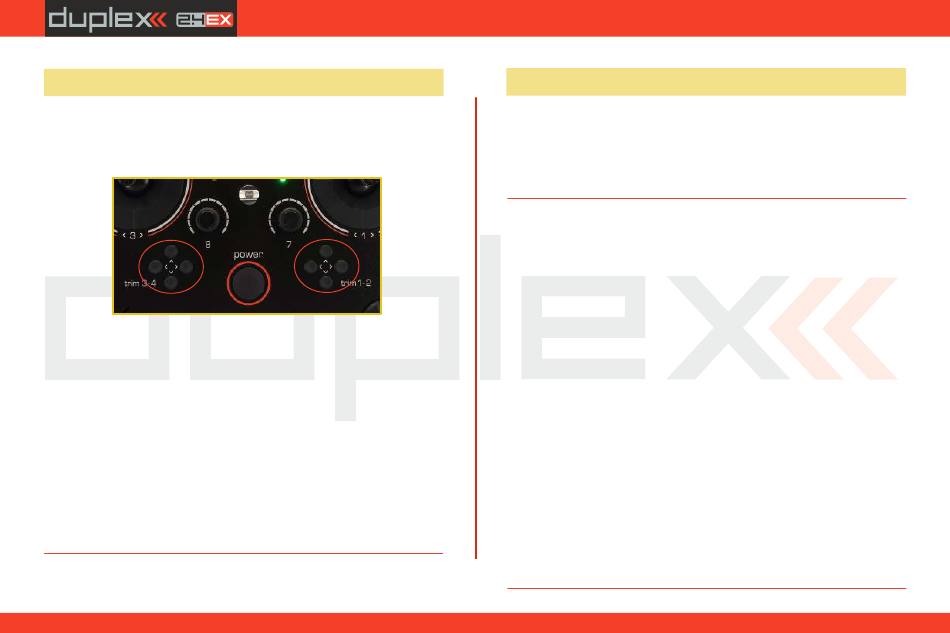

Immediately under the transmitter gimbal sticks you can see four
push-buttons which are the programmable, digital trim buttons.
The digital trims are used for fine trimming of the flying model. When
the transmitter is turned off, the trim values are stored in memory
and are recalled when the system is turned back on.
Every model has its own trim setup. Also all flight modes may be
configured to use different trim configurations. By pressing one of
the buttons, the screen will automatically change to display the
graphic position of that trim. The transmitter trims feature an
acoustic step and center beep alarm.
computer radio control system

4.6 Transmitter Battery Pack

The DS-14II transmitter is powered by a Li-Ion type battery pack and
comes equipped with its own built-in advanced battery
management and charging circuit. In switched-on position, the
transmitter LCD display shows the status and condition of the
battery pack. The Li-Ion battery is factory installed.

4.6.1 Charging

The DS-14II transmitter can be charged with the included wall power
supply, optional car charger, or through the built-in USB port. For fast
charging use the included wall power supply. Charging time is
around 3 hours. During the charging process the transmitter can be
in switched-on or off position. The charging status is clearly shown
by lit red and green LEDs. If the transmitter is switched on during the
charging process you can see the charging progress directly on the
LCD display.
Transmitter Charging:
1. Plug-in the included power supply to a wall outlet.
2. Plug the main charging connector into the transmitter. If the
green LED goes out, the transmitter is not fully charged. The
red LED indicates the battery charging status.
•
Discharged battery – red LED is slow blinking, the green LED
is OFF
•
Close to full charge – red LED is permanently ON, the green
LED is OFF
•
Fully charged battery – the red and green LEDs are ON
