4.3.7 Transmitter Gimbals with Switch or Button
Installation
If you want to operate the DS-24 transmitter using the optional stick
end switch or button functions, you must purchase one or more of
these separately:
• Stick with 2-position switch
• Stick with 3-position switch
• Stick with push-button
• Stick with potenciometer
Advice:
For installation of the optional gimbal stick ends with
switches/buttons we recommend that you send your
transmitter to one of the factory authorized service
centers or to your authorized dealer.

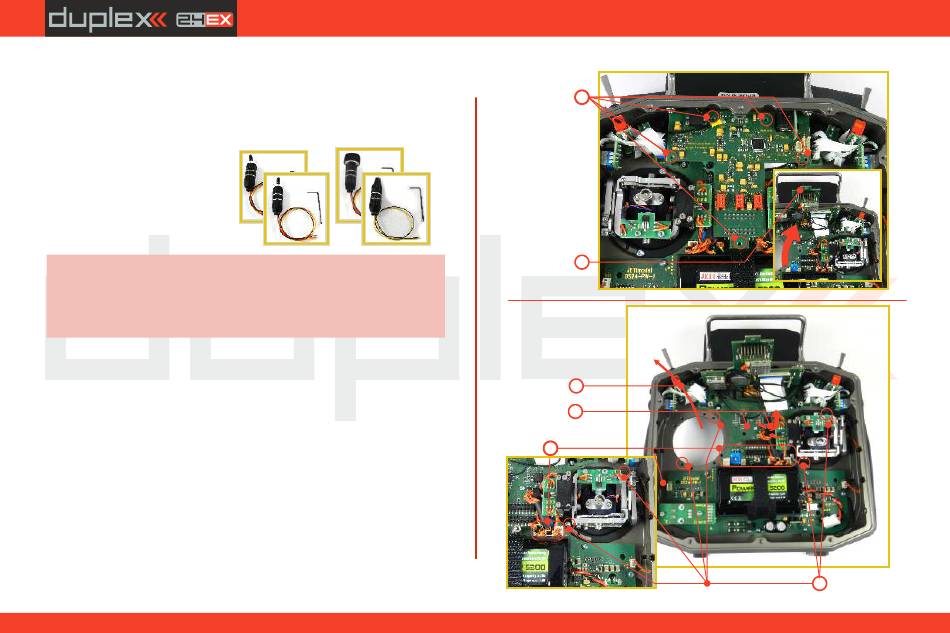

1. Switch off the transmitter and remove the 8 screws that secure
the radio back cover. Next, remove the radio back cover. Be sure
to disconnect the transmitter battery pack connector .
2. Remove the screws of the upper printed circuit board (the "T"
plate).
3. Remove the "T" circuit board by grasping the plate by its edges
near where the bottom fastener goes. Gently lift the board to
disconnect its connectors from the board below. Once
disconnected, tilt the board upward toward the display so that
it is out of the way.
4. Disconnect the control stick assembly wires from the Tx board.
(4 wires X, Y, S ).
5. Remove the stick assembly connecting wires from their holders
on the main board.
computer radio control system
2
3
7
5
4
Y
S
X
M
30
Y
Y S
S
X X
M
M
6
EN
