3.3 Control Stick Assembly

Note:
When handling with back cover removed always
switch off the transmitter and disconnect the
battery (unplug the connector). Also do not connect
the charging adapter or the USB cable.
Restrict your contact with the printed circuit
Warning:
boards to a minimum. You can damage your
radio by electrostatic discharge!

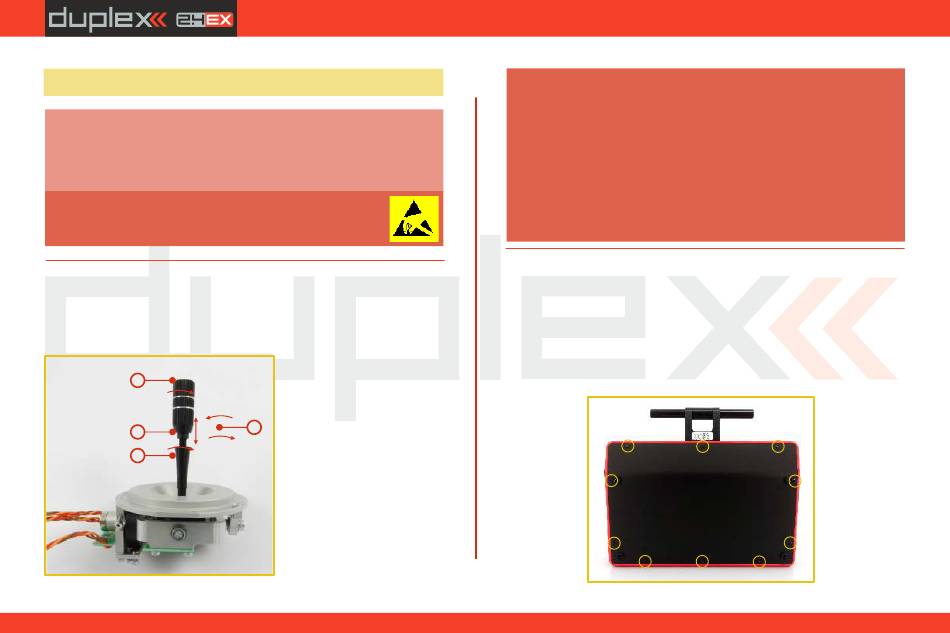

3.3.1 Control Stick Length Adjustment

The stick length is adjustable to suit your flying style. The stick end
separates into two parts.
1
2
3
computer radio control system
1. Hold the top part of the
s t i c k e n d f i r m l y a n d
u n s c r e w b y t u r n i n g
counter-clockwise .
2. Turn the stick end
clockwise to shorten or
4
c o u n t e r c l o c k w i s e t o
lengthen the overall stick
length.
3. Adjust the lower part
to support the top part of
the stick end.
4. Fi n a l l y s e c u r e b y
tightening both parts to
each other.
Warning:
If you have installed optional sticks with switch or button ends,
make sure that while adjusting the stick length you observe the
wires that pass through the stick shaft and through the gimbal
opening in order to prevent damaging the connecting cables.
The safest method is to remove the small set-screw from the
side of the stick housing to allow the switch or knob internals to
remain stationary while you rotatethe stick housing for height
adjustment.

3.3.2 Swivel Control Stick Adjustment

In order to customize the feel of your radio you may adjust the angle
of the stick control assemblies.
1. switch off the transmitter and remove the 10 screws that secure
the radio back cover. Next, remove
Be sure to disconnect the transmitter battery pack connector.
14
EN
the radio back cover.
