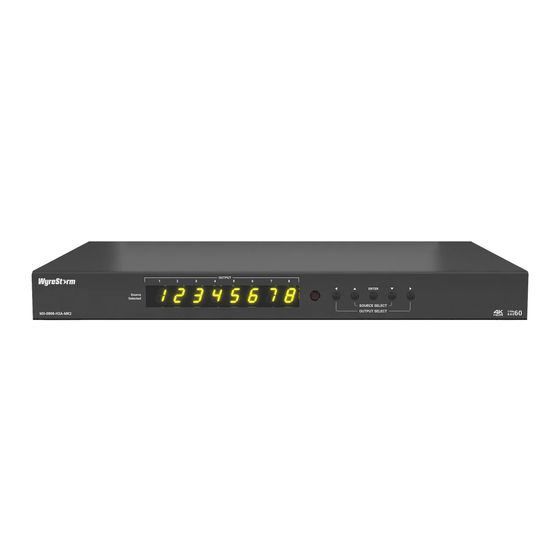

4K HDR 8x8 Pure HDMI Matrix with Scaling Outputs,
Audio De-embed & ARC
MX-0808-H2A-MK2
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
IMPORTANT! Installation Requirements
• Visit the product page to download the latest firmware, document version,
additional documentation, and configuration tools.
• Read through the
Wiring and Connections
guidelines before creating or choosing premade cables.
• While this product supports CEC, WyreStorm cannot guarantee
compatibility with all forms of CEC communication.
Basic Wiring Diagram
Built-in Web UI for Configuration and Control
Requires connection to LAN (Local Area Network)
Copyright © 2021 WyreStorm Technologies |
MX-0808-H2A-MK2 Quickstart Guide | 210331
section for important wiring
Router
Ethernet
RS-232
AC
Mains
HDMI
HDMI
HDR Source
HDR Source
wyrestorm.com
In the Box
1x MX-0808-H2A-MK2 Matrix
1x AC Power Cord (US/UK/EU/AU)
8x 3.5mm 5-Pin Terminal Block
1x 3.5mm 3-Pin Terminal Block
1x IR Remote (CR2025 Battery not Included)
2x Matrix Mounting Brackets with screws
1x Quickstart Guide (this document)
Control System
Amplifier
Digtial Audio
HDMI
1080p Display
1 of 4
Quickstart Guide
KEY
Passive HDMI
Active HDMI
Ethernet
Digital Audio
Control
Power
MX-0808-H2A-MK2
Audio Return
Active HDMI (CAB-HAOC-xx)
Channel
Runs of 10m/33ft or more
HDR Display
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
Advertisement
Related Manuals for Wyrestorm MX-0808-H2A-MK2
Summary of Contents for Wyrestorm MX-0808-H2A-MK2
- Page 1 4K HDR 8x8 Pure HDMI Matrix with Scaling Outputs, Audio De-embed & ARC Quickstart Guide MX-0808-H2A-MK2 WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the installation process. In the Box IMPORTANT! Installation Requirements 1x MX-0808-H2A-MK2 Matrix •...
- Page 2 Wiring and Connections WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in its entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.
- Page 3 Troubleshooting Tips: • Verify that all HDMI connections are not loose and are functioning properly. • WyreStorm recommends using a cable tester or connecting the cable to • Verify that the output resolution of the source and display is supported by other devices to verify functionality.
- Page 4 Safety and Emission CE | FCC | RoHS | RCM | EAC Note: WyreStorm reserves the right to change product specification, appearance or dimensions of this product at any time without prior notice. Warranty Information WyreStorm Technologies LLC warrants that its products to be free from defects in material and workmanship under normal use for a period of five (5) years from the date of purchase.
