StarTech.com US2GA30 Quick Start Manual

USB-A™ 2.5Gb NBase-T Network Adapter

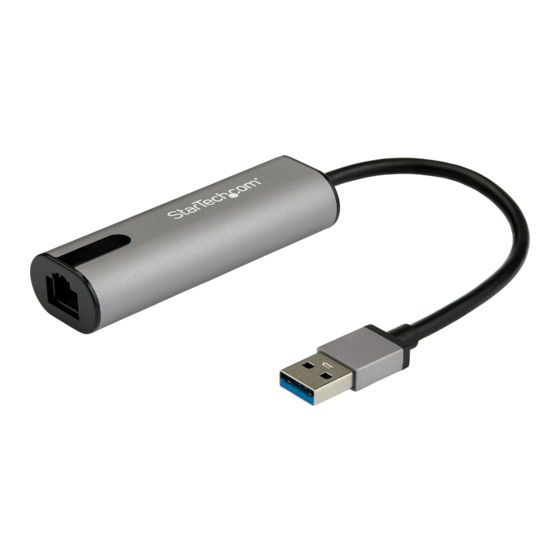

Product Diagram (US2GA30)
2
1
Port/LED
1 RJ45 Port • Used to connect to a Network Device.
• Solid Blue: Indicates that the CAT5/6/6a Cable
is connected to the RJ45 Port with a link speed
of 2.5Gbps.
• Solid Green: Indicates that the CAT5/6/6a
2
LED
Cable is linked to the RJ45 Port with a link
speed of 1Gbps/100Mbps/10Mbps.
• Flashing LED: Indicates network activity.
• Off: Indicates no connection.
• Used to connect the Network Adapter to the
3 USB-A Connector
Host Computer.
Requirements
For the latest requirements, please visit www.startech.com/US2GA30.
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
3
Function
Installation
Hardware Installation
1. Connect a CAT5/6/6a Cable to the RJ45 Port on the Network Adapter and to a
Network Device.
2. Connect the USB-A Connector on the Network Adapter to a USB-A port on the
Host Computer.
Driver Installation
1. If the Drivers do not automatically download when you connect the Network
Adapter to the Host Computer, a message that a Virtual CD is loaded will appear.
2. Click on the message, the CD Drive screen will open.
3. Click on the folder that is compatible with your Host Computer and run the RTK_
NIC_DRIVER_INSTALLER file to begin the background installation.
Quick-Start Guide
CD Drive screen
Manual Revision: March 19, 2020 2:10 PM
