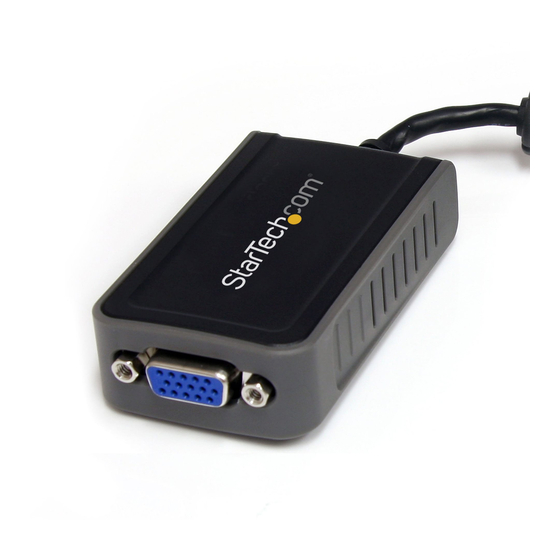

- Page 1 USB2VGAE2 Instruction Manual USB to VGA Adapter USB 2.0 to VGA Multi Monitor External Video Adapter *Please ensure that the driver installation is complete prior to the physical installation of the USB 2.0 to VGA adapter...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Installation ............... 2 Driver Installation .................2 Multiple USB Video Adapter Installation ........3 Verifying Installation ..............4 Configuring the USB Video Adapter ......5 Display ID ..................5 Display Resolution ...............5 Display Rotation ................6 Display Modes ................6 Identify Monitors ................7 Multi-Display Control Panel ............8... -
Page 4: Introduction
Introduction Packaging Contents • 1 x USB2VGAE2 video adapter • 1 x Driver CD • 1 x Instruction Manual System Requirements • Available USB 2.0 port • Single Video Adapter: CPU: Intel/AMD single core 1.5GHz or higher RAM: 512MB or more •... -
Page 5: Installation
Installation Please ensure that the driver installation is complete prior to the physical installation of the USB 2.0 to VGA adapter Driver Installation Insert the Driver CD into your CD/DVD-ROM drive. If the installation program does not begin automatically, locate the Setup.exe application. -
Page 6: Multiple Usb Video Adapter Installation
Click “Finish” to complete the Hardware Wizard. Multiple USB Video Adapter Installation Ensure you have the latest version of the drivers installed, otherwise, please download them from the StarTech.com website (www.startech.com). Complete the installation steps, up to when you plug in the first USB Video Adapter. -
Page 7: Verifying Installation
Connect the USB type A connector on the second USB Video Adapter to an available USB 2.0 port on the host computer. The driver installation will begin automatically. Repeat these steps for each additional USB Video Adapter you wish to install. -
Page 8: Configuring The Usb Video Adapter
Configuring the USB Video Adapter Look for the USB Video Adapter icon ( ) on your Windows Start bar. Right-click this icon to access the variety of functions associated to the adapter. NOTE: The Aero desktop theme is not supported by this adapter, so should be disabled prior to use of the USB Video Adapter. -
Page 9: Display Rotation
Display Rotation 4 options available: “0°, 90°, 180°, 270° when used with the Extended or Primary display modes. It is a useful function for some rotatable display devices. Display Modes “EXTENDED” DISPLAY MODE (DEFAULT) A default display mode; this feature allows the attached USB Video Adapter enabled display to work as an “Extended”... -
Page 10: Identify Monitors
“PRIMARY” DISPLAY MODE A unique feature to allow the USB Video Adapter to act as the main working display. The USB Video Adapter will work as the main graphics adapter on the system. The on-board display will work as the extended display. -
Page 11: Multi-Display Control Panel
Multi-Display Control Panel A unique feature to allow quicker and simpler management of a multi-display environment. A series of hotkeys to quickly move the active window or mouse cursor to the desired display (either on-board or each USB Video Adapter). The default setting of the hotkeys can be found in the Hotkey List of “Multi-Display Control Panel”. -
Page 12: Specifications
Specifications Bus Interface USB 2.0 USB type A male Connectors DE-15 VGA female Onboard Memory 16MB 1600x1200 (standard) Maximum Video Resolution 1680x1050 (widescreen) Total Number of Adapters Compatible Operating Windows 2000/XP/Vista/7 Systems (32/64-bit) Supported Video Resolutions Resolution Color Depth Refresh Rate 800x600 16/32-bit 60/75Hz... -
Page 13: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 14 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
