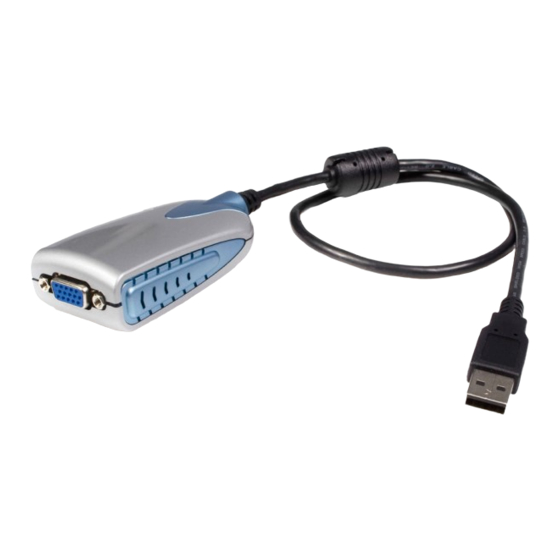

USB 2.0 to VGA Video Display
Graphics Adapter
USB2VGAE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USB2VGAE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for StarTech.com USB2VGAE

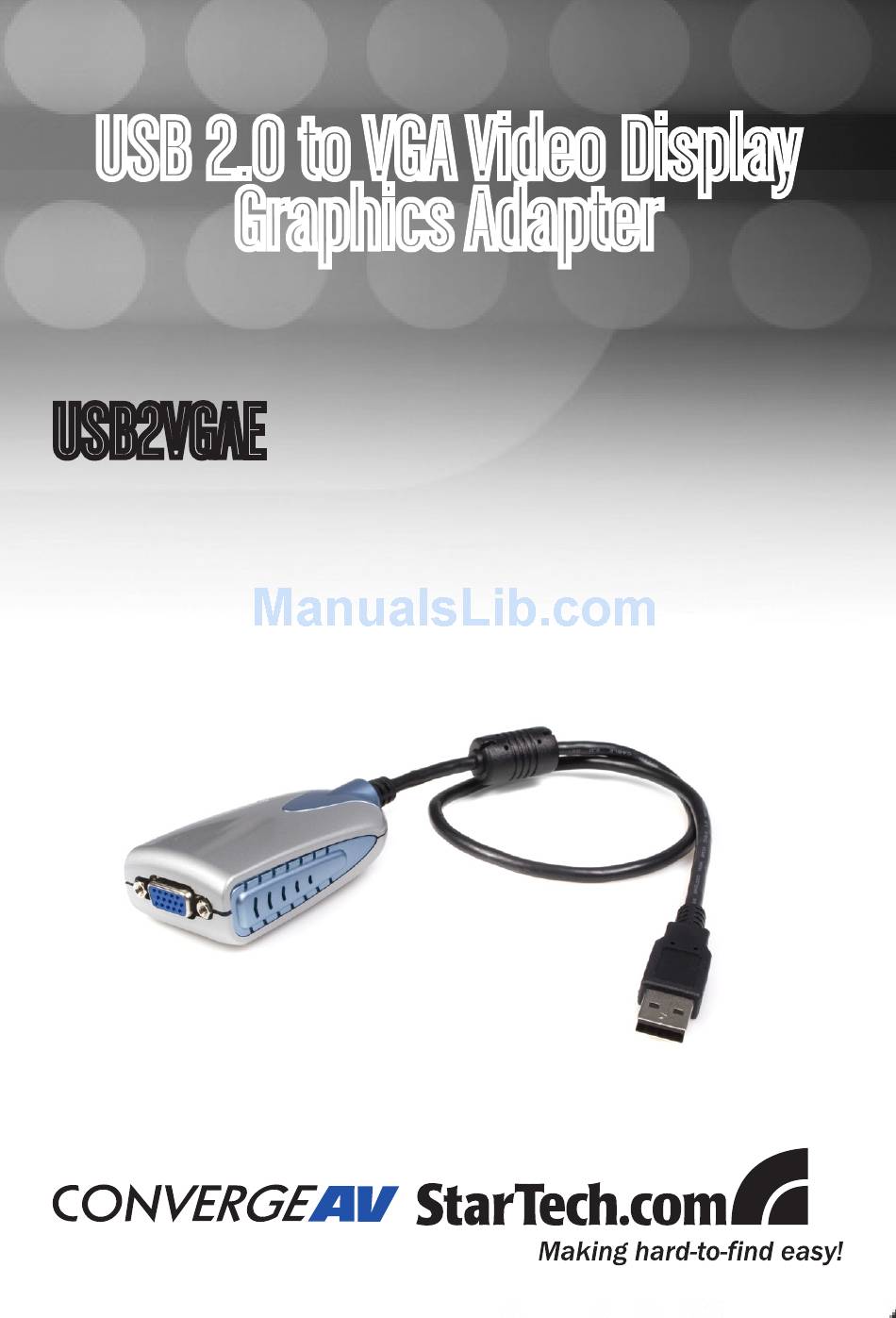

  • Page 1 USB 2.0 to VGA Video Display Graphics Adapter USB2VGAE...
  • Page 2 StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowl- edgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all...
  • Page 3: Table Of Contents

    Support Modes ................3 Support Resolutions ..............4 USB-Graphics Card (Extended) ..........4 Mirror ..................5 USB-Graphics Card (Off) ............5 Display Properties of the USB2VGAE .......... 6 Virtually Repositioning Your Displays ......... 7 Appendix ..................8 Frequently Asked Questions ............8 Troubleshooting Tips ..............9 Technical Support ................. 10...
  • Page 4: Introduction

    Instruction Manual Introduction Thank you for purchasing a StarTech.com USB2VGAE USB 2.0 to VGA Video Display Graphics Adapter. This innovative device allows you to easily add a second display without installing a new video card, while running resolutions of up to 1280x1024.
  • Page 5: Installation

    Install to complete the installation. Connect the external display device to the VGA connector (DB15) of the USB2VGAE adapter and turn the display power on. Then, connect the USB2VGAE to your smart phone or PDA**. Your mobile device’s display should now be visible on your external display device.
  • Page 6: Windows Ce Un-Installation

    Instruction Manual Windows CE Un-Installation Disconnect the USB 2.0 Graphics card from your smart phone or PDA. Select Remove Programs from the Settings menu. Select MCT Trigger USB 2.0 VGA for Win Mobile, then click Remove. Select Yes to remove the program and complete the un-installation process.
  • Page 7: Support Resolutions

    Instruction Manual Support Resolutions Aspect Ratio Resolution Color Quality 1280 x 1024 16,32 bit 1024 x 768 16,32 bit 800 x 600 16,32 bit 640 x 480 16,32 bit Note: 1280 x 768 is the ideal resolution for viewing DVDs. USB-Graphics Card (Primary) To make the USB 2.0 Graphics Card the main display adapter in the system.
  • Page 8: Mirror

    Instruction Manual USB-Graphics Card (Extended) By default, USB2VGAE will extend your Windows desktop. You can change the relative position of this extension under the Display Proper- ties (Go to Control Panel -> double click on the Display and select the Settings tab).
  • Page 9: Display Properties Of The Usb2Vgae

    Instruction Manual Display Properties of the USB2VGAE To access the Display Properties for the USB2VGAE, go to Control Panel and double click on the Display icon. Select the Settings tab. Click on the Display pull-down menu and select the Default Monitor on USB 2.0 Graphics Card-Extend.
  • Page 10: Virtually Repositioning Your Displays

    Click OK or Apply to save the changes. To make sure the USB2VGAE has been installed successfully: Right-click on My Computer and select Manage, to open the Computer Management window.
  • Page 11: Appendix

    Instruction Manual Appendix Frequently Asked Questions Q: Why can’t I make the USB 2.0 to Graphics Card the primary dis- play? A: Some video cards ship their product with a utility that prevent other video cards from being set as the primary card. Check the bottom right hand corner taskbar for the utility.
  • Page 12: Troubleshooting Tips

    Instruction Manual Q: Direct3D does not work? A: This is a current limitation of the adapter. Please check for driver up- dates in the future to add support for this. If your application requires this, please use the main display adapter. Q: Why won’t the Adapter work on Windows Vista 64 bit version? A: Currently, the driver is compatible with Windows Vista 32 bit version only.
  • Page 13: Technical Support

    Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or...
  • Page 14 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Serv-...
