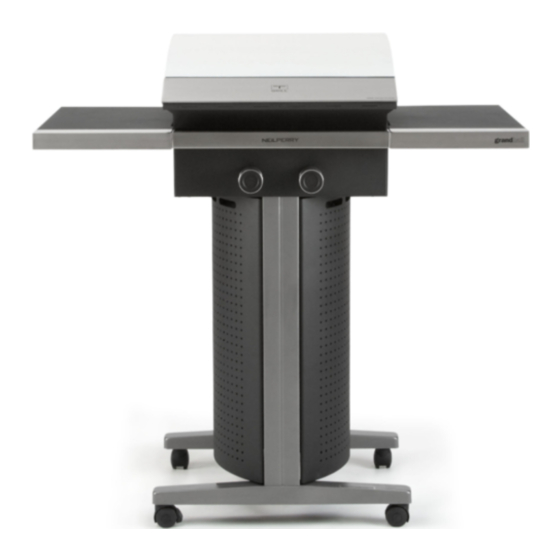

Liquid Propane Gas (LPG) Grill
Model TG08BLP090
Natural Gas (NG ) Grill
Model TG08BNG090
FREE HELP
FROM THE GRILL EXPERTS
At Grand Hall we're the experts on this
product and trained to help you with:
Ÿ
Assembly questions
Ÿ
Grill operation
Ÿ
Replacement of damaged or missing parts
visit www.grandhall.com or call:
1-877-934-7455
Monday - Friday 8:00am-4:30pm CST
IMPORTANT:
Ÿ
NOTE TO ASSEMBLER / INSTALLER:
Leave this manual with the consumer.
Ÿ
NOTE TO CONSUMER:
Keep this manual for future reference.
Ÿ
RECORD YOUR SERIAL # __________________
(see silver CSA label on main body of grill)
Operator's Manual
WARNING
!
Ÿ
Failure to comply with these instructions could
result in a fire or explosion that could cause
serious bodily injury, death or property damage.
Ÿ
Whether this grill was assembled by you or
someone else, you must read this entire manual
before using your grill to ensure the grill is
properly assembled, installed and maintained.
Ÿ
Use your grill at least 3 feet away from any
wall or surface. Use your grill at least 3 feet
away from combustible objects that can melt or
catch fire such as vinyl or wood siding, fences and
overhangs or sources of ignition including pilot
lights on water heaters and live electrical appli-
ances.
Ÿ
THIS GAS APPLIANCE IS DESIGNED FOR OUT-
DOOR USE ONLY.
Ÿ
Never use your gas grill in a garage, porch,
shed, breezeway or any other enclosed area.
Ÿ
Never obstruct the flow of ventilation air
around your gas grill housing.
Ÿ
Never disconnect the gas regulator or any gas
fitting while your grill is lit. A lit grill can ignite
leaking gas and cause a fire or explosion which
could result in property damage, personal injury
or death.
Manual # P80151098B - Date:2009/07/08
!
Advertisement
Table of Contents
Related Manuals for Grandhall TG08BLP090
Summary of Contents for Grandhall TG08BLP090
-
Page 1: Primary Safety Warnings
Ÿ visit www.grandhall.com or call: Use your grill at least 3 feet away from any wall or surface. Use your grill at least 3 feet away from combustible objects that can melt or... -
Page 2: Table Of Contents
WARNING Table of Contents Primary Safety Warnings ......1-3 Pre-Assembly Instructions ......3 Do not store or use gasoline or other Part Diagrams and Lists ......4-7 flammable liquids or vapors in the Assembly Instructions.........8-9 vicinity of this or any other appliances. An LP cylinder not connected for use Use &... -
Page 3: Pre-Assembly Instructions
Pre-Assembly Instructions For Your Safety PRE-ASSEMBLY Congratulations on your selection of one of the finest out- door kitchen appliances available. Your Grill is equipped Read and perform the following pre-assembly instruc- with the unique Crossray Infrared Cooking System® by Grand tions: Hall, which offers restaurant style grilling performance. -
Page 4: Part Diagrams And Lists
PART # PART DESCRIPTION QTY PURPOSE OF PART P06029001A Hardware Pack For use in assembly of Model TG08BLP090 & TG08BNG090 S182G03062 Pan Head Screw 3/16" x 3/8" Attaches Side Shelves to Bowl Panel S182G03061 Pan Head Screw 3/16" x 3/8"... - Page 5 Parts Diagram for Models TG08BLP090 & TG08BNG090 36 35...
- Page 6 Parts List for Models TG08BLP090 & TG08BNG090 DESCRIPTION PART # P0015303IX Lid Assembly Outer P0011440IK Lid Assembly Inner P06916001B Lid Handle Heat Shield P06917001S Lid Handle Heat Insulating Spacer P00213023B Lid Handle P06802005G Lid Handle Grip (LPG) P06802009G Lid Handle Grip (NG)
- Page 7 Parts List for Model TG08BLP090 & TG08BNG090 DESCRIPTION PART # P03303112D Gas Tank Protective Pad (LPG) P05351003A Door Magnet P03343012D Electric Ignitor Bracket P02502302C Electric Ignitor, 2-Port P05357002B LED Light Controller P06539002A Orifice (LPG) P06539003A Orifice (NG) P05314002V Tank Fastening Strap (LPG)
-
Page 8: Assembly Instructions
Assembly Instructions CAUTION : To assemble this grill, you should obtain assistance from another person when handling the larger, heavier pieces. Install Side Shelves Raise lid and remove all packing materials. Insert the Left Side Shelf Brackets into the holes on the Left Bowl Panel. Align the 3 holes on the Left Side Shelf with the 3 holes on the Left Bowl Panel, insert 3 Pan Head Screws 3/16"x3/8"... - Page 9 Install Igniter and LED Light Controller Spark Electrode Tip Batteries Spark Gap 1/8" Remove Caps from the Electric Ignitor Bracket. Place 1 AA and 4 AAA batteries into the slots of the Electric Ignitor and LED Light Controller as shown below. (Note: The positive pole of the AA battery must face towards the cap.
-
Page 10: Gas Safety And Leak Tests
LP Gas Tank Installation Never allow children to operate your grill. Do not allow CORRECT LP GAS TANK USE children or pets to play near your grill. Always supervise LP Gas models are designed for use with a standard 20 children and pets if they are in the vicinity of the unit. -
Page 11: Use & Care Instructions
USE AND CARE INSTRUCTIONS NOTE about LP Gas Tank Exchange Programs LP Gas Model only: Many retailers that sell grills offer you the option of replac- Secure a 20lb LP Gas Tanks to Gas Grill ing your empty LP Gas tank through an exchange service. Use only those reputable exchange companies that in- Turn your LP Gas Tank Valve clockwise to the spect, precision fill, test, and certify their tanks. - Page 12 USE AND CARE INSTRUCTIONS Check all connections for LP Gas Leaks LP Gas Model only: Connect Regulator with Hose to your LP Gas Tank Never test for leaks with an open flame. Prior to first use, at the beginning of each season, or every time Turn all Burner Valves to the OFF position.
-
Page 13: Natural Gas Connection
Natural Gas Connection Natural Gas Model only: Connecting Natural Gas To Your Grill Fig.1 Connect the Swivel nut of the 12' Natural Gas Hose to the horizontal fitting of NG Regulator as shown in Fig.1. Connect the other hose end (male Hose, 12 ft./ NG plug) to the gas supply line from your home. -
Page 14: Lighting Instructions
USE AND CARE INSTRUCTIONS Grill Lighting Instructions Before each use, check all hoses for cracks, nicks, cuts, 7. If ignition does not occur in 5 seconds, turn gas off at burns, or abrasions. If a hose is damaged in any way, source and turn Control Knobs OFF. -
Page 15: Troubleshooting
USE AND CARE INSTRUCTIONS Troubleshooting To purge air from your gas line and/or reset the regulator excess gas flow device: If the grill fails to light : Turn Control Knobs to the OFF position. Turn gas off at source and turn Control Knobs to OFF. Wait at least 5 minutes for gas to clear, then retry. -
Page 16: Cleaning And Maintenance
CLEANING AND MAINTENANCE Cleaning Exterior Stainless Steel Surfaces: Routine care and maintenance is required to preserve Proper care and maintenance will keep your grill in top the appearance and corrosion resistance of stainless operating condition and prolong its life. Follow these clean- steel. - Page 17 Infrared Grill Cooking Instructions Burn-Off Indirect Cooking Before cooking on your gas grill for the first time, you To cook indirectly, the food should be placed on the left should "burn off" the grill to eliminate any odor or foreign or right side of your grill (or Secondary Rack) with the matter.
- Page 18 Guide to Infrared Grilling using the Direct Cooking Method Cut of Meat Approx. Total Cooking Times Grilling Steak and Ribs Fill Grease/Water Tray half-full. Turn the grill Burners on T-bone steak Rare: 4-6 minutes , close the Lid and preheat your grill 3 to 5 minutes. Sirloin steak Medium: 6-8 minutes Open Lid and place food on the mid section of a Cooking...
- Page 19 Guide to Roasting & Baking using the Indirect Cooking Method An Important Note About Infrared Heat Settings Food preparation The suggested heat settings and cooking times shown are Trim meat of excess fat. Truss meat and poultry with cooking approximate. Unlike the controlled environment inside your string to retain shape if desired.
- Page 20 Guide to Stir-Frying and Deep-Frying STIR-FRYING TECHNIQUES DEEP-FRYING TECHNIQUES This method of cooking is popular around the world and can A wide variety of foods can be deep-fried outdoors on your be easily accomplished outdoors on your gas grill. It's a quick grill, from potatoes, to seafood and chicken.
- Page 21 Question: Question: Sometimes I hear a humming sound coming from my Can I convert my grill from one fuel type to another in regulator. What causes this? And - My grill has a low other words from LPG to NG or vice versa? flame and sometimes will not light.
- Page 22 Question: After every use (after your grill has cooled down), wipe The Regulator and Hose supplied with my gas grill stainless surfaces with a soft, soapy cloth or sponge does not fit the older LP Gas tank I’ve used for years. then rinse with water.
- Page 23 Stainless Steel Parts......................2 Years Grand Hall will require reasonable proof of your date of purchase. Therefore, you should send in the owner registration card or register online at www.grandhall.com. Save your receipt in case it is required as proof of purchase.
