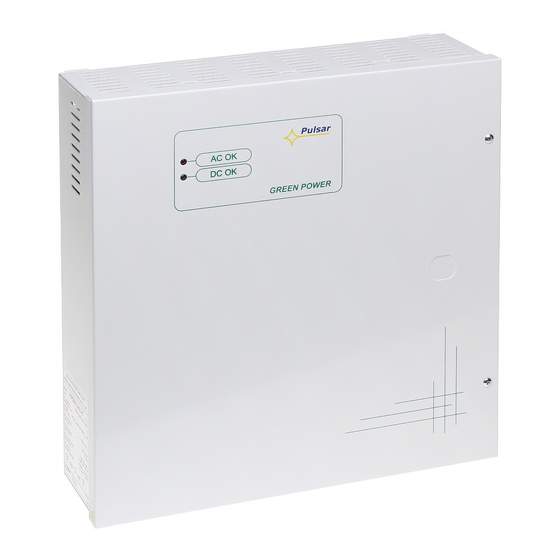

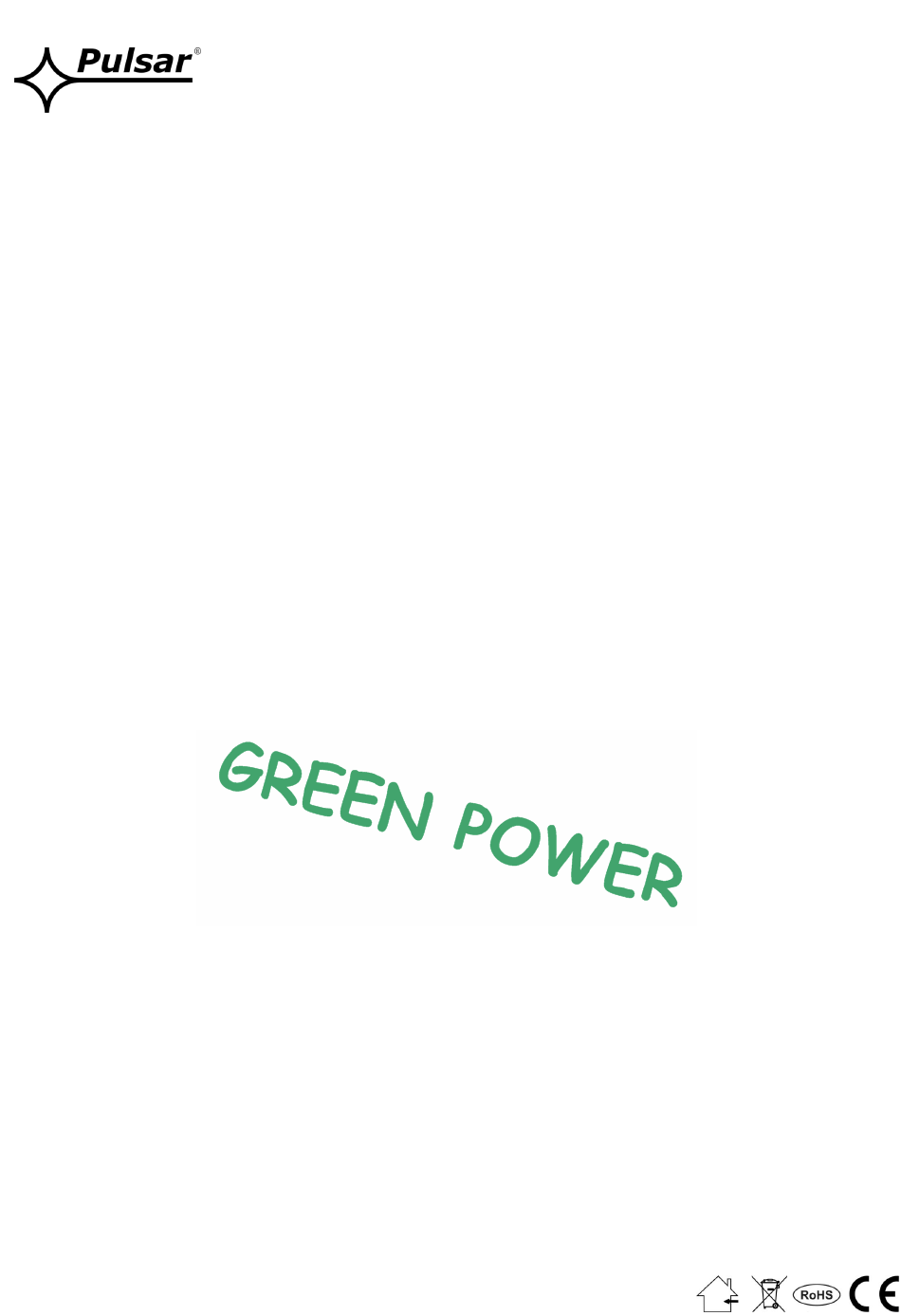

- Page 1 HPSB 11A12C v.1.0 HPSB 13,8V/10A/17Ah Buffer, switch mode power supply unit. Edition: 4 from 12.11.2013 Supercedes the edition: 3 from 16.09.2013...
- Page 2 HPSB11A12C Features: DC 13,8V/10A uninterruptible power supply LED indication fitting battery: 17Ah/12V protections: wide range of mains supply: 176÷264V SCP short-circuit protection high efficiency 83% OVP overvoltage protection battery charging and maintenance control ...
- Page 3 HPSB11A12C BATTERY 7Ah: 1. Buffer power supply unit HPSB 13,8V/16x0,5A/7Ah. - HPSB11A12C + 2 x LB8 8x0,5A (2 x AWZ578 or AWZ580) + 7Ah 2. Buffer power supply unit HPSB 13,8V/2x12V/8x1A/7Ah. - HPSB11A12C + 2 x RN500(13,8V/12V+ 2x LB4 4x1A (AWZ575 or AWZ576) + 7 Ah 3.
- Page 4 HPSB11A12C Fig.2. The view of the PSU.
- Page 5 HPSB11A12C 1.4 Specifications: - electrical parameters (tab.3) - mechanical parameters (tab.4) - operation safety (tab.5) - operating parameters (tab.6) Electrical parameters (tab. 3) PSU type A (EPS - External Power Source) Mains supply 176÷264V AC Current up to 1.4A@230VAC Power frequency 50÷60Hz...
- Page 6 HPSB11A12C Operating parameters (tab.6) Operating temperature -10ºC...+40ºC (see: chart 1) Storage temperature -20ºC...+60ºC Relative humidity 20%...90%, without condensation Vibrations during operation unacceptable Impulse waves during operation unacceptable Direct insulation unacceptable Vibrations and impulse waves during transport According to PN-83/T-42106 Chart 1.
- Page 7 HPSB11A12C The shock protection circuit shall be performed with a particular care, i.e. the yellow and green wire coat of the power cable shall stick to one side of the terminal - marked with ‘ ‘ symbol on the PSU enclosure. Operation of the PSU without the properly made and fully operational shock protection circuit is UNACCEPTABLE! It can cause a device failure or an electric shock.
- Page 8 GENERAL WARRANTY CONDITIONS 1. Pulsar K. Bogusz Sp.j. (the manufacturer) grants a two-years warranty for the equipment, counted from the device’s production date. 2. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (the selection is at the manufacturer’s discretion) if the malfunction is due to the manufacturer, includes manufacturing or material defects,...
