- Page 1 HPSB 11A12D v.1.0 HPSB 13,8V/10A/40Ah Buffer, switch mode power supply unit. Edition: 8 from 24.10.2016 Supersedes edition: 7 from 11.08.2014...
- Page 2 40Ah/12V battery. A micro switch indicates door opening (front cover). OPTIONAL POWER SUPPLY CONFIGURATIONS: (visualisation available at: www.pulsar.pl) 1. Buffer power supply unit 13,8V/20x0,5A/40Ah. - HPSB11A12D + 2xLB8 16x0,5A (AWZ578 or AWZ580) + LB4 4x0,5A (AWZ574 or AWZ576) + 40Ah 2.
- Page 3 GREEN POWER www.pulsar.pl HPSB11A12D 7. Buffer power supply unit 13,8V/2x12V/8x1A/40Ah. - HPSB11A12D + 2xRN500(13,8V/12V) + 2xLB4 8x1A (AWZ575 or AWZ576) + 40Ah 8. Buffer power supply unit 13,8V/5x5V÷7,4V/5x2A/40Ah. - HPSB11A12D + 5xDCDC20 (5V÷7,4V/5x2A) + 40Ah 9. Buffer power supply unit 13,8V/5x5V÷7,4V/10x1A/40Ah.

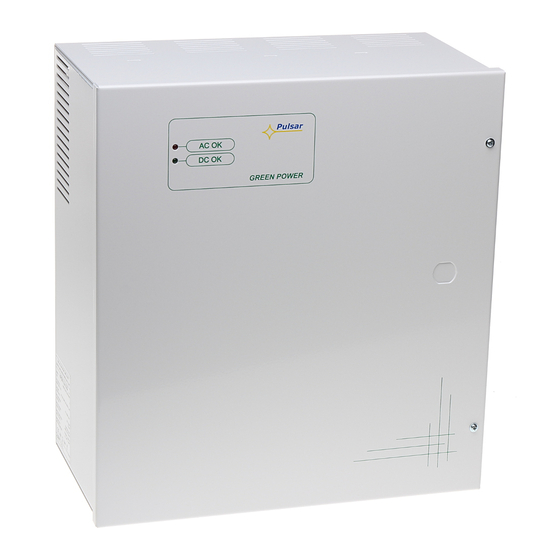

- Page 4 GREEN POWER www.pulsar.pl HPSB11A12D Fig.2. The view of the PSU.
- Page 5 GREEN POWER www.pulsar.pl HPSB11A12D 1.4 Specifications: - electrical parameters (tab.3) - mechanical parameters (tab.4) - operation safety (tab.5) - operating parameters (tab.6) Electrical parameters (tab. 3). PSU type A (EPS - External Power Source) 176÷264V AC Mains supply Current up to 1.4A@230VAC...
- Page 6 GREEN POWER www.pulsar.pl HPSB11A12D Operation safety (tab.5). Protection class PN-EN 60950-1:2007 I (first) Protection grade PN-EN 60529: 2002 (U) IP20 Electrical strength of insulation: - between input input and output circuits of the PSU (I/P-O/P) 3000 V/AC min. - between input circuit and PE protection circuit (I/P-FG) 1500 V/AC min.
- Page 7 GREEN POWER www.pulsar.pl HPSB11A12D 2.2 Installation procedure. 1. Before installation, cut off the voltage in the 230V power-supply circuit. 2. Mount the PSU in a selected location and connect the wires. 3. Connect the power cables (~230Vac) to L-N clips of the PSU. Connect the ground wire to the clip marked by the earth symbol PE.
- Page 8 CAUTION! The power supply unit is adapted for cooperation with the sealed lead-acid batteries (SLA). After the operation period they must not be thrown but recycled according to the applicable law. Pulsar Siedlec 150, 32-744 Łapczyca, Poland Tel. (+48) 14-610-19-40, Fax. (+48) 14-610-19-50 E-mail: biuro@pulsar.pl, sales@pulsar.pl http:// www.pulsar.pl, www.zasilacze.pl...
