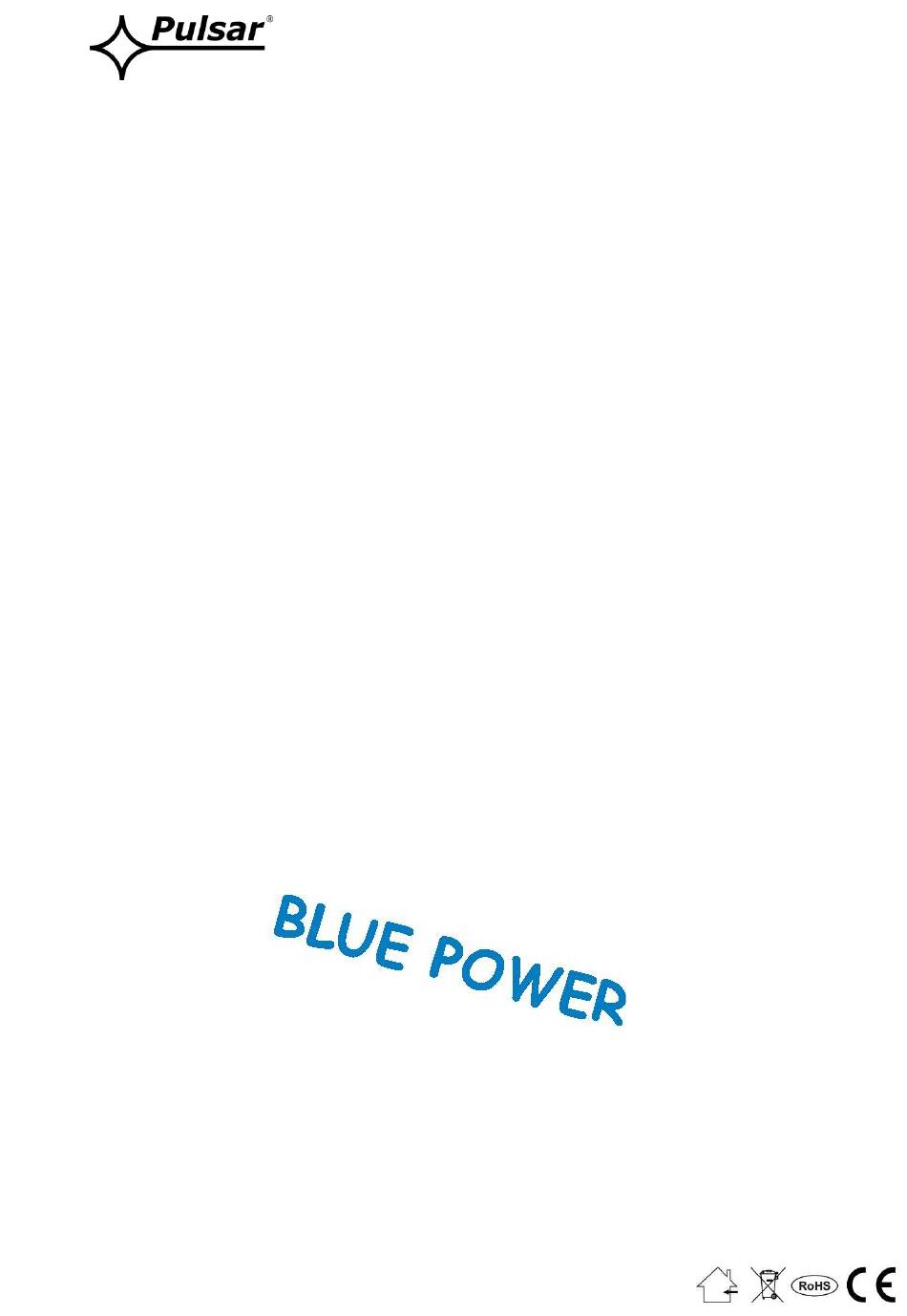

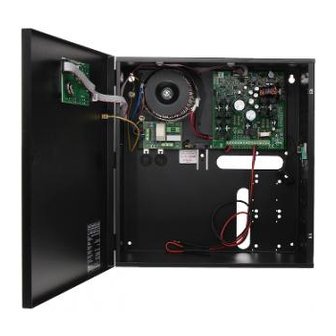

- Page 1 PSBS 10A12D v.1.1 PSBS 13,8V/10A/40Ah/OC Buffer switch mode power supply unit with technical outputs. EN** Edition: 5 from 14.04.2015 Supercedes edition: 4 from 19.03.2014...
-
Page 2: Table Of Contents
BLUE POWER www.pulsar.pl PSBS10A12D PSU features: uninterruptible power supply DC 13,8V/10A PSU technical output indicating PSU failure – OC type alternative outputs AUX1, AUX2, AUX3, 3x2,5A current limit LoB technical output indicating low battery voltage ... -
Page 3: Block Diagram
BLUE POWER www.pulsar.pl PSBS10A12D OPTIONAL POWER SUPPLY CONFIGURATIONS: (visualization available at www.pulsar.pl) 1. Buffer power supply PSBS 13,8V/relay module MPSBS/40Ah - PSBS 10A12D + MPSBS + 40Ah 2. Buffer power supply PSBS 13,8V/10x1A/40Ah - PSBS 10A12D + LB8 8x1A (AWZ579 or AWZ580) + LB2 2x1A (AWZ585 or AWZ586) + 40Ah 3. - Page 4 BLUE POWER www.pulsar.pl PSBS10A12D 1.3 Description of components and power supply terminals (Table 1, Fig.2). Table 1. Components of the Power supply PCB (Printed Circuit Board) (see Fig. 2). Element nr Description Jumper – configuration of discharged battery disconnection system (UVP) ...
- Page 5 BLUE POWER www.pulsar.pl PSBS10A12D Table 2. Components of the PSU (See Fig. 3). Component no. Description Isolation transformer Printed Circuit Board (see Table 1, Fig. 2) TAMPER; micro switch of tamper protection (NC) fuse in the power supply circuit 230V, T6,3A / 250V...
-
Page 6: Technical Parameters
BLUE POWER www.pulsar.pl PSBS10A12D 1.4 Technical parameters: - Electrical parameters (Table 3) - Mechanical parameters (Table 4) - Safety of use (Table 5) - Operation parameters (Table 6) Table 3. Electrical parameters PSU type: A (EPS - External Power Source) -
Page 7: Installation
BLUE POWER www.pulsar.pl PSBS10A12D Table 4. Mechanical parameters Enclosure dimensions 330 x 350 x 170+8 (WxHxD) [mm] (+/- 2) Mounting See Fig., 3 Battery housing 40Ah/12V (SLA) max. 190x170x165mm (WxHxD) max Net/gross weight 8,1kg / 9,25kg Enclosure Steel plate, DC01 1,2mm color RAL 9003... -
Page 8: Installation Procedure
BLUE POWER www.pulsar.pl PSBS10A12D 2.2 Installation procedure. 1. Before installation, make sure that the voltage in the 230V power-supply circuit is cut off. 2. Mount the PSU in a selected location. The tamper bracket, located in the central part of the housing (see Fig. -
Page 9: Power Supply Operation Indication
BLUE POWER www.pulsar.pl PSBS10A12D 3. Power supply operation indication. 3.1 Optical indication. The PSU is fitted with 3 LED lights at the front panel: AC OK: on – The PSU supplied with 230V AC voltage off – no 230V AC mains supply DC OK: ... -
Page 10: Relay Technical Outputs
BLUE POWER www.pulsar.pl PSBS10A12D 3.3 Relay technical outputs. If the OC type outputs are not sufficient to control the unit, it is possible to use the MPSBS relay module changing technical outputs of the OC type to relay type. Fig. 6. The diagram of connecting the MPSBS module. - Page 11 GENERAL WARRANTY CONDITIONS 1. Pulsar (the manufacturer) grants a five-years warranty for the equipment, counted from the device’s production date. 2. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (the selection is at the manufacturer’s discretion) if the malfunction is due to the manufacturer, includes manufacturing or material defects, unless such defects have been reported within the warranty period (item 1).
- Page 12 BLUE POWER www.pulsar.pl PSBS10A12D Pulsar Siedlec 150, 32-744 Łapczyca, Poland Phone (+48) 14-610-19-40, Fax (+48) 14-610-19-50 E-mail: biuro@pulsar.pl, sales@pulsar.pl http:// www.pulsar.pl, www.zasilacze.pl...
