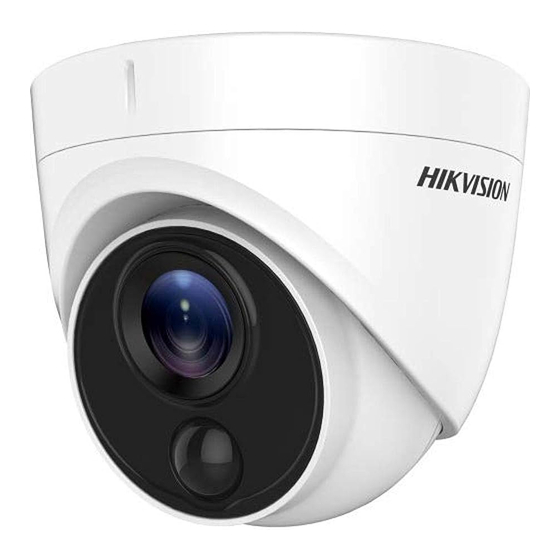

TURBO HD
D0T PIR Series Turret
Camera
User Manual
User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual applies to the models below:
Model
DS-2CE71D0T-PIRL
DS-2CE71D0T-PIRLP
This manual may contain technical incorrect places or
printing errors, and the content is subject to change
without notice. The updates will be added to the new
version of this manual. We will readily improve or update
the products or procedures described in the manual.
01000020200821
Advertisement
Table of Contents
Related Manuals for HIKVISION PIR Series
Summary of Contents for HIKVISION PIR Series
- Page 1 TURBO HD D0T PIR Series Turret Camera User Manual User Manual Thank you for purchasing our product. If there are any questions, or requests, do not hesitate to contact the dealer. This manual applies to the models below: Model DS-2CE71D0T-PIRL...
- Page 2 Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
- Page 3 Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions”. Warnings: Serious injury or death may occur if any of the warnings are neglected.
- Page 4 While in delivery, the camera shall be packed in its original packing, or packing of the same texture. Mark Description Table 0-1 Mark Description Mark Description DC Voltage...
-
Page 5: Installation
1 Introduction 1.1 Product Features The main features are as follows: High performance CMOS sensor IR cut filter with auto switch OSD menu with configurable parameters Auto white balance Internal synchronization SMART IR mode Visible alarm ... - Page 6 Mark Coin Notch 2. Paste the drill template (supplied) to the place where you want to install the camera. 3. Drill the screw holes, and the cable hole (optional) in the ceiling/wall according to the drill template. Figure 2-1 Drill Template Note: Drill the cable hole, when adopting the ceiling outlet to route the cable...
- Page 7 Pan Position [0° to 360°] Rotation Position [0°to 360°] Tilt Position [0°to 75°] Figure 2-4 3-axis Adjustment 1). Hold the camera body and rotate the enclosure to adjust the pan position [0° to 360°]. 2). Move the camera body up and down to adjust the tilt position [0°...
- Page 8 Figure 2-7 Install the Inclined Ceiling Mount’s Body 6. Combine the inclined ceiling mount’s cover with its body with supplied screws. 7. Repeat steps 5 to 8 of the 2.1 Ceiling/Wall Mounting without Junction Box to complete the installation. Figure 2-8 Install the Camera to the Inclined Ceiling Mount 2.3 Ceiling/Wall Mounting with Junction Box Before you start:...
-
Page 9: Wall Mounting
Figure 2-10 Install Turret Camera’s Mounting Base 5. Secure the junction box’s body with supplied screws on the ceiling/wall. Figure 2-11 Install the Junction Box’ Camera Body on Ceiling/Wall 6. Combine the junction box’s cover with the junction box’s body. 7. -
Page 10: Menu Description
Figure 2-13 Install the Bracket 4. Install the mounting base of the turret camera to the wall mount, and secure them with supplied screws. Figure 2-14 Install the Mounting Base to the Bracket 5. Route the cables through the mount. 6. -
Page 11: Video Format
VIDEO FORMAT EXPOSURE MODE EXPOSURE BACK EXIT SAVE & EXIT MODE IR LIGHT Smart IR DAY/NIGHT D->N THRESHOLD N->D THRESHOLD BACK EXIT SAVE & EXIT IMAGE MODE WHITE BALANCE BRIGHTNESS CONTRAST VIDEO SHARPNESS SETTINGS SATURATION MIRROR BACK MAIN MENU EXIT SAVE &... - Page 12 over-exposure of the background where the light is strong. HLC (Highlight Compensation) HLC stands for highlight compensation. The camera detects the strong spots (the over-exposure portion of image), then reduce the brightness of the strong spots to improve the overall images. ...
-
Page 13: Video Settings
Night to Day Threshold is used to control the sensitivity of switching the night mode to the day mode. You can set the value from 1 to 9. The larger the value is, the more sensitive the camera is. 3.4 VIDEO SETTINGS Move the cursor to VIDEO SETTINGS and click Iris+ to enter the submenu. -
Page 14: Alarm Mode
SHARPNESS Sharpness determines the amount of detail an imaging system can reproduce. You can set the SHARPNESS value from 1 to 9. SATURATION Adjust this feature to change the saturation of the color. The value ranges from 1 to 9. DNR (Digital Noise Reduction) The DNR function can decrease the noise effect, especially when capturing moving images in poor light... -
Page 15: Factory Default
PIR DET MODE OUTDOOR and INDOOR are selectable for PIR DET MODE switch. 3.6 FACTORY DEFAULT Reset all the settings to the factory default. 3.7 EXIT Move the cursor to EXIT and click Iris+ to exit the menu. 3.8 SAVE & EXIT Move the cursor to SAVE &...
