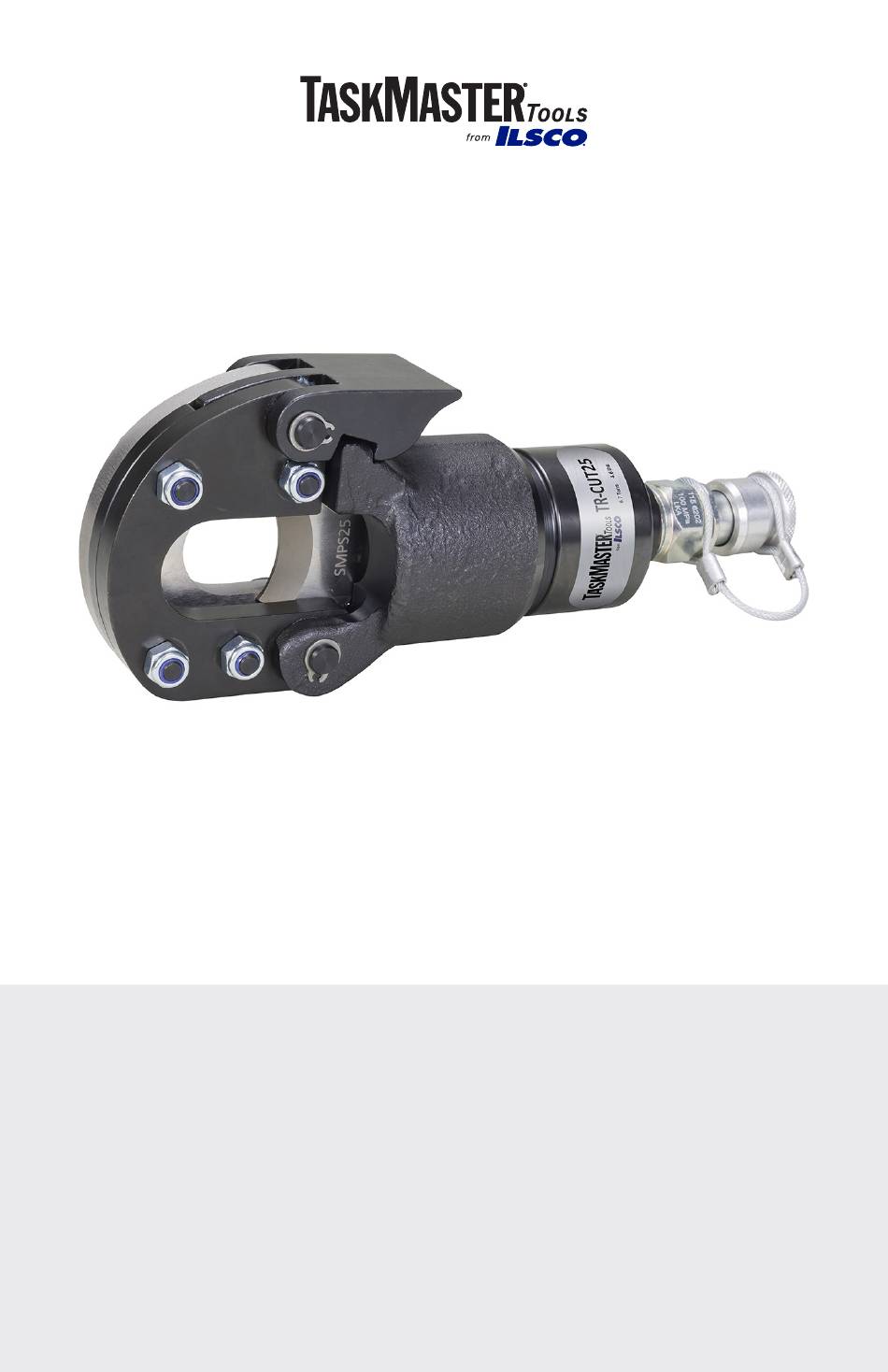

- Page 1 Model: TR-CUT25 Instruction manual Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. Phone: TASKMASTER TOOLS 800-776-9775 4730 Madison Road 513-533-6200 Cincinnati OH 45227 www.Ilsco.com...
-
Page 2: Table Of Contents
TR-CUT25 Table of Contents Warranty and Servicing..............................3 Safety Symbols..................................3 Safety......................................4 Technical Specifications..............................5 Identification..................................6 Operating Instructions...............................7 Tool Maintenance.................................8 Head Assembly Breakdown and Parts List........................9 Tool Parts Breakdown...............................10 Parts List ....................................11 Coupler Assembly Breakdown and Parts List......................12 Thank you... for buying a TASKMASTER TOOL. Our mission is to bring product innovation and exceptional customer service to the marketplace. -
Page 3: Warranty And Servicing
Your first reconditioning is on us! To Find a TASKMASTER PRO Service Partner Call ILSCO for assistance in solving tool performance issues or for any of your service needs. ILSCO tool owners will be offered options to solve any tool replacement, parts or repair issues. -
Page 4: Safety
TR-CUT25 SAFETY Read all safety warnings, instructions provided with this tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. WORK AREA SAFETY • Keep work area clean and well lit. Cluttered or dark areas invite accidents. •... -
Page 5: Technical Specifications
TR-CUT25 TECHNICAL SPECIFICATIONS Force developed: 6.7 tons Jaw opening: .98 in. Dimensions: 8.6 in. x 3 in. x 2.5 in. (L x W x H) Weight: 4.6 lbs Cut Capacity CU Conductor: .95 in. AL Conductor: .95 in. ACSR: 556kcmil Guy wire: 5/8 in. -
Page 6: Identification
TR-CUT25 IDENTIFICATION Œ Movable Blade Latch Ž Male Coupler NOTE: Includes durable carrying pouch with clip. -
Page 7: Operating Instructions
TR-CUT25 OPERATING INSTRUCTIONS Be sure to read instructions carefully, wear safety goggles, and keep fingers away from cutting head. NOTE: Connect head to 10,000 PSI hydraulic pump. CUTTING Retract the blade fully. Unlatch the tool head by pulling up on release lever. Close head and latch around material. -
Page 8: Tool Maintenance
TR-CUT25 TOOL MAINTENANCE Daily maintenance: • After each cutting cycle wipe the cutting head jaws free of metal shavings. • Wipe down all steel parts with WD-40. • Store the head in a non-humid environment. The head should provide many years of service when given the proper maintenance and care. Should you experience any difficulty with the operation and maintenance of this head, contact our customer service department (see back cover). -
Page 9: Head Assembly Breakdown And Parts List
TR-CUT25 HEAD ASSEMBLY BREAKDOWN Part Number Part Description 206028 HEXAGONAL NUT 700518 THREADED BOLT 700590 FRAME 700591 BLADE GUIDE 700761 COMPRESSION SPRING 1 700226 FIXED BLADE 701425 LOCKING RING 712010 BOLT 702021 LOCKING LEVER 10 712167 HEAD FORK... -
Page 10: Tool Parts Breakdown
TR-CUT25... -
Page 11: Parts List
TR-CUT25... -
Page 12: Coupler Assembly Breakdown And Parts List
TR-CUT25 COUPLER ASSEMBLY BREAKDOWN AND PARTS LIST Part # Part Description 712802 O-RING SEAL 712803 SUPPORT RING 712801 ADAPTOR 203703 GRUB SCREW 712800 CUP NUT 711211 SCREW SEAL 706979 OIL SCREEN 102986 NIPPLE CPL... - Page 13 TR-CUT25 Notes:...
- Page 14 Date: 04/18 Version 2 TASKMASTER TOOLS Service: 4730 Madison Rd. Cincinnati, OH 45227 Phone: 800-776-9775 513-533-6200 www.Ilsco.com...
