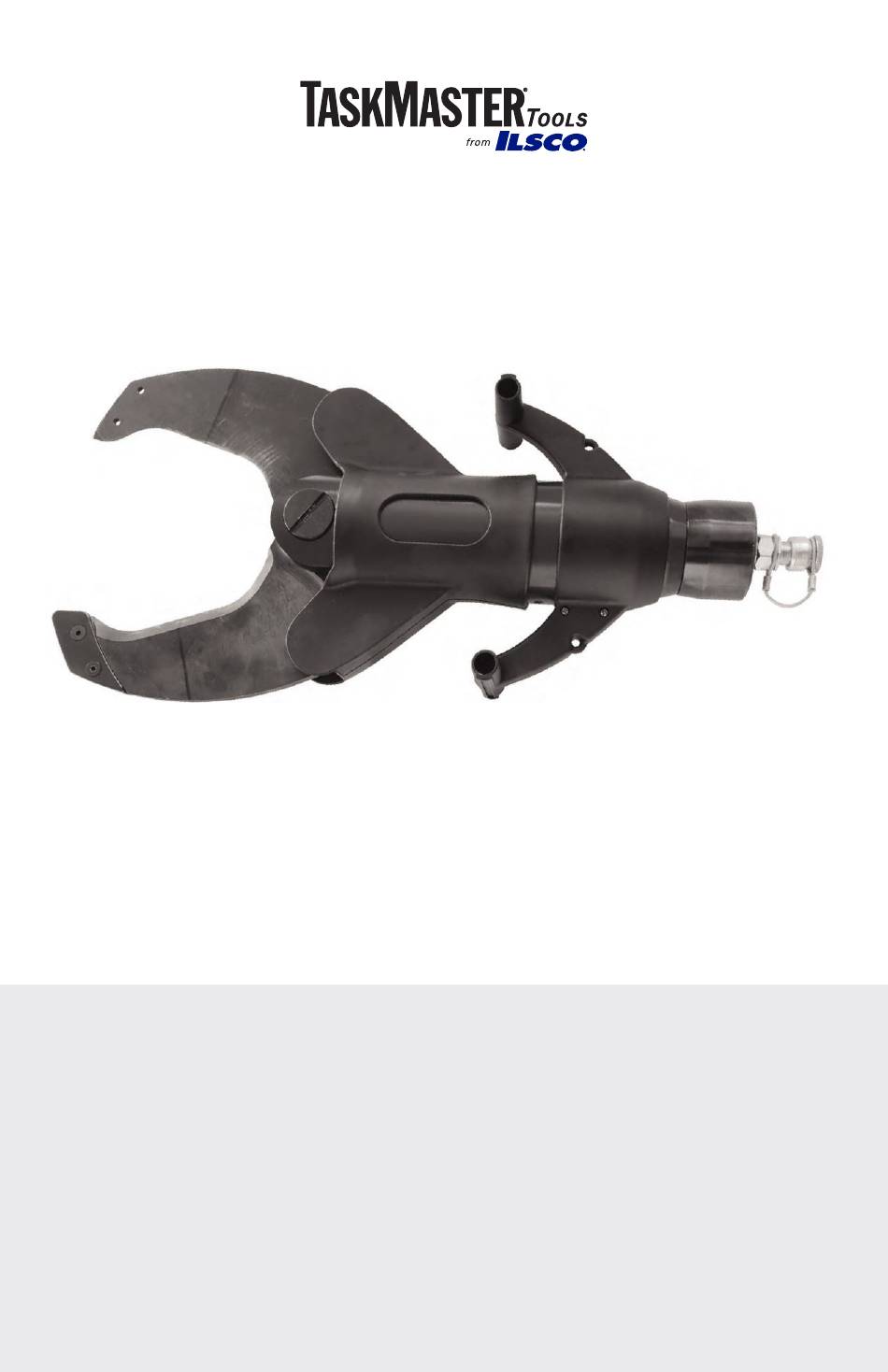

- Page 1 Model: TR-CUT120CU-S Instruction manual Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. Phone: TASKMASTER TOOLS 800-776-9775 4730 Madison Road 513-533-6200 Cincinnati OH 45227 www.ilsco.com...
-
Page 2: Table Of Contents
TR-CUT120CUS Table of Contents Warranty and Servicing..............................3 Safety Symbols..................................3 Safety......................................4 Technical Specifications..............................5 Identification..................................6 Operating Instructions...............................7 Tool Maintenance.................................8 Head Assembly Breakdown and Parts List........................9 Thank you... for buying a TASKMASTER TOOL. Our mission is to bring product innovation and exceptional customer service to the marketplace. This tool line is reliable, dependable, and durable for our customer’s needs. -
Page 3: Warranty And Servicing
Your first reconditioning is on us! To Find a TASKMASTER PRO Service Partner Call ILSCO for assistance in solving tool performance issues or for any of your service needs. ILSCO tool owners will be offered options to solve any tool replacement, parts or repair issues. -
Page 4: Safety
TR-CUT120CUS SAFETY Read all safety warnings, instructions provided with this tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. WORK AREA SAFETY • Keep work area clean and well lit. Cluttered or dark areas invite accidents. •... -
Page 5: Technical Specifications
TR-CUT120CUS TECHNICAL SPECIFICATIONS 6.7 tons Force developed: Jaw opening: 4.75 in. Dimensions: 19.8 in. x 9.3 in. x 3.4 in. (L x W x H) 16.5 lbs Weight: Cut Capacity CU conductor: 1000 kcmil AL conductor: 4.5“ 19.8 in. (503 mm) -
Page 6: Identification
TR-CUT120CUS IDENTIFICATION Œ Ž Œ Cutting Blades Carrying Handles Ž Male Coupler NOTE: Includes molded carrying case. -
Page 7: Operating Instructions
TR-CUT120CUS OPERATING INSTRUCTIONS Be sure to read instructions carefully, wear safety goggles, and keep fingers away from cutting head. NOTE: Connect head to 10,000 PSI hydraulic pump. CUTTING Retract the cutting head jaws fully by pressing the release button. Place the wire between the cutting head jaws. Make sure all cuts are made perpendicular to the cutting head. -
Page 8: Tool Maintenance
TR-CUT120CUS TOOL MAINTENANCE Daily maintenance: • After each cutting cycle wipe the cutting head jaws free of metal shavings. • Wipe down all steel parts with WD-40. • Store the tool in a non-humid environment. The head should provide many years of service when given the proper maintenance and care. Should you experience any difficulty with the operation and maintenance of this tool, contact our customer service department (see back cover). -
Page 9: Head Assembly Breakdown And Parts List
TR-CUT120CUS HEAD ASSEMBLY BREAKDOWN AND PARTS LIST Part # Part Description Part # Part Description 200623 CAP SCREW 12 712892 SCRAPER RING 713738 BRIDGE 13 713751 BODY 713741 BOLT 14 705806 FILTER DISC 701008 GRUB SCREW 15 713743 PRESSURE DISC 712882 HANDLE 16 713748 SCREW... - Page 10 TR-CUT120CUS Notes:...
- Page 11 TR-CUT120CUS Notes:...
- Page 12 Date: 02/18 Version 1 TASKMASTER TOOLS Service: 4730 Madison Rd. Cincinnati, OH 45227 Phone: 800-776-9775 513-533-6200 www.ilsco.com...
