NOTE:
REMOVE STROBE FROM PACKAGING. REMOVE (4) 8-32 SCREWS THAT HOLD THE MOUNTING BRACKET IN PLACE.
SAVE THE SCREWS TO RE-MOUNT THE STROBE TO THE MOUNTING BRACKET LATER.
SECURE THE MOUNTING BRACKET TO WALL WITH APPROPRIATE HARDWARE.
CONNECT CUSTOMER RJ45 CONNECTOR (POE)TO OUTDOOR COUPLER. MAKE SURE GASKETS ARE IN PLACE AND
TIGHTEN FOR WATER TIGHT SEAL. SLIDE STROBE HOUSING OVER MOUNTING BRACKET, ALIGN HOLES AND REPLACE (4) 8-32 SCREWS
FROM PREVIOUS STEP. TAKE CAUTION NOT TO PINCH THE CABLES OR COUPLER.
NOTE : MOUNTING BRACKET CAN BE DIRECTLY ATTACHED TO WALL SURFACE OR ATTACHED TO THE APPROPRIATE OUTLET BOX
FOR THE APPLICATION.
SCREW PAN HEAD 6-32 x 5/8
MOUNTING BRACKET
GASKET

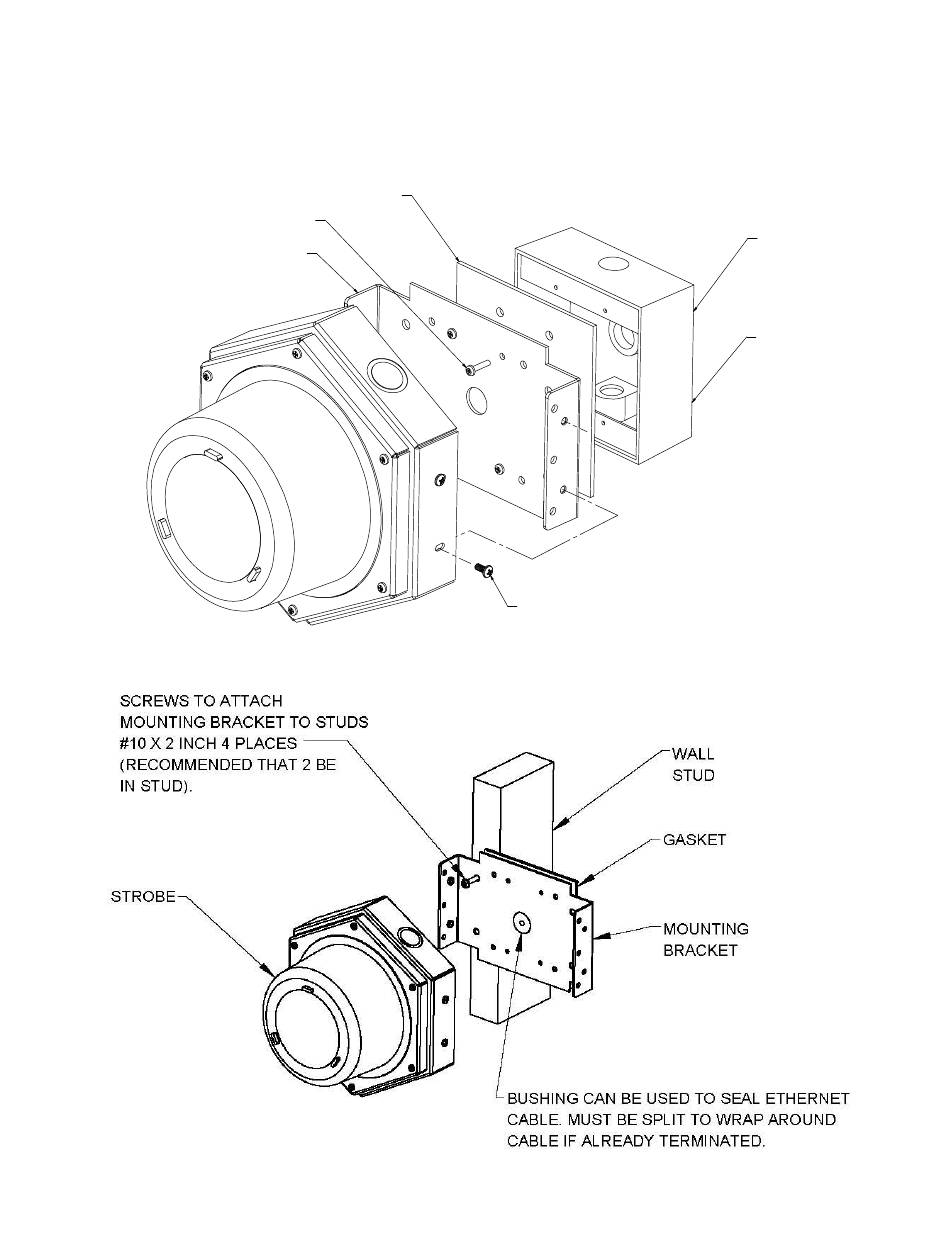

Figure 3. Connecting to Outlet Box
FIGURE 1. INSTALLATION
Figure 4. Mounting to Wall
4
SCREW PAN HEAD 8-32 x 3/8
OUTDOOR
OUTLET
BOX
BELL 5333-0
OR EQUAL
INDOOR
OUTLET
BOX
RACO 683SP
OR EQUAL
