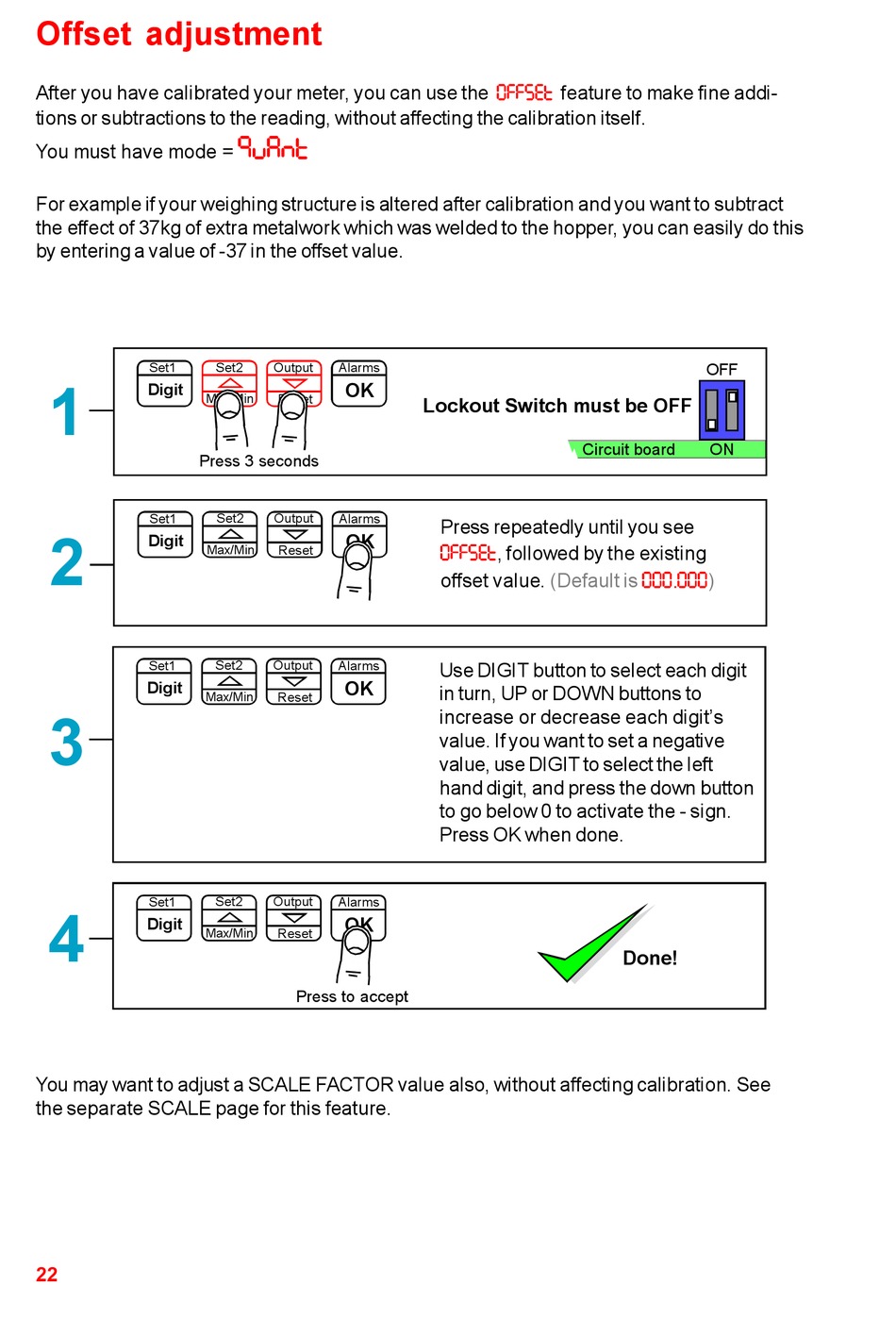

Offset adjustment

After you have calibrated your meter, you can use the
tions or subtractions to the reading, without affecting the calibration itself.
You must have mode =
For example if your weighing structure is altered after calibration and you want to subtract
the effect of 37kg of extra metalwork which was welded to the hopper, you can easily do this
by entering a value of -37 in the offset value.
Set1
Digit
1
Set1
Digit
2
Set1
Digit
3
Set1
4
Digit
You may want to adjust a SCALE FACTOR value also, without affecting calibration. See
the separate SCALE page for this feature.
22
Quant
Set2 Output Alarms
OK
Max/Min Reset
Press 3 seconds
Set2 Output Alarms
OK
Max/Min
Reset
Set2 Output Alarms
OK
Max/Min Reset
Set2 Output
Alarms
OK
Max/Min
Reset
Press to accept
OFFSET feature to make fine addi-
Lockout Switch must be OFF
Circuit board
Press repeatedly until you see
, followed by the existing
OFFSEt
offset value. (Default is
Use DIGIT button to select each digit
in turn, UP or DOWN buttons to
increase or decrease each digit's
value. If you want to set a negative
value, use DIGIT to select the left
hand digit, and press the down button
to go below 0 to activate the - sign.
Press OK when done.
OFF
ON
000.000 )
Done!
