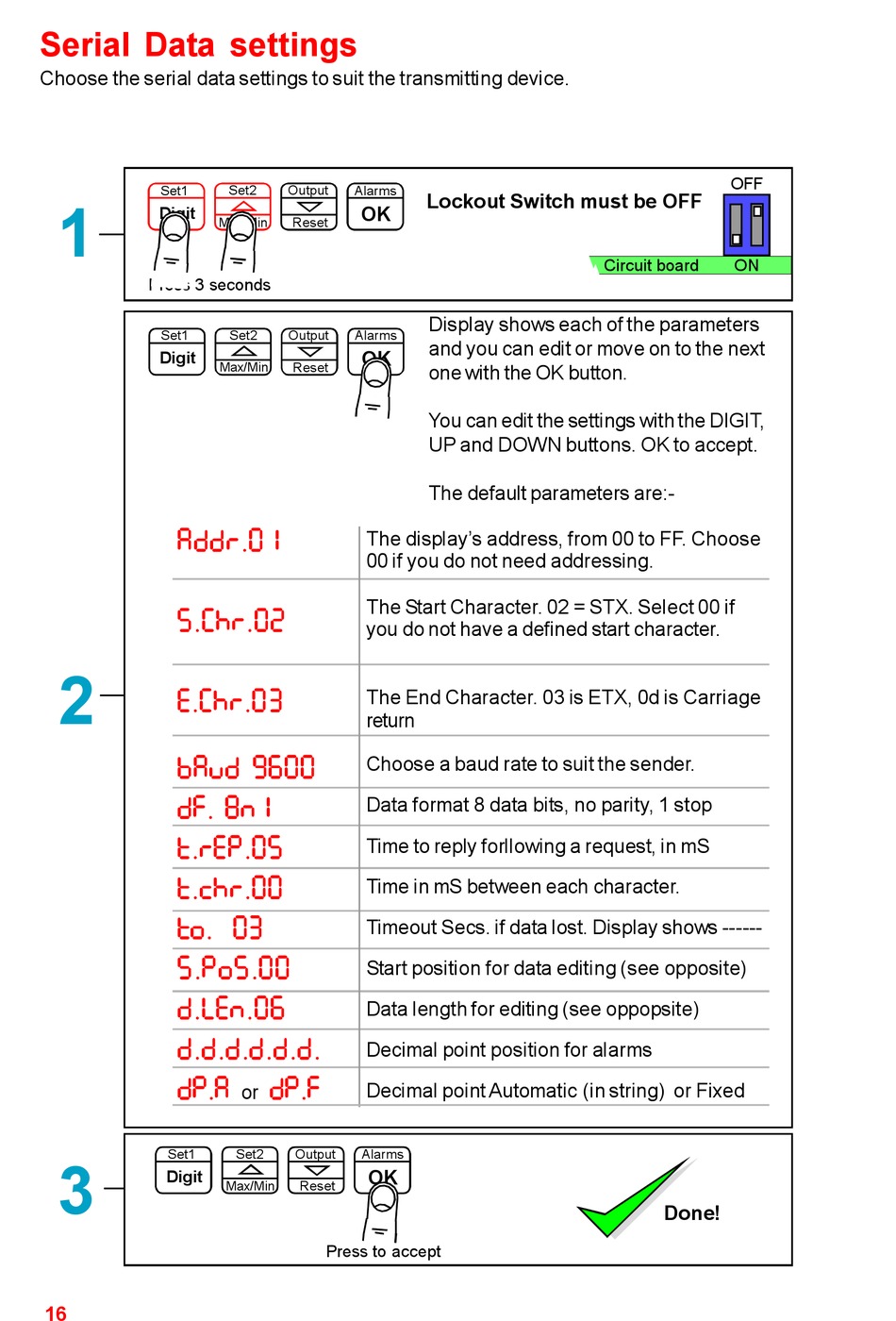

Serial Data settings

Choose the serial data settings to suit the transmitting device.
Set1
Digit
1
Press 3 seconds
Set1
Digit
Addr.01
S.Chr.02
2
E.Chr.03
baud 9600
dF. 8n1
t.reP.05
t.chr.00
to. 03
S.Pos.00
d.LEn.06
d.d.d.d.d.d.
dP.A
Set1
3
Digit
16
Set2 Output
Alarms
OK
Max/Min Reset
Set2 Output Alarms
OK
Max/Min
Reset
The display's address, from 00 to FF. Choose
00 if you do not need addressing.
The Start Character. 02 = STX. Select 00 if
you do not have a defined start character.
The End Character. 03 is ETX, 0d is Carriage
return
Choose a baud rate to suit the sender.
Data format 8 data bits, no parity, 1 stop
Time to reply forllowing a request, in mS
Time in mS between each character.
Timeout Secs. if data lost. Display shows ------
Start position for data editing (see opposite)
Data length for editing (see oppopsite)
Decimal point position for alarms
dP.F
Decimal point Automatic (in string) or Fixed
or
Set2 Output Alarms
OK
Max/Min Reset
Press to accept
Lockout Switch must be OFF
Display shows each of the parameters
and you can edit or move on to the next
one with the OK button.
You can edit the settings with the DIGIT,
UP and DOWN buttons. OK to accept.
The default parameters are:-
OFF
Circuit board ON
Done!
