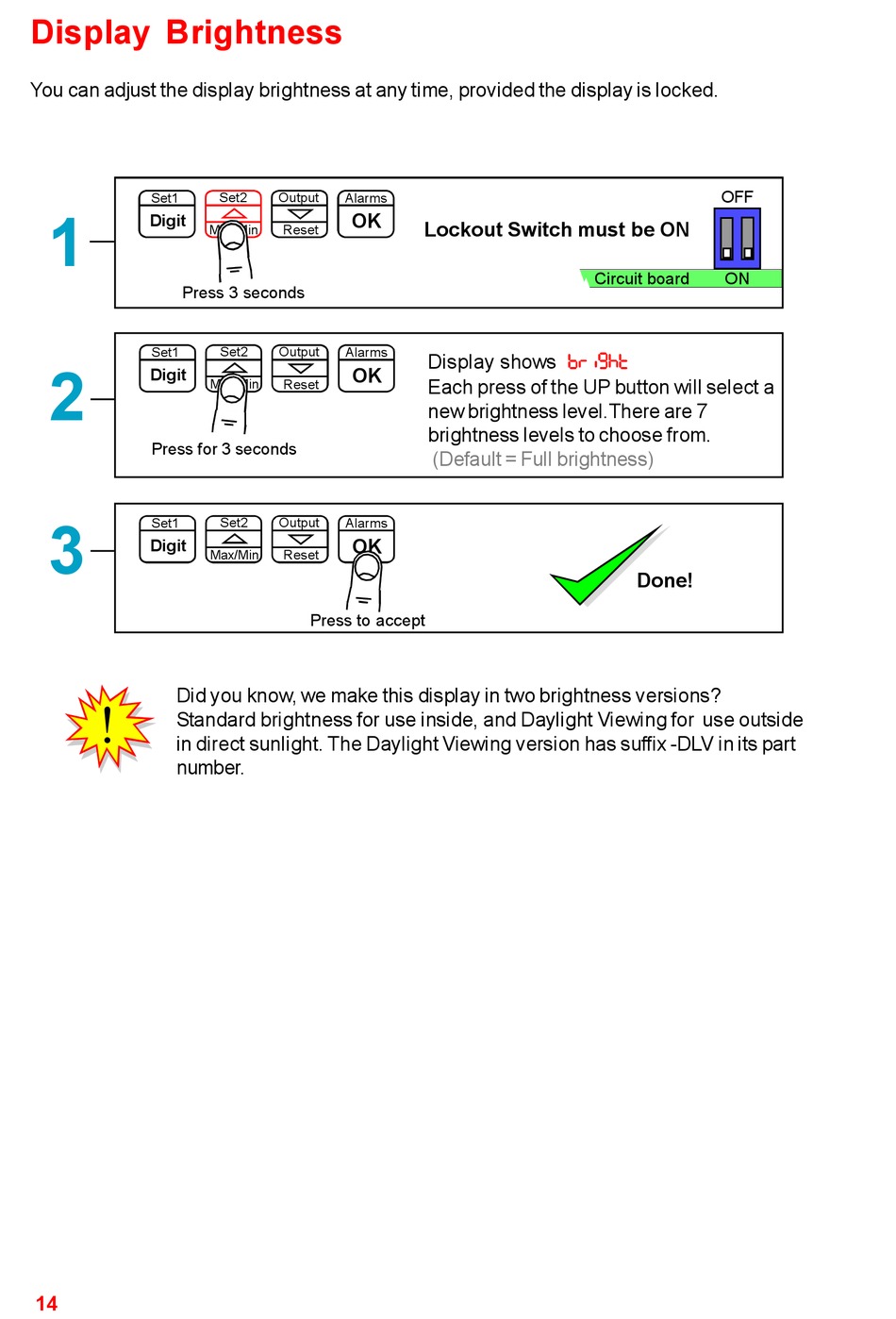

Display Brightness

You can adjust the display brightness at any time, provided the display is locked.
Set1
Digit
1
Press 3 seconds
Set1
Digit
2
Press for 3 seconds
Set1
3
Digit
Did you know, we make this display in two brightness versions?
! !
Standard brightness for use inside, and Daylight Viewing for use outside
in direct sunlight. The Daylight Viewing version has suffix -DLV in its part
number.
14
Set2 Output Alarms
OK
Max/Min Reset
Set2 Output Alarms
OK
Max/Min
Reset
Set2 Output
Alarms
OK
Max/Min Reset
Press to accept
Lockout Switch must be ON
Display shows bright
Each press of the UP button will select a
new brightness level.There are 7
brightness levels to choose from.
(Default = Full brightness)
OFF
Circuit board ON
Done!
