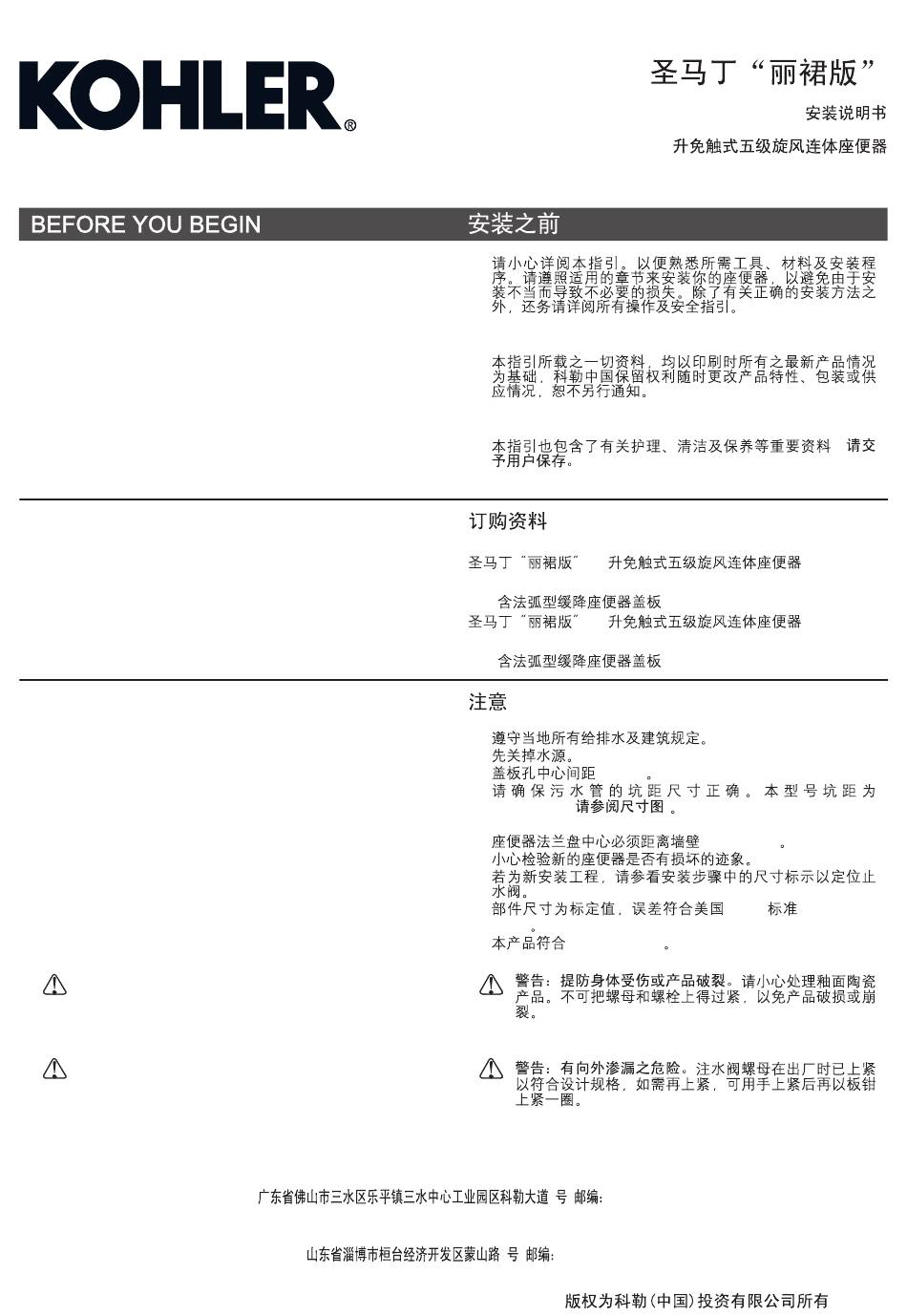

Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
·
All information in these instructions is based upon the
latest product information available at the time of
publication. Kohler China reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
·
These instructions contain important care, cleaning, and
warranty information -
consumer
.
ORDERING INFORMATION
SAN MARTINE 4.8L Touchless Skirted Class Five One-Piece
Toilet 305mm ....................................................K-5503T-TFC1
Includes French Curve Quiet-close Toilet Seat .......K-4713T
SAN MARTINE 4.8L Touchless Skirted Class Five One-Piece
Toilet 400mm ....................................................K-5504T-TFC1
Includes French Curve Quiet-close Toilet Seat .......K-4713T
NOTES
·
Observe all local plumbing and building codes.
·
Shut off the water supply.
·
Seat post holes are on 140mm centers.
·
Ensure that the new drain has the correct roughing-in
dimension. This toilet has a 305/400mm roughing-in
dimension.
See Roughing-in
·
Closet flange must be 305/400mm on-center from wall.
·
Carefully inspect the new fixture for any sign of damage.
·
For new construction, refer to the dimensions in
installation step for locating the shut-off valve.
·
Fixture dimensions are nominal and conform to tolerances
established by ASME Standards (A112.19.2-2013).
·
The product complies with GB 6952-2015.
WARNING: Risk of personal injury or product
damage
: Handle vitreous china products very carefully.
Vitreous china can break and chip if you overtighten
bolts and nuts.
WARNING: Risk of external leakage
nut has been factory-tightened to design specifications.
If re-tightening is required, wrench tighten one turn
past finger tight .
No.2 KOHLER ROAD, SANSHUI CENTRAL INDUSTRIAL PARK, LEPING TOWN, SANSHUI DIST., FOSHAN, GUANGDONG, PRC POST CODE 528137
8# MENGSHAN RD, ECONOMIC DEVELOPMENT ZONE OF HUANTAI, ZIBO, SHANDONG, CHINA POST CODE: 256410
1293406-T01-A
please leave instructions for the
.
. The fill valve
SAN MARTINE
4.8L TOUCHLESS SKIRTED CLASS FIVE ONE-PIECE TOILET
·
·
·
·
305mm..............................................................K-5503T-TFC1
400mm..............................................................K-5504T-TFC1
·
·
·
·
305/400mm(
·
·
·
·
2013)
·
GB 6952-2015
2
8
256410
©
Copyright Kohler China Investment Co., Ltd. 2016
©
-1-
INSTALLATION INSTRUCTIOINS
4.8
S-TRAP 305mm K-5503T-TFC1
S-TRAP 400mm K-5504T-TFC1
4.8
.....................................K-4713T
4.8
.....................................K-4713T
140mm
)
305/400mm
ASME
528137
-
(A112.19.2-
2016
Advertisement
Related Manuals for Kohler SAN MARTINE K-5503T-TFC1
Summary of Contents for Kohler SAN MARTINE K-5503T-TFC1
- Page 1 If re-tightening is required, wrench tighten one turn past finger tight . No.2 KOHLER ROAD, SANSHUI CENTRAL INDUSTRIAL PARK, LEPING TOWN, SANSHUI DIST., FOSHAN, GUANGDONG, PRC POST CODE 528137 528137 8# MENGSHAN RD, ECONOMIC DEVELOPMENT ZONE OF HUANTAI, ZIBO, SHANDONG, CHINA POST CODE: 256410 256410 ©...
-
Page 2: Tools And Materials Required
TOOLS AND MATERIALS REQUIRED (Not supplied) · · 254mm 254mm (10") adjustable wrench · · 305mm 305mm (12") pipe wrench · · Metal file (file cut) · · Tape measure · · Tubing cutter · · Level · · Hacksaw ·... -
Page 3: Installation
Finished Wall FRONT OF BOWL Supply OF OUTLET Kohler reserves the right to change marked dimensions without prior notice. INSTALLATION TO REMOVE EXISTING TOILET Turn off the water supply. Flush the toilet, and use a sponge to remove the remaining water from the tank and bowl. - Page 4 TO INSTALL BOWL Drain Hole Position the template and align with drain hole. Mark down the position of foot and 5 holes. Fig.#4 Drill holes on ground with the drill of 10mm 10mm (3/8"), then insert anchor to holes. CAUTION: Please make sure There is no water pipe or spool under 10mm the 5 holes to be drilled.
- Page 5 Carefully align and lower the bowl. Apply weight to the bowl rim to let the outlet insert into plastic trap. Outlet Plastic Trap Fig.#9 Carefully thread the screws into the brackets, until toilet is secure. Alternately tighten left and right sides to prevent pulling the toilet off center.
-
Page 6: Water Level
Install the tank lid and the seat. Use the supplied hardware pack for seat. Periodically check for leaks for several days following the installation. Fig.#13 FILL FLOAT WITH BALLAST Test flush the toilet. Periodically check all connections for leaks for several days following installation. - Page 7 To elevate water level: Rotate screw clockwise and raise float to the desired water level. Elevate water cup to a proper position as well. (Refer to float adjustment instructions.) Fig.#15c Fasten the snap along "CLOSE" CLOSE direction. SCALE Fig.#15d Screw Float adjustment instructions: Make G 2-4mm sure the height of surface E is 2-4mm...
- Page 8 A. Partially close the water supply shut-off valve if the water pressure to the toilet is too tank is filling. high. Check the toilet performance following any such adjustment. B. Remove dirt or obstructions from the valve head. Flush the lines. IMPORTANT: Use only genuine Kohler parts as shown to avoid property damage. 1293406-T01-A...
-
Page 9: Consumer Responsibilities
CAUTION: Don t use any cement while installing the toilet. Heat expansion of the toilet may damage the feet of the toilet. Kohler will not be responsible for any damage because of using cement. WARNING: Risk of product damage. Do not throw into the toilet what is easy to block it, such as newspaper, paper pilch, sanitary towel.
