Summary of Contents for Kohler K-8423A-0

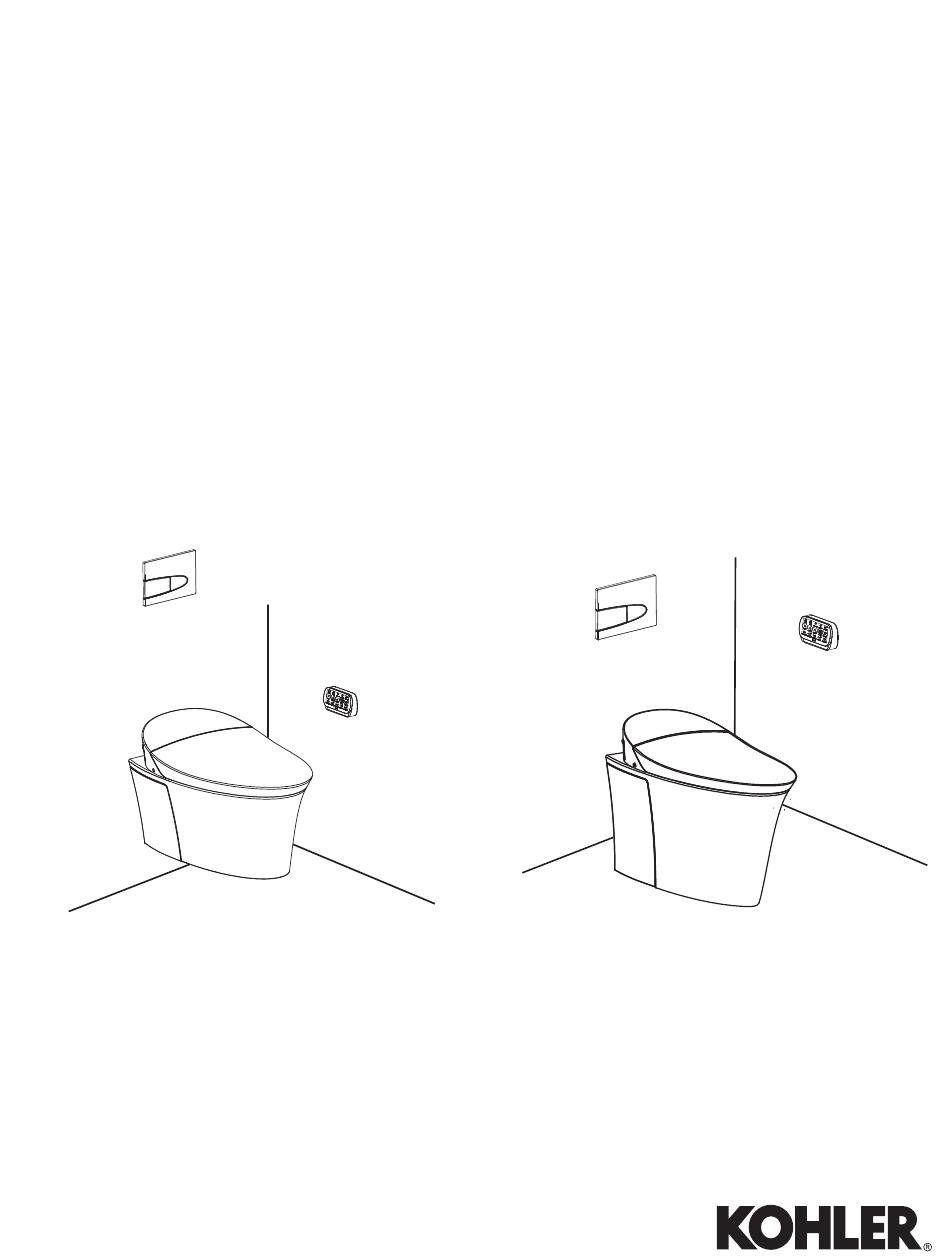

- Page 1 Homeowners Guide Veil Intelligent Toilet Wall Hung: K-5402A-0 Wall Faced: K-8423A-0 Veil Wall Hung Veil Wall Faced 1274372-A05-C May 2018...
-
Page 2: Cautions And Warnings
Use this appliance only for its intended purpose as described in the manual. Do not use attachments not recommended by Kohler Co. To prevent product from damage, do not lean on cover when using this appliance. - Page 3 Please use the water supply hose assemblies and tee valve components accompanying the new product. The old hose assemblies and tee valve components shall not be used again. Never let children play with this appliance. 1274372-A05-C May 2018 Kohler Co.
-
Page 4: Specification
Side panel 6 function keys Seated inspection Capacitor detection Other Night light 2 blue LED light functions Auto Lid OPEN/CLOSE Microwave detection Manual flush Able to operate when power is off In-wall tank dimension (L*W*D) 1190mmX478mmX88mm 1274372-A05-C May 2018 Kohler Co. - Page 5 Thank you for choosing Kohler. Kohler craftsmanship offers you a rare combination of proven performance and graceful sophistication that will satisfy you for years to come. The dependability and beauty of your Kohler product will surpass your highest expectations. We’re very proud of our products here at Kohler and we know you will be too.
- Page 6 Press this button to enter spiral wash during rear wash - spiral icon will blink. Press this button again to exit spiral wash (or press “STOP” button to turn off) - spiral icon will stop blinking. 1274372-A05-C May 2018 Kohler Co.
- Page 7 Stop Function • Whenever pressing and holding button, remote shall enter stop mode. Remote Setting Guide Cover Seat Flush-eco Flush-full Seat temp Stop Front Rear Dryer Clean Water temp Messagep Spiral Wand Pressure 1274372-A05-C May 2018 Kohler Co.
- Page 8 Place remote back on docking station after each use. • Avoid dropping or rough handling of the remote. Guarding function: the remote can be locked with docking station. Refer to the instruction manual for this specific method. • 1274372-A05-C May 2018 Kohler Co.
- Page 9 Rear wash: flush function: ON Water temp: mid Auto UV function: ON Water flow: mid E-water function: ON Washing position: 3rd dial Deodorizing: ON Spiral： Water temp: mid Water flow: mid Washing position: 3rd dial 1274372-A05-C May 2018 Kohler Co.
- Page 10 OPEN/CLOSE seat by remote Press seat OPEN/CLOSE button on remote when unseated, and seat will perform corresponding OPEN/CLOSE function. (For details refer to remote button sketch). Invalid operation when pressing button on remote under seated status. 1274372-A05-C May 2018 Kohler Co.
- Page 11 When the cover is open and the user is seated, the toilet will automatically flush when the user leaves the toilet or is unseated for a period of time. The cover will close after about 2 minutes of disuse. 11 12 2min 1274372-A05-C May 2018 Kohler Co.
- Page 12 D. Flush by manual pressing When power is OFF, auto flush is deactivated. Press manual flush button on flush control board: Flush Full button Left button: flush full Right button: flush ECO (half flush) Flush ECO button 1274372-A05-C May 2018 Kohler Co.
- Page 13 E-water function is used to sterilize nozzle by E-water. Toilet shall activate E-water sterilization function after user completes front wash, rear wash or spiral wash etc. E-water sterilization function with automatically activate every 8 hrs when toilet is not in use. 1274372-A05-C May 2018 Kohler Co.
- Page 14 Refer to page 8 for setting the energy saving feature. Service and Cleaning A) Regular clean For best results, keep the following in mind when caring for your KOHLER product: IMPORTANT! Do not rinse cover directly (including remote). • – always test your cleaning solution on an inconspicuous area before applying to the entire surface.
- Page 15 Immerse nozzle tip into cleaning solution for 2 hours soft-bristled brush. Manually clean it with a Mount nozzle tip back to original position along the dismantle direction Check nozzle clean function when power is ON 1274372-A05-C May 2018 Kohler Co.
- Page 16 Please follow the steps specified in installation manual. Remove control board. Tighten Remove supporting board. Remove water repelling board. Screw valve switch to turn off water supply. Unscrew Locknut filter locknut as shown and clean with water. Reinstall filter screen after clean. 1274372-A05-C May 2018 Kohler Co.
- Page 17 After exchanging deodorizer block, re-install back to the toilet. Deodorizer block Deodorizer block bracket Note: When taking deodorizer block off, please do not insert finger or other objects into deodorizer block cavity. This may damage the fan or other components. 1274372-A05-C May 2018 Kohler Co.
- Page 18 Please flush several times after long idle times to ensure the cleanness of internal pipelines. Please remove battery from docking station when expecting to not to use system for a long time. 1274372-A05-C May 2018 Kohler Co.
-
Page 19: Troubleshooting
TROUBLE SHOOTING This troubleshooting guide is for general aid only. A Kohler Authorized Service Representative should correct any electrical problems. For warranty service, contact your dealer or wholesale distributor. Symptoms Probable Causes Recommended Action A. Wait until the power is restored. -
Page 20: Contact And Warranty Information
New Zealand www.kohler.co.nz CALL US FOR HELP NEW ZEALAND AUSTRALIA KOHLER NZ LTD KOHLER CO. Free Ph: 0800 564 537 (0800 KOHLER) Free Ph: 1 800 KOHLER Free Fax: 0800 664 488 (1 800 564 537) www.kohler.co.nz www.kohler.com.au 1274372-A05-C May 2018...
