Item # 1001 215 082
Model # FRS60696AS-ST

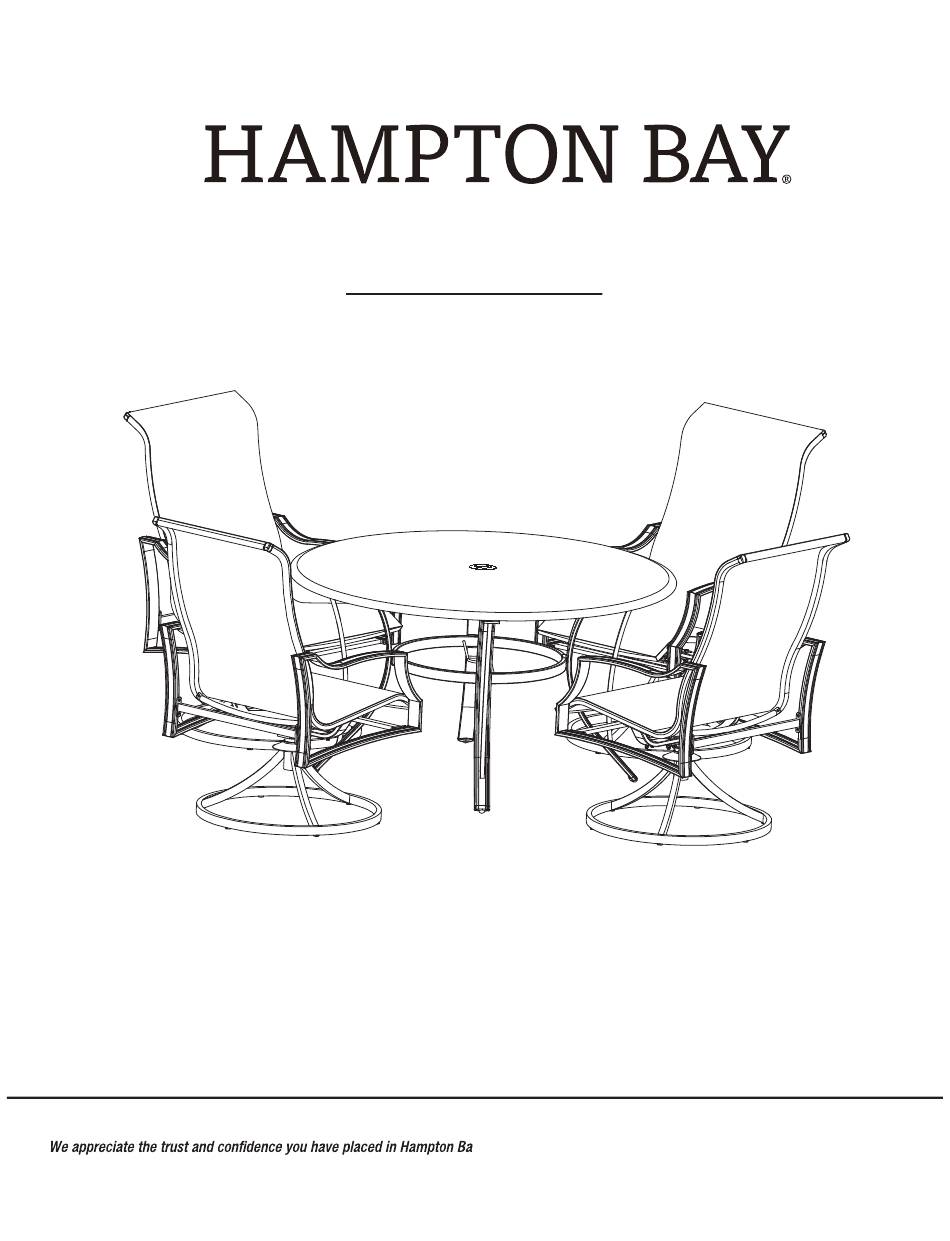

USE AND CARE GUIDE
STATESVILLE 5-PIECE STEEL DINING SLING SWIVAL SET
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HOMEDEPOT.CA
THANK YOU
y through the purchase of this dining set. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1001 215 082 and is the answer not in the manual?

Questions and answers

Related Manuals for HAMPTON BAY 1001 215 082

Summary of Contents for HAMPTON BAY 1001 215 082

  • Page 1 Item # 1001 215 082 Model # FRS60696AS-ST USE AND CARE GUIDE STATESVILLE 5-PIECE STEEL DINING SLING SWIVAL SET Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HOMEDEPOT.CA...

  • Page 2: Table Of Contents

    Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Important Safety Instructions ........2 Planning Assembly ..............3 Hardware Included ..............3 Save These Instructions ............2 Chair Package Contents ............4 Read All Instructions Before Use ..........2 Table Package Contents ............5 Warranty ................

  • Page 3: Warranty

    Warranty 2 YEAR FRAME LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for two years . WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover s warranty.

  • Page 4: Chair Package Contents

    Pre-Assembly (continued) CHAIR PACKAGE CONTENTS Part Description Quantity Chair bucket Left arm Right arm Support bar Connection bar Swivel base...
  • Page 5 Pre-Assembly (continued) TABLE PACKAGE CONTENT S Part Description Quantity Table rim Leg connector Table leg Glass HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.

  • Page 6: Chair Assembly

    Chair Assembly CONNECTING THE SUPPORT BAR TO THE CHAIR BUCKET Place the chair bucket (A) upside down on a soft surface. Attach the support bar (D) to the bottom of the chair bucket (A) using M8x20 combination bolts (DD). NOTE : Loosely tighten all bolts using the wrench (FF).
  • Page 7 Chair Assembly (continued) CONNECTING THE RIGHT ARM TO THE CHAIR BUCKET Attach the right arm (C) to the chair bucket (A) using M6x30 combination bolts (AA). Do not fully tighten the bolts at this step. NOTE : Loosely tighten all the bolts using the hex wrench (EE). HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 8 Chair Assembly (continued) CONNECTING THE LEFT ARM TO THE CHAIR BUCKET Repeat step 2 to attach the left arm (B) to the chair bucket (A). NOTE : Loosely tighten all the bolts using the hex wrench (EE).
  • Page 9 Chair Assembly (continued) CONNECTING THE CONNECTION BARS TO THE FRONT AND THE BACK OF THE ARMS Attach the connection bar (E) to the front of the left and the right arms (B & C) using M6x15 combination bolts (CC). Attach the connection bar (E) to the back of the left and the right arms (B & C) using M6x15 combination bolts (CC). Once all of the bolts are in place, fully tighten the bolts using the hex wrench (EE) and wrench (FF).
  • Page 10 Chair Assembly (continued) INSERTING THE SUPPORT BAR INTO THE SWIVEL BASE Turn the chair right side up. Insert the support bar (E) into the swivel base (F).
  • Page 11 Chair Assembly (continued) CHECKING THE CHAIRS Ensure all connections are secure before use. HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 12 Table Assembly CONNECTING THE TABLE LEGS TO THE TABLE RIM Place the table rim (G) upside down on a soft surface. Attach the table legs (I) to the table rim (G) using M6x15 combination bolts (CC). NOTE : Loosely tighten all the bolts using the hex wrench (EE).
  • Page 13 Table Assembly (continued) ATTACHING THE LEG CONNECTOR TO THE TABLE LEGS Attach the leg connector (H) to the table legs (I) using M6x25 combination bolts (BB). Do not fully tighten the bolts at this step. NOTE : Loosely tighten all the bolts using the hex wrench (EE). HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.

  • Page 14: Care And Cleaning

    Table Assembly (continued) TIGHTENING THE BOLTS Once all of the bolts are in place, fully tighten the bolts. Turn the table right side up. Place the glass (J) into the table rim (G). Ensure all connections are secure before use. Care and Cleaning For best results, clean the frame with a damp cloth and dry thoroughly.
  • Page 15 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HOMEDEPOT.CA Retain this manual for future use. Factory chair ID # FRS60696AS...
