Item #1002 665 130 / 1002 563 390
1002 563 392
1004 497 943 / 1004 497 987
Model #FG-TUL5PCCM
FG-TUL5PCCMBR
FG-TULCM2PKG / FG-TULCMB2PK
USE AND CARE GUIDE

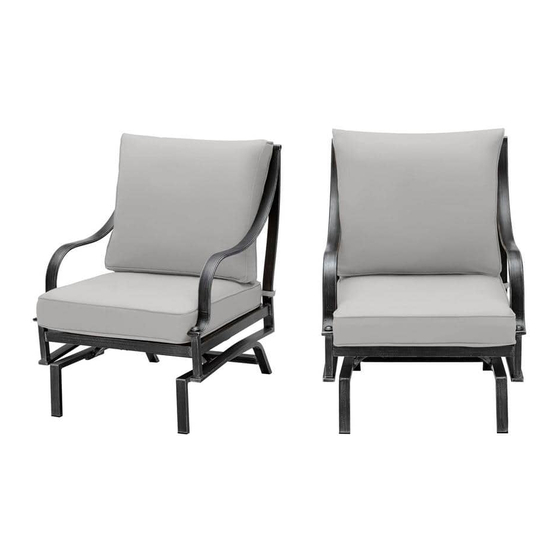

HIGHLAND POINT SPRING CLUB CHAIR
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this chair. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your
home improvement needs. Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY FG-TUL5PCCM
Summary of Contents for HAMPTON BAY FG-TUL5PCCM
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this chair. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............2 Hardware Included ............. 4 Safety Information ............2 Package Contents ............5 Warranty ................. 3 Assembly ............... 6 Care and Cleaning ............9 What is Covered ............3 What is Not Covered ..........3 Pre-Assembly .............. -
Page 3: Warranty
Residential use of this furniture is warranted for a five (5) year limited warranty period for the frame construction. The warranty is valid from the date of purchase and applies only to the original purchaser. If your Hampton Bay outdoor... -
Page 4: Pre-Assembly
Pre-Assembly PLANNING ASSEMBLY It will take one or two people about 25 minutes to complete the assembly process. PLEASE READ COMPLETE INSTRUCTION MANUAL PRIOR TO ASSEMBLY! Identify all parts packed in the carton against the parts list. Remove all protective materials and place the parts on a nonabrasive surface to avoid scratching. HARDWARE INCLUDED NOTE: Hardware not shown to actual size. -
Page 5: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Seat frame Back frame Right arm frame Left arm frame Base frame Seat cushion Back cushion HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance. -
Page 6: Assembly
Assembly ATTACHING THE SEAT ATTACHING THE LEFT AND FRAME TO THE BACK FRAME RIGHT ARM □ Remove all the protective material carefully. Avoid □ Loosely attach the Left Arm Frame (D) to the Seat Frame (A) using the M6x30 Hex Bolts (BB) and cutting the surface of the furniture while removing the packaging material on all components. - Page 7 Assembly (continued) ASSEMBLING THE BASE TO THE CHAIR SEAT □ Place the Chair Seat (A) on a non-abrasive flat surface. Align the holes on the support bar on the underside of the chair seat with the holes on the Spring Plates which are pre-attached to the chair base. Insert the M8x40 Hex Bolts (AA) through the d8xD16x1 Flat Washers (EE), C Clamp Plates (DD), Support Bar, Spring Plates and the...
- Page 8 Repeat steps 1-4 to assemble the other chairs. □ Below is the difference between each certified model#. Model#FG-TUL5PCCM (4pk/ctn chair with cushion skin) Model#FG-TUL5PCCMBR (4pk/ctn chair without cushion skin) Model#FG-TULCM2PKG (2pk/ctn chair with cushion skin) Model#FG-TULCMB2PK (2pk/ctn chair without cushion skin) NOTE: The hardware and parts QTY listed on this manual instruction is for 1pc chair.
-
Page 9: Care And Cleaning
Care and Cleaning Clean the furniture frame with a wet towel using a mild soap and water solution. Dry completely with a soft towel. Clean the cushions and the sling seat material with a mild solution of soap and water. . H ang cushion s to drip dry completely. It is recommended that cushions be stored in a dry area during rain and if they are not in use and in direct sunlight. - Page 10 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
