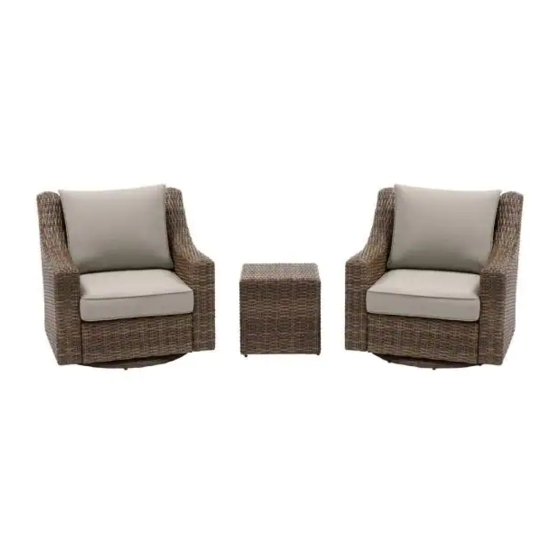

Summary of Contents for HAMPTON BAY ROCK CLIFF FRS60605IS-ST-2
Page 1
THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this seating set. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Warranty 3 YEAR FRAME AND 3 YEAR FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for three years, and offer a three year limited warranty for the fabric. WHAT IS NOT COVERED Its remains the customer’s responsibility for freight and packaging charges to and from our service center.
Pre-assembly (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity M6x20 Combination Bolt 16+1 M6x40 Combination Bolt M6x30 Countersunk Bolt Plastic Washer Hex Wrench PACKAGE CONTENTS Part Description Quantity Backrest Seat Right Arm Left Arm Back Cushion Seat Cushion Glider Base Swivel Base...
Assembly Attaching the Seat to the Backrest Place the backrest (A) on a soft surface. Attach the seat (B) to the backrest (A) using M6x40 combination bolts (BB). Do not tighten any of the bolts at this step. Attaching the Backrest and the Seat to the Right Arm Attach the backrest (A) and the seat (B) to the right arm (C) using M6x20 combination bolts (AA).
Page 6
Assembly (continued) Attaching the Backrest and the Seat to the Left Arm Attach the backrest (A) and the seat (B) to the left arm (D) using M6x20 combination bolts (AA). Do not tighten any of the bolts at this step. Attaching the Backrest to the Left Arm and the Right Arm Attach the backrest (A) to the left arm (D) and the right arm (C) using M6x20 combination bolts (AA).
Page 7
Assembly (continued) Attaching the Glider Base to the Two Arms Place the chair upside down. Place the glider base (G) through the plastic washers (DD) and attach it to the two arms (C and D). Fully tighten using M6x30 countersunk bolts (CC), as shown below. Attaching the Swivel Base to the Glider Base Attach the swivel base (H) to the glider base (G).
Assembly (continued) Checking the Chair Turn the chair right side up. Place the seat cushion (F) and the back cushion (E) to finish the chair assembly. Ensure all connections are secure before use. Care Care and Cleaning For best results, clean the frame and fabric with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate.
Page 9
Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use. For certification use only...
