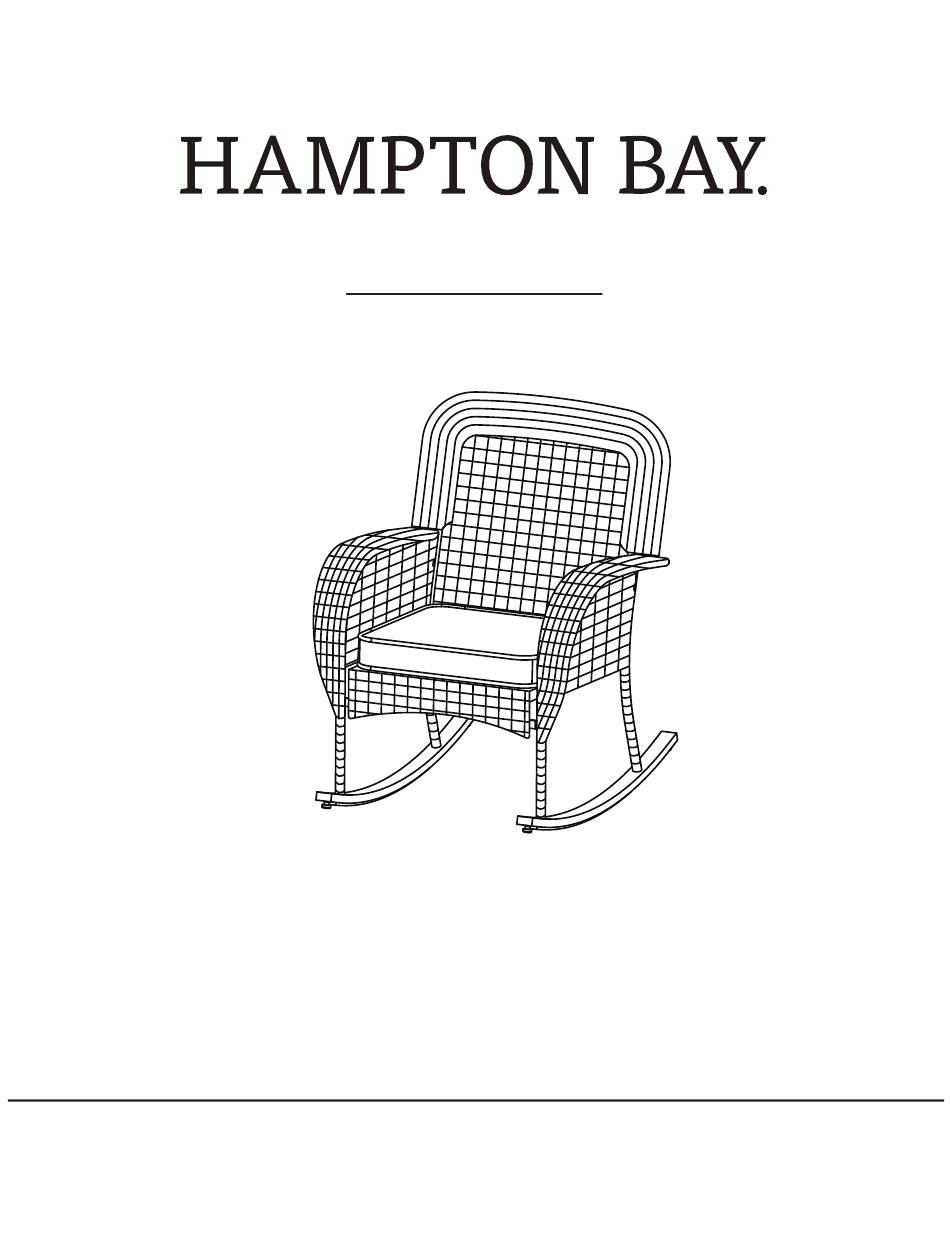

USE AND CARE GUIDE
BEACON PARK STEEL WOVEN DINING ROCKING CHAIR
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HOMEDEPOT.CA
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this chair. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HAMPTON BAY FRS80865R-BS
Summary of Contents for HAMPTON BAY FRS80865R-BS
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this chair. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Planning Assembly ..............3 Important Safety Instructions ........2 Hardware Included ..............Save These Instructions ............2 Package Contents ..............Read All Instructions Before Use ..........2 Assembly ................ -
Page 3: Warranty
Warranty 3 YEAR FRAME AND 3 YEAR FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for thress years,and a three limited warranty for the fabric. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. -
Page 4: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Right arm Left arm Seat Backrest Seat cushion... -
Page 5: Assembly
Assembly CONNECTING THE SEAT TO THE RIGHT ARM Place the right arm (A) on a soft surface. Attach the seat (C) to the right arm (A) using one M6x20 combination bolt (AA) and M6x50 combination bolts (BB). Do not fully tighten all the bolts at this step. NOTE : Loosely tighten all the bolts using the hex wrench (CC). - Page 6 Assembly (continued) ATTACHING THE BACKREST TO THE SEAT Attach the backrest (D) to the seat (C) using M6x50 combination bolts (BB). Do not fully tighten all the bolts at this step. NOTE : Loosely tighten all the bolts using the hex wrench (CC).
- Page 7 Assembly (continued) CONNECTING THE LEFT ARM TO THE SEAT Connect the left arm (B) to the seat (C) using an M6x20 combination bolt (AA) and M6x50 combination bolts (BB). Do not fully tighten all the bolts at this step. NOTE : Loosely tighten all the bolts using the hex wrench (CC). HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
- Page 8 Assembly (continued) CONNECTING THE ARMS TO THE BACKREST Turn the chair right side up. Connect the left arm (B) and the right arm (A) to the backrest (D) using M6x50 combination bolts (BB). Do not fully tighten all the bolts at this step. NOTE : Loosely tighten all the bolts using the hex wrench (CC).
-
Page 9: Care And Cleaning
Assembly (continued) CHECKING THE CHAIR Once all of the bolts are in place, fully tighten the bolts using the hex wrench (CC). Place the seat cushion (E) to nish the assembly of the chair. Ensure all connections are secure before use. Care and Cleaning For best results, clean the chair with a damp cloth and dry thoroughly. - Page 10 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HOMEDEPOT.CA Retain this manual for future use. For certification use only...
