Item #1006596151, 1006596128, 1006867804, 1006867839, 1006867795, 1007256923, 1007256922, 1007256927,
1007256924, 1007257390, 1009821299
Model #DB18, DB24, DB30, DB36, VDB12, DB18-G, DB24-G, DB30-G, DB36-G, VDB12-G, COB36
USE AND CARE GUIDE
&

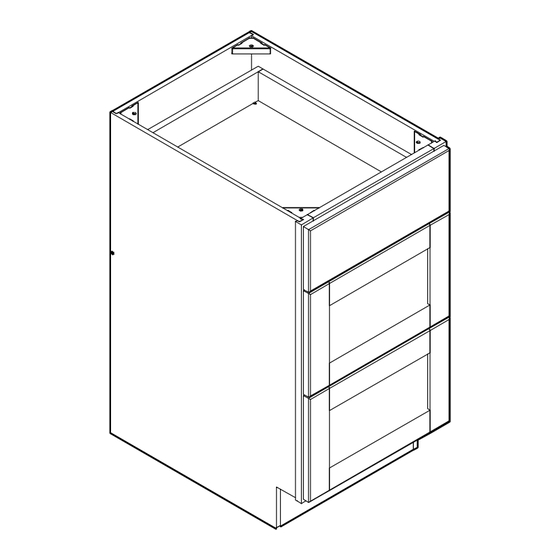

DRAWER BASE CABINET
COOKTOP BASE CABINET
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this [PRODUCT]. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your
home improvement needs. Thank you for choosing Hampton Bay!
INTERNAL USE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HAMPTON BAY DB18
Summary of Contents for HAMPTON BAY DB18
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this [PRODUCT]. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Safety Information ............2 Cabinet Assembly ............5 Warranty ..............2 Drawer Box Assembly ..........9 Pre-Assembly .............. 3 Care and Cleaning ............ 13 Before You Begin ............. 3 Tools required ............3 Hardware Included ........... 3 Package Contents ............ -
Page 3: Pre-Assembly
Pre-Assembly BEFORE YOU BEGIN Compare all parts with the Hardware Included and Package Contents sections. If any part is missing or damaged, do not assemble this product. Contact Customer Service. Assemble the cabinet on a soft surface such as carpet or the cardboard container of this product. TOOLS REQUIRED Rubber Phillips... -
Page 4: Package Contents
Pre-Assembly PACKAGE CONTENTS DRAWER BASE CABINET COOKTOP BASE CABINET Part Description Quantit Part Description Quantit Back Panel Back Panel Side Panel Side Panel Face Frame Face Frame Bottom Panel Bottom Panel Toe Kick Toe Kick Small Drawer Front Drawer Bottom Small Drawer Side Large Drawer Front Drawer Bottom... -
Page 5: Cabinet Assembly
Cabinet Assembly Attaching the posts to the panels ¨ Align 4 posts (AA) with pre-drilled holes on each of the panels and frame (A – B – C) and secure with 4 screws (BB) on each panel and frame (A – B – C). Attaching the side panels into the face frame ¨... - Page 6 Cabinet Assembly (continued) Attaching the bottom panel ¨ Slide the bottom (D) panels into grooves in the sides. ¨ Snap 4 corner locks (CC) over the posts to secure the face frame (C) and side panels (B) as shown (two corner locks (CC) on the bottom and two on the top).
- Page 7 Cabinet Assembly (continued) NOTE: If installing on a laminate countertop, orient the top corner locks (CC) in the opposite direction. Bottom corner lock assembly will be the same for all countertop types. ¨ If installing a laminate countertop, the top four corner locks (CC) should be oriented as shown below.
- Page 8 Cabinet Assembly (continued) Attaching the toe kick ¨ Slide the toe kick (E) into the grooves of the side panels (B) so that it sits flush with the bottom of the cabinet. ¨ Insert two screws (BB) into the pocket holes to secure the toe kick (E) to the sides. Securing the back and side panels ¨...
-
Page 9: Drawer Box Assembly
Drawer Box Assembly Attaching the drawer sides ¨ Place the drawer front (J) face down on a smooth surface that will not scratch or damage the face of the drawer, such as a towel or piece of cardboard (1) from the packaging. ¨... - Page 10 Drawer Box Assembly (continued) Attaching the drawer back ¨ Use a rubber mallet to tap the drawer back (I/L) into place. To fit the drawer back on, drawer sides will have to flex outwards slightly. ¨ Insert two more screws (BB) into the countersunk holes on each side. Fully tighten all four screws. Attaching the drawer glide attachments ¨...
- Page 11 Drawer Box Assembly (continued) Attaching the drawer glides ¨ Install the HH into the pre-drilled hole and secure with screws (GG) then install the drawer glides (FF) by sliding them into the drawer glide holders (HH). Pull the drawer glides (FF) out until the front reaches the face frame and secure with a screw (GG).
- Page 12 Drawer Box Assembly (continued) (OPTIONAL) Adjusting the drawer front ¨ Drawer fronts can be adjusted by turning the knobs on drawer glide attachments. Drawer fronts can be moved left, right, up, and down on each side until they are level. Attaching silicone pads ¨...
-
Page 13: Care And Cleaning
Care and Cleaning □ For normal spills, a damp cloth is sufficient. Dry the surface immediately. □ Doors can be cleaned with most general purpose household cleaners. □ Do not use caustic agents and/or abrasive scrubbers, or oven cleaners. □ Cabinets can be cleaned with a damp sponge or cloth using soapy water, or most general purpose household cleaners. - Page 14 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use. INTERNAL USE...
