Guardian DCS2 Installation Instructions Manual page 9

Assembly 03

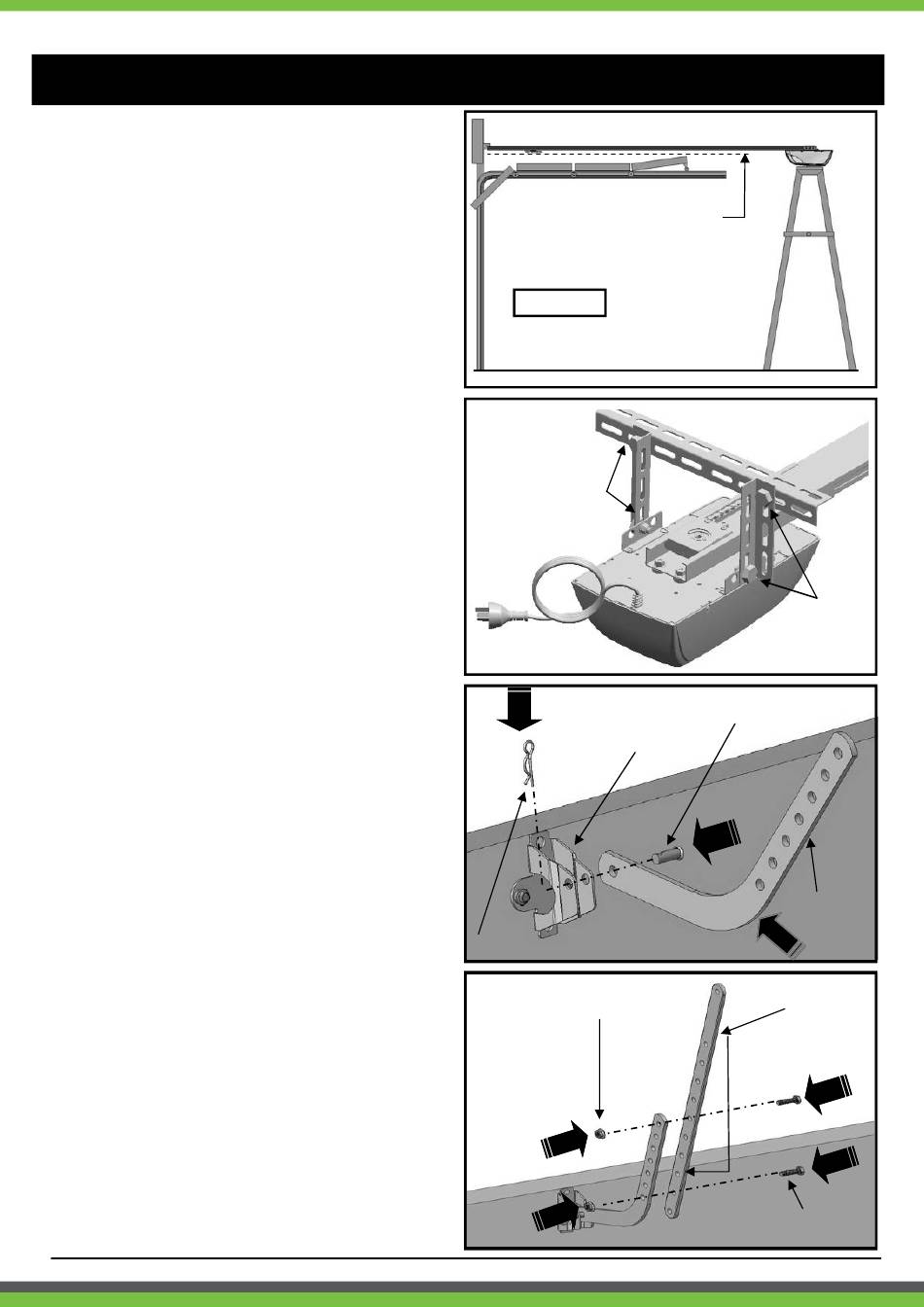

STEP 9.
Open the door to the full open position. Allow 5cm of
space between the rail and the door
STEP 10.
Assemble track to fix the opener (perforated steel angle
and hex head machine bolts not supplied)
STEP 11.
Insert curved arm into door bracket using clevis pin short.
STEP 12.
Connect straight arm and curved arm and adjust to the
required length. Fix it with hex bolts and flange nuts.
7
5cm Clearance
Full Open
Perforated Steel Angel
(Not Supplied)
3
Door Bracket
Hitch Pin
Flange Nut 5/16"-18
1
2
Hex Head
Machine Bolts
(Not Supplied)
Clevis Pin Short
2
Curved
1
Straight
1
15-20°
2
Hex Bolt 5/16"-18x1
09
10
11
12
12
