Guardian DCS2 Installation Instructions Manual page 14

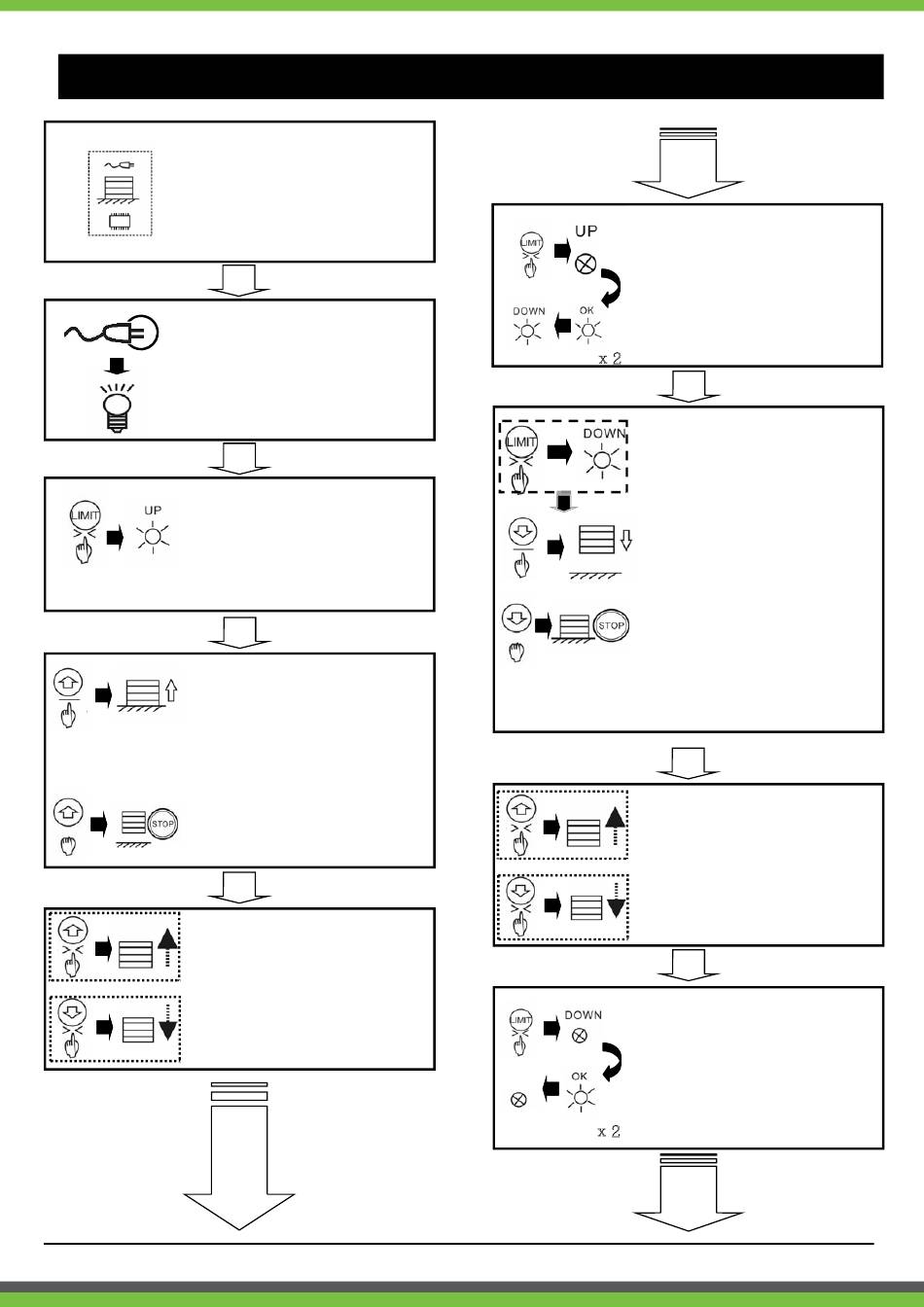

Adjustment 03
STEP1.
Door should be in closed position.
On first startup memory is blank
(limits are not pre set)
STEP2.
Plug in. Light is on. Light flashes
5 times, no pre set limits. If light
flashes
already been set.
STEP3.
Press limit button once. Up LED
is on.
STEP4. Setting "Up" Limit
Press "Up"
continuously. Door is traveling up
at half speed. When door is
approaching Up limit position,
release "Up" button. Door stops.
STEP5.
Press "Up" or "Down" to micro-
adjust
required up limit position
OR
TO
STEP6
3 times, limits have
button & hold
inch movement to
STEP7.
At required limit position. Press
limit button. OK light flashes &
LED goes out. "Up" limit setting
complete.
FLASHｘ２
STEP8. Setting "Down" limit
Press limit button twice. "down"
LED is on. Press "down" button
& hold continuously. Door is
traveling down at half speed.
When door is approaching
down limit position, release
"down" button, door stops.
STEP9.
Press "down" or "up" to micro-
adjust inch movement to required
down limit position
OR
STEP10
At required limit position. Press
Limit button. OK LED flashes.
Up & Down LED are on. Up &
OK Down limits are now set.
FLASHｘ２
TO
STEP11
.
12
